Cooling Fan - Left

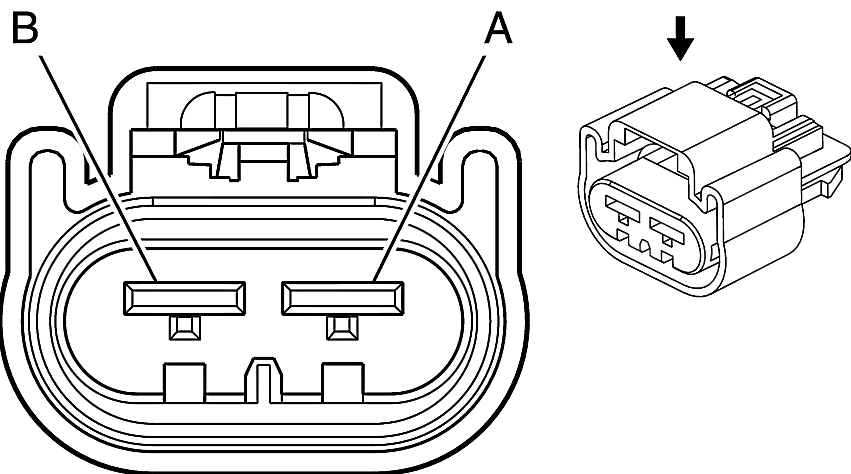

Fig 1: Cooling Fan - Left Connector End View
GM1509935Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15454358
  • Service: 88987983
  • Description: 2-Way F 630 GT (BK)
Terminal Part Information
  • Terminal/Tray: 15476168/5
  • Core/Insulation Crimp: F/3
  • Release Tool/Test Probe: 15315247/J-35616-42 (RD)
Pin Wire Circuit Function
A 5 YE 5358 Auxiliary Cooling Fan Motor Supply Voltage
B 5 L-BU 409 Cooling Fan Motor Supply Voltage
