Auxiliary Power Outlet - Console Bin

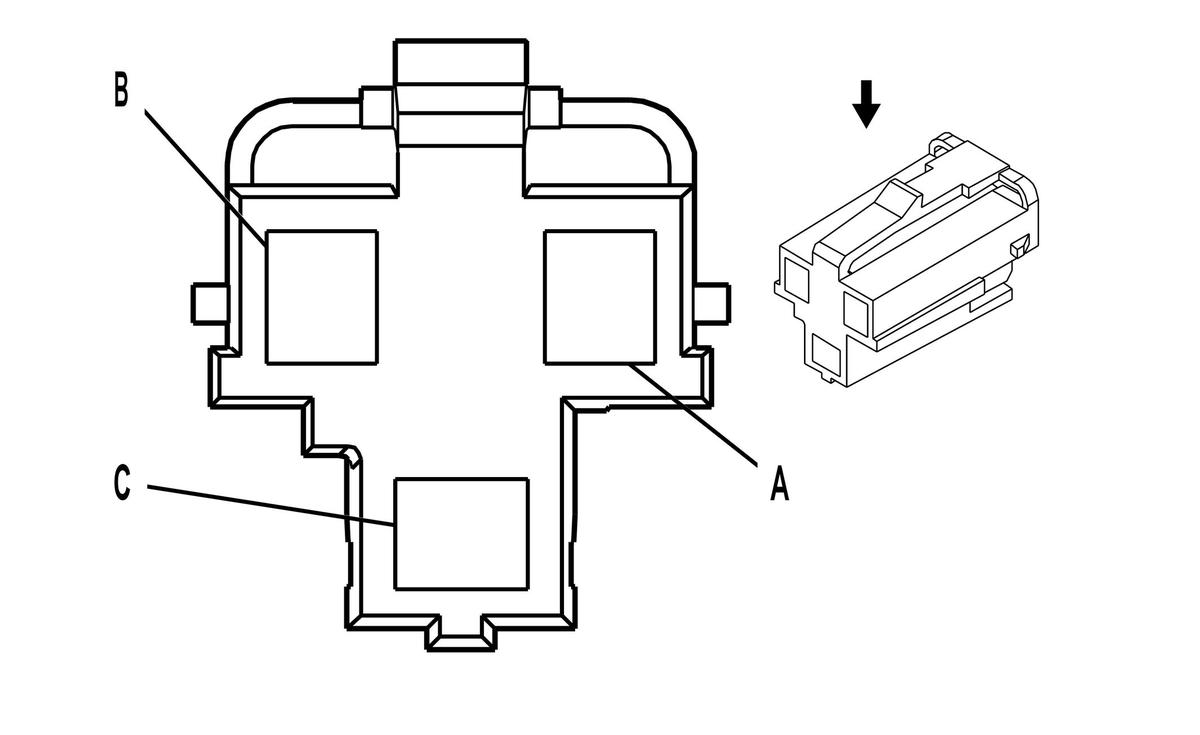

Fig 1: Auxiliary Power Outlet - Console Bin Connector End View

Courtesy of GENERAL MOTORS CORP.

Connector Part Information  OEM: 12176446 Service: See Catalog Description: 3-Way F Metri-Pack 280 Series, Flexlock (BK)

Terminal Part Information  Pins: A, C Terminal/Tray: 12110844/4 Core/Insulation Crimp: C/A Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pin	Wire	Circuit	Function
A	0.8 RD/WH	6040	Battery Positive Voltage
B	-	-	Not Used
C	0.8 BK	1050	Ground
