Auxiliary Power Outlet - Cargo

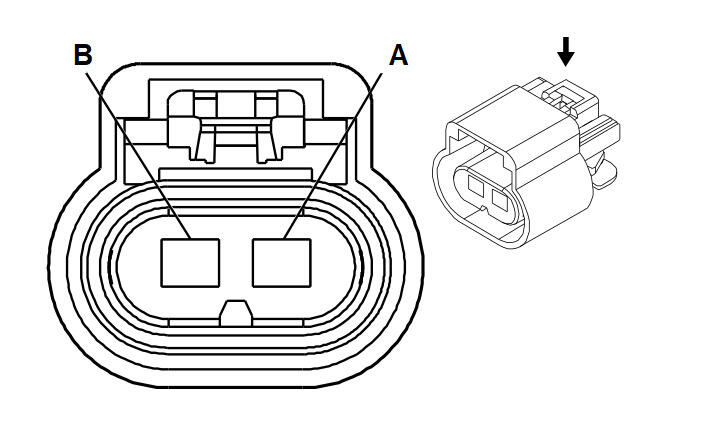

Fig 1: Auxiliary Power Outlet - Cargo Connector End View
GM603213Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13518845
  • Service: 88988942
  • Description: 2-Way F GT 280 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15304719/19
  • Core/Insulation Crimp: 2/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
A 0.8 BK 2450 Ground
A 0.8 BK 2450 Ground
B 0.8 RD/WH 1040 Battery Positive Voltage
B 0.8 RD/WH 1040 Battery Positive Voltage
