Audio Amplifier X1 (SUV/UQA)

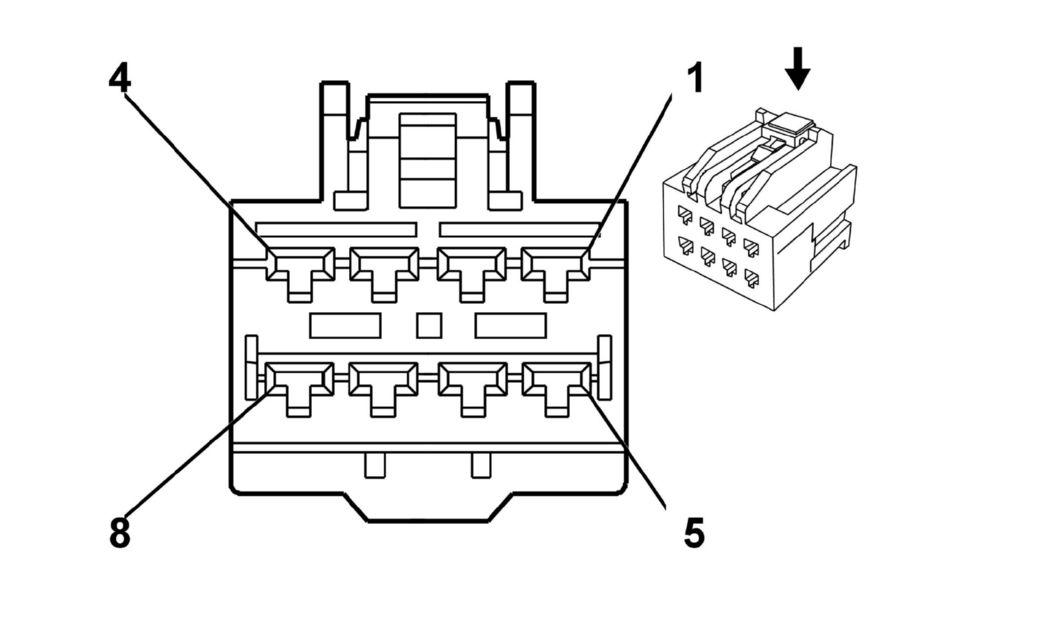

Fig 1: Audio Amplifier X1 (SUV/UQA) Connector End View
GM1664464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6098-4798
  • Service: 19115652
  • Description: 8-Way F 2.8 Series (BK)
Terminal Part Information
  • Pins: 1-3, 5-7
  • Terminal/Tray: 8100-4444/22
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-35 (VT)
  • Pins: 4, 8
  • Terminal/Tray: 8100-4445/22
  • Core/Insulation Crimp: F/D
  • Release Tool/Test Probe: 15315247/J-35616-35 (VT)
Pin Wire Circuit Function
1 0.8 GY 118 Left Front Speaker Output (-)
2 0.8 L-BU/BK 315 Right Subwoofer Speaker Output (-)
3 0.8 L-GN/BK 1794 Left Subwoofer Speaker Output (-)
4 3 RD/WH 3740 Battery Positive Voltage
5 0.8 TN 201 Left Front Speaker Output (+)
6 0.8 D-GN 1795 Right Subwoofer Speaker Output (+)
7 0.8 D-BU/WH 346 Left or Rear Subwoofer Speaker Output (+)
8 3 BK 2550 Ground
