Harness Routing Views

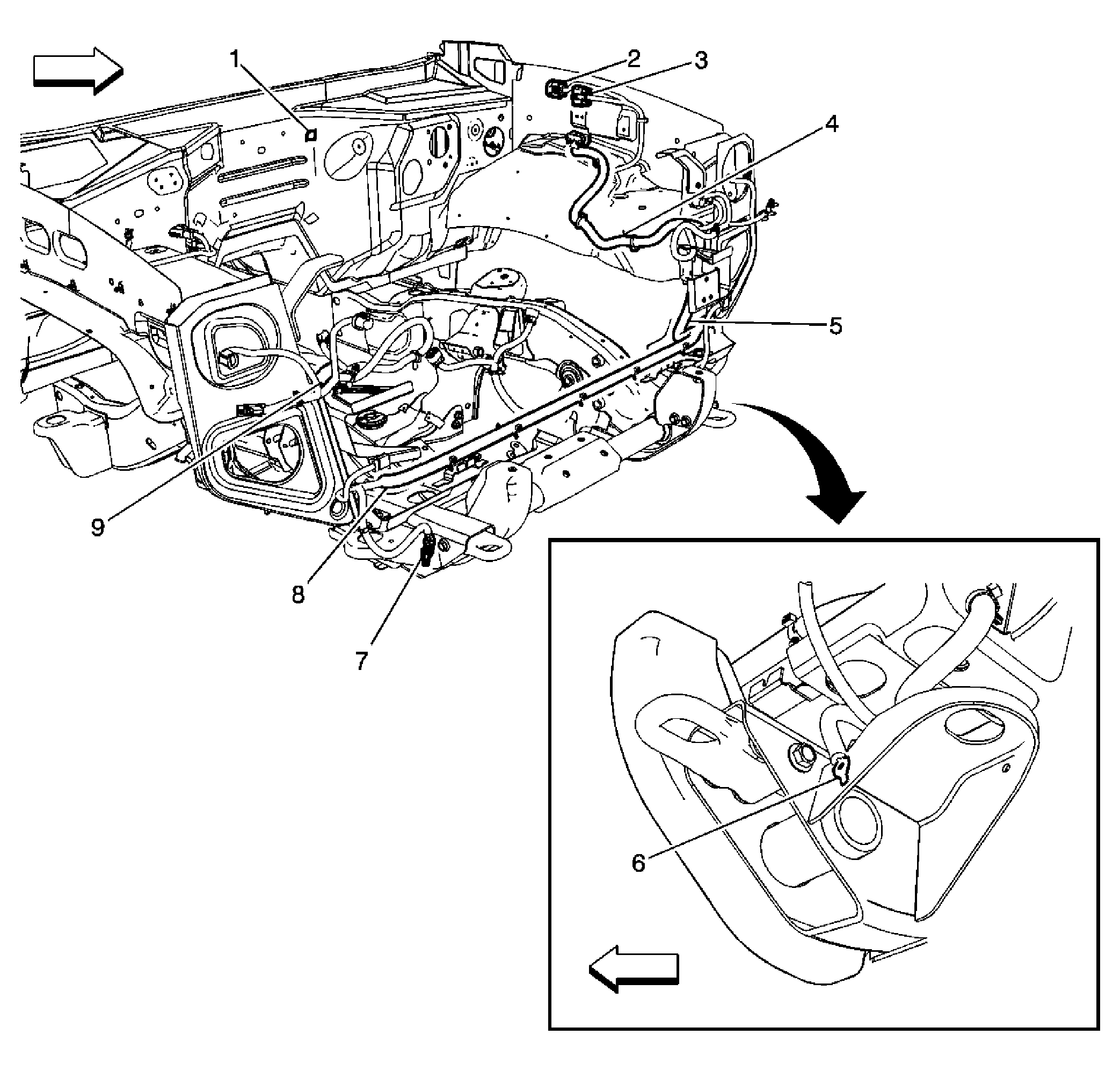

Fig 1: Forward Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X107
2	X103
3	J108
4	J100
5	G100
6	G101
7	J101
8	J107

Fig 2: Engine - Front (L92)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X100
2	X120
3	G102
4	G103

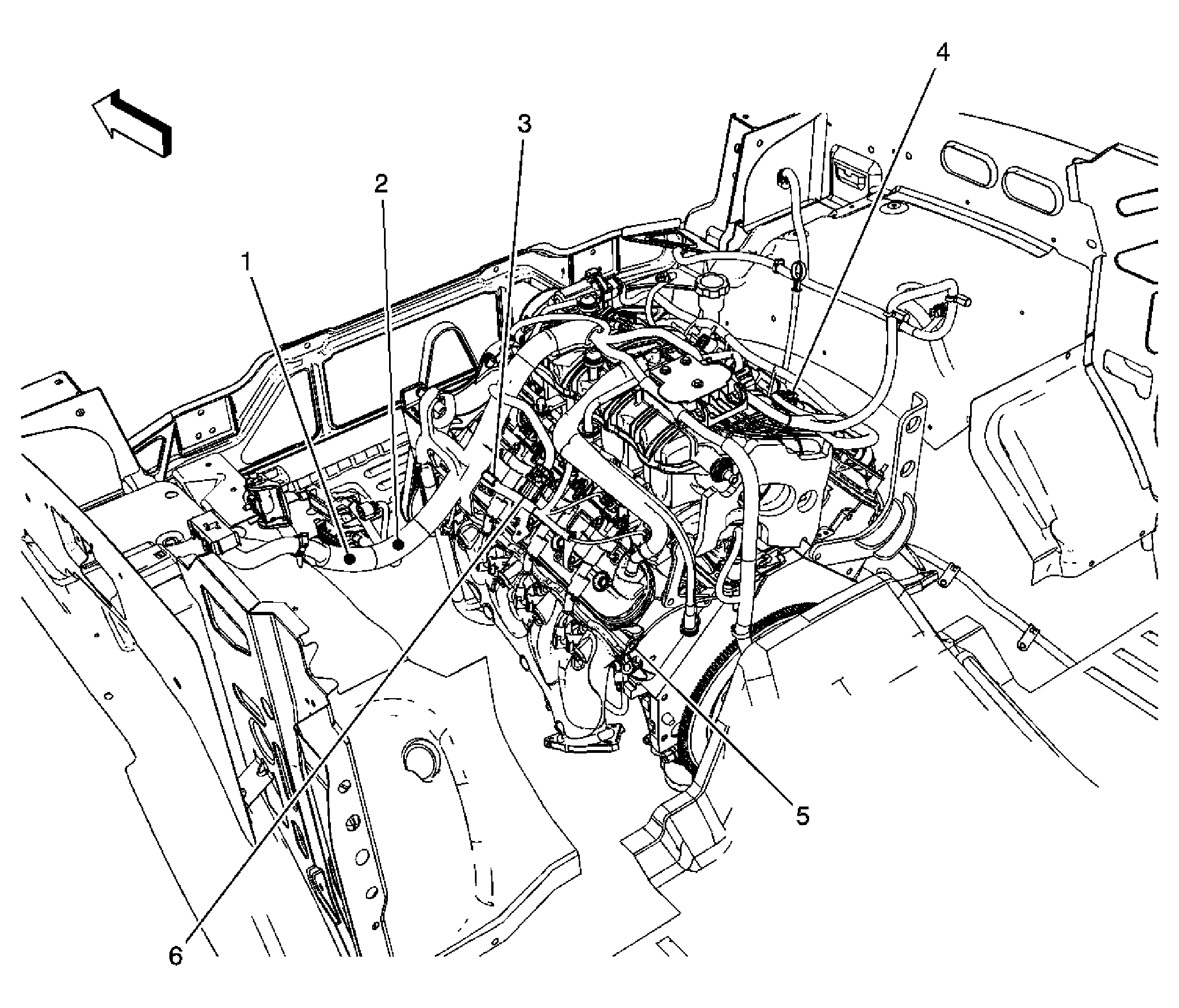

Fig 3: Engine - Left Rear (L92)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J102
2	J130
3	J103
4	X158
5	G104
6	X148

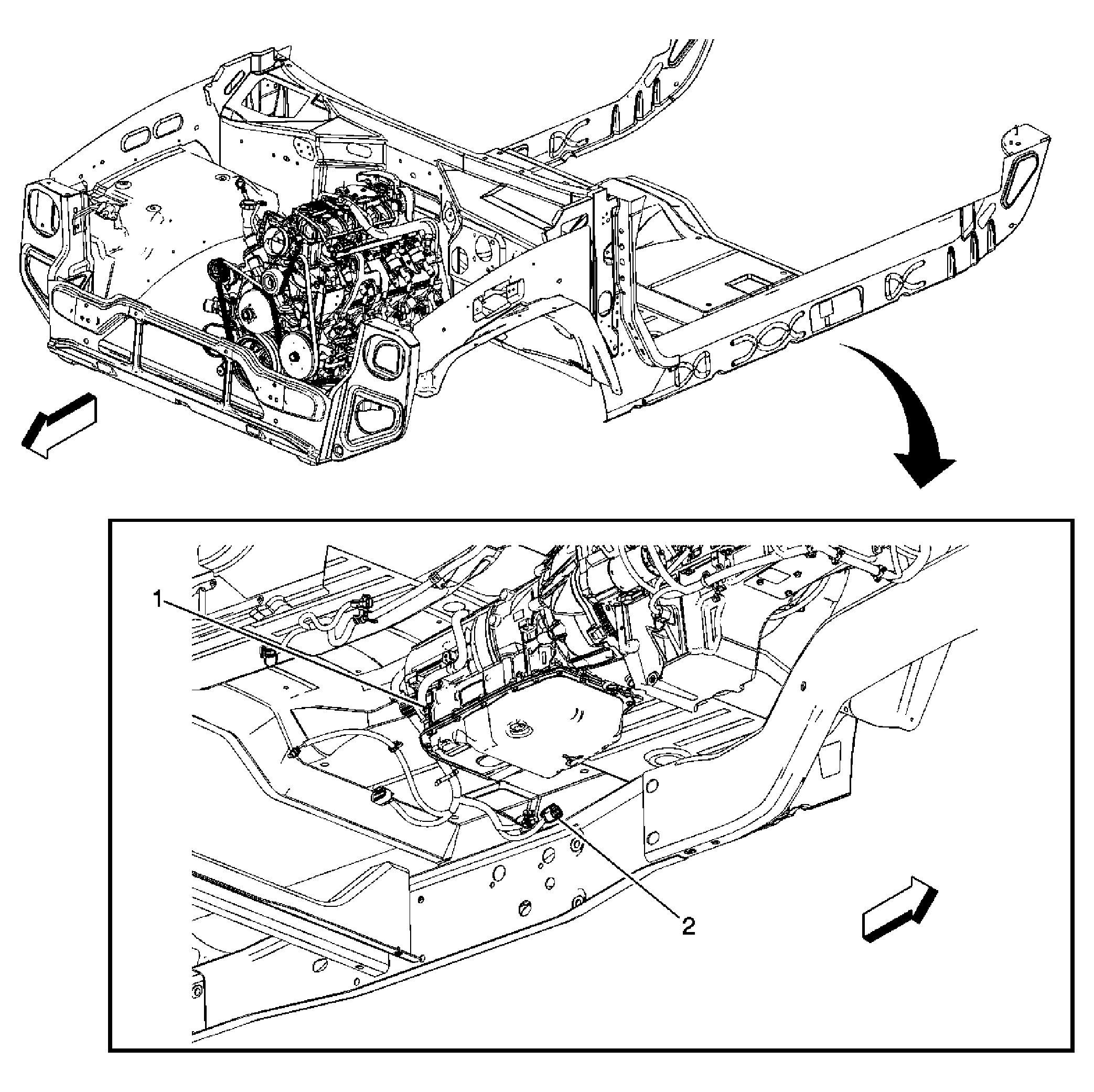

Fig 4: Engine Harness - Middle Underbody (L92/MYC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X175
2	X315

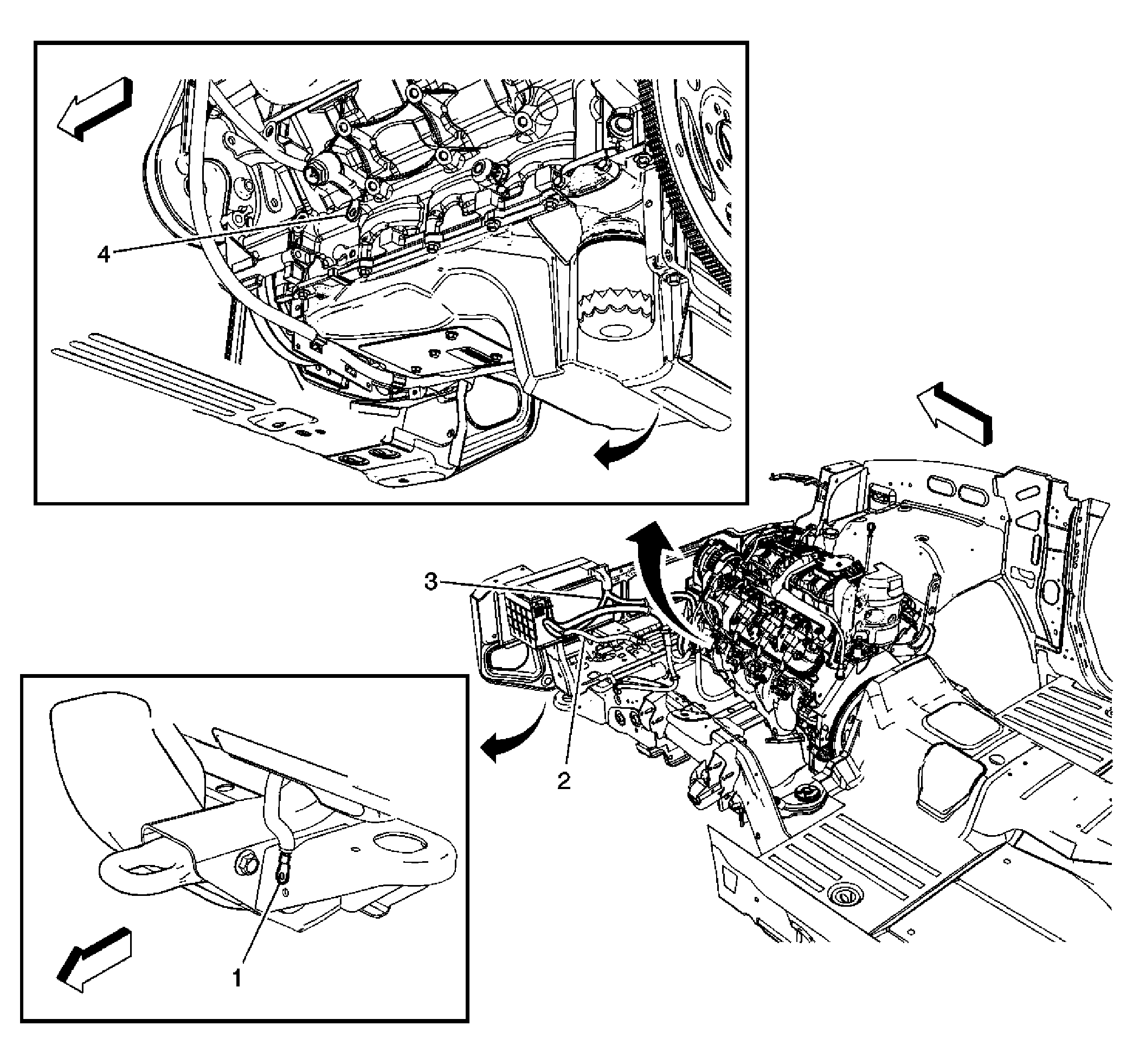

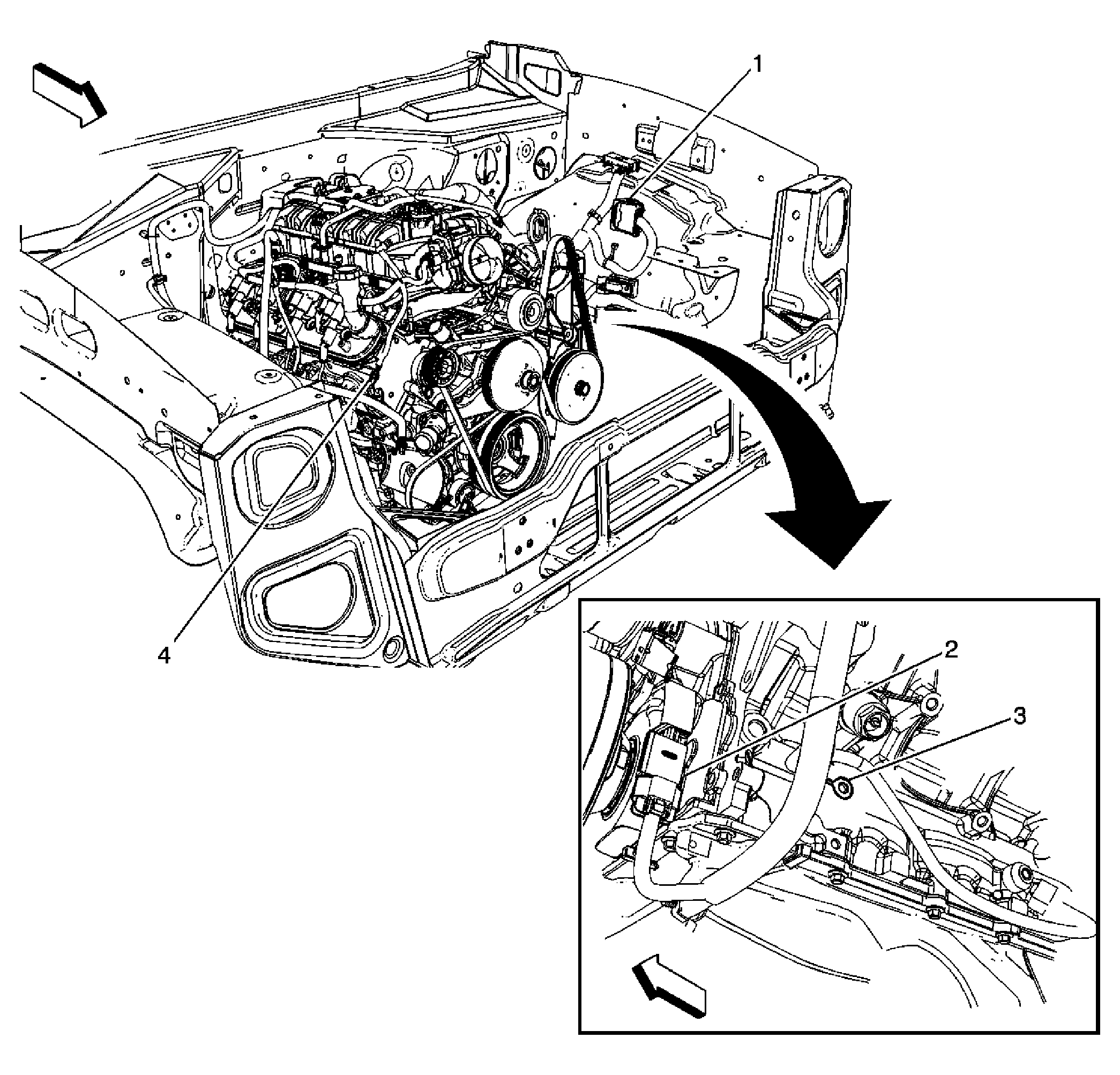

Fig 5: Engine - Start and Charge (L92)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	Battery Cable - Negative Voltage
3	Battery Cable - Positive Voltage
4	G100

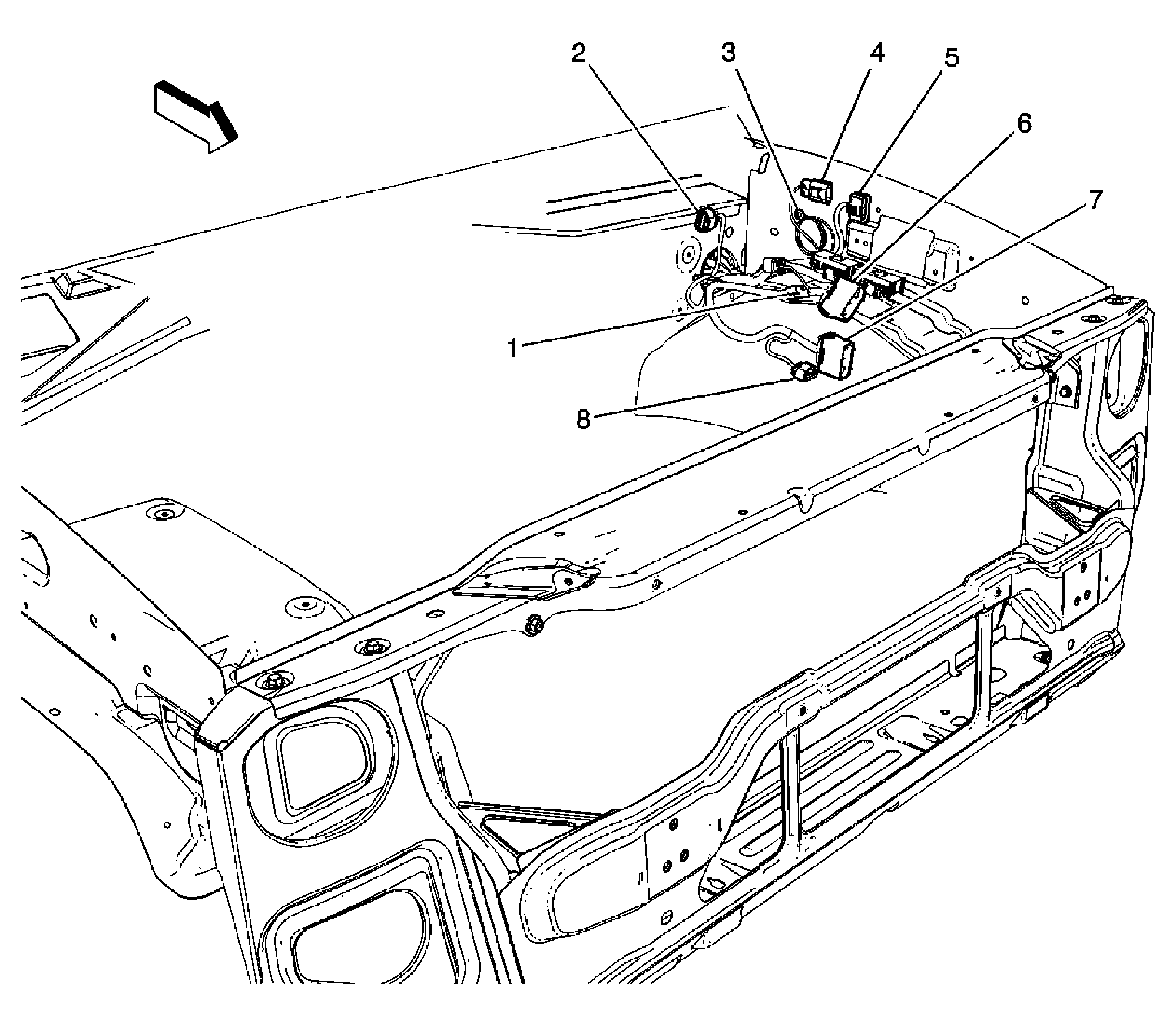

Fig 6: Instrument Panel Harness - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S (SB6799)
2	X110
3	G101
4	X107
5	X103
6	X104
7	X100
8	X111

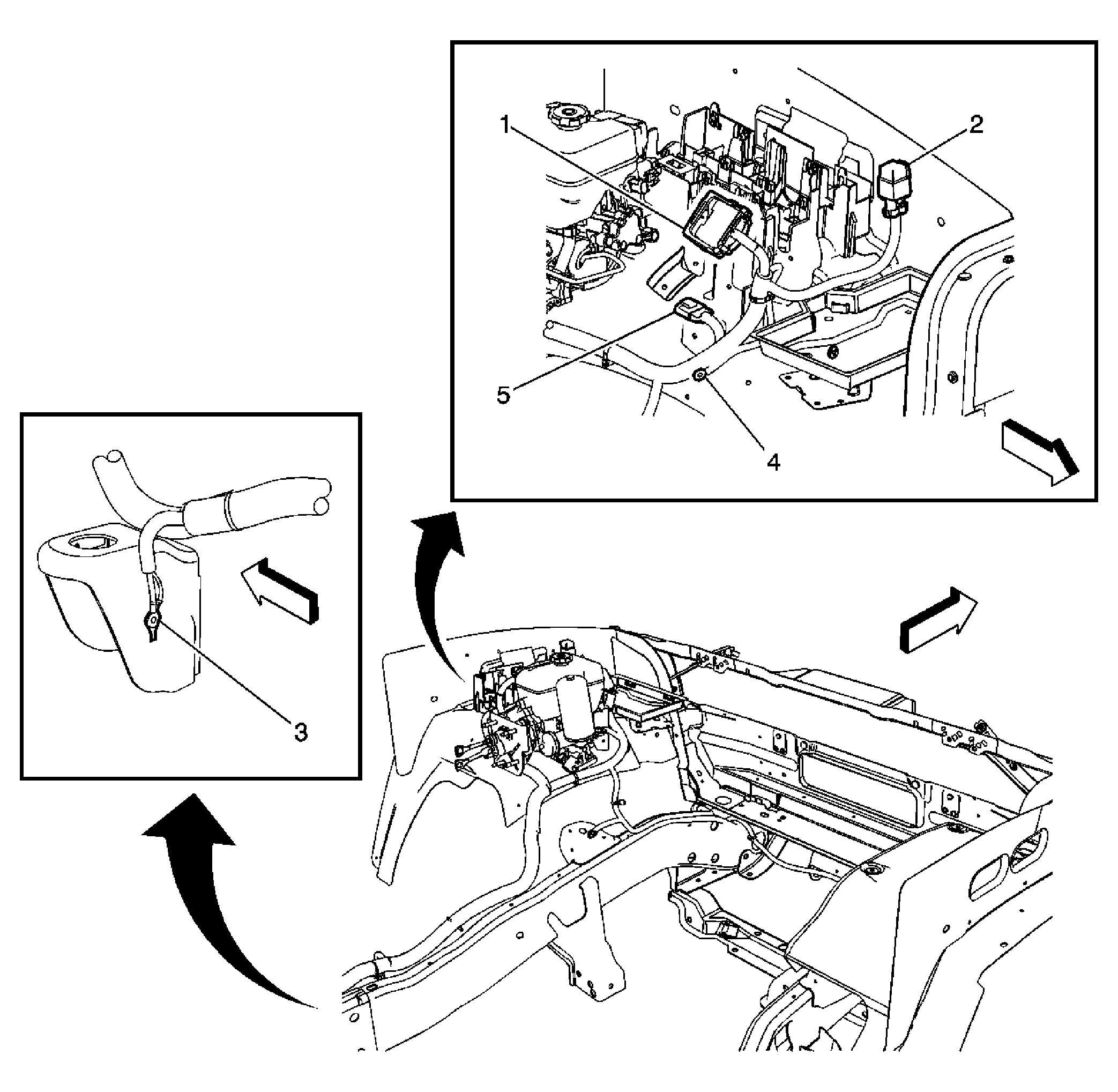

Fig 7: Chassis Harness - Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X104
2	Electronic Control Air Suspension Relay
3	G300
4	Trailer Power
5	X111

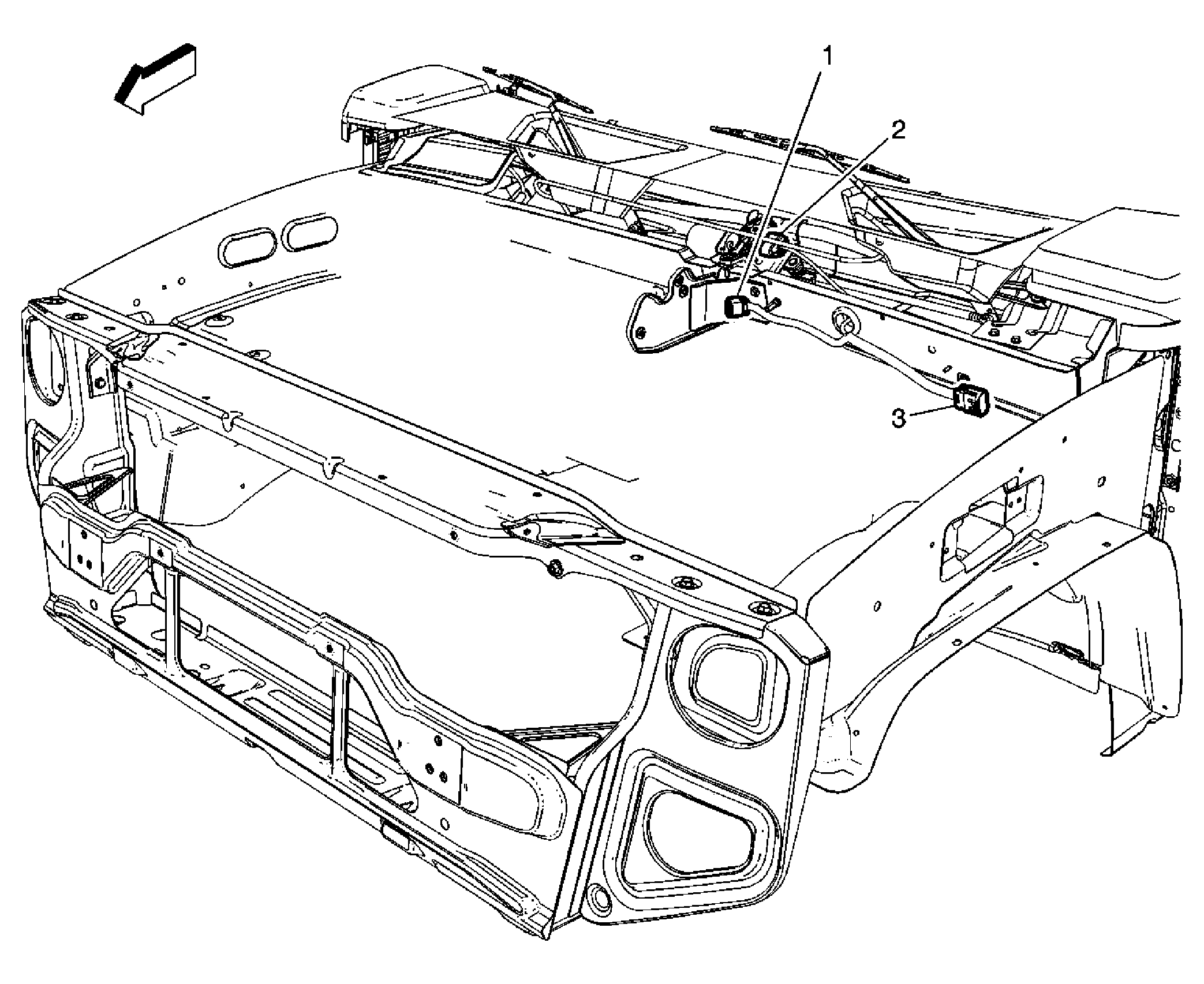

Fig 8: Wiper Extension Harness - Rear Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X109
2	X110

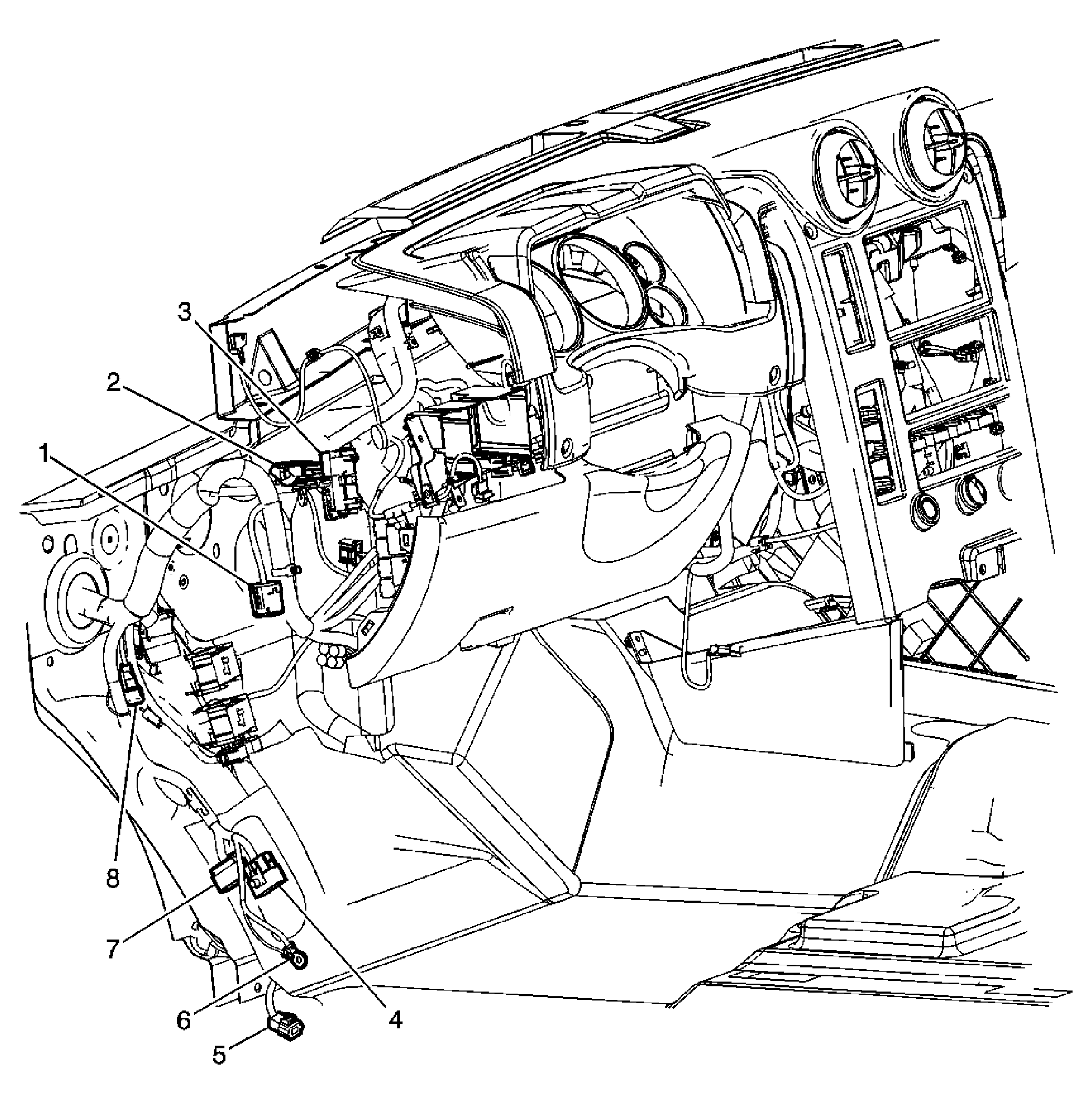

Fig 9: Instrument Panel Harness - Left Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X204
2	JX200
3	X205
4	X201
5	X200
6	G200
7	X208
8	JX202

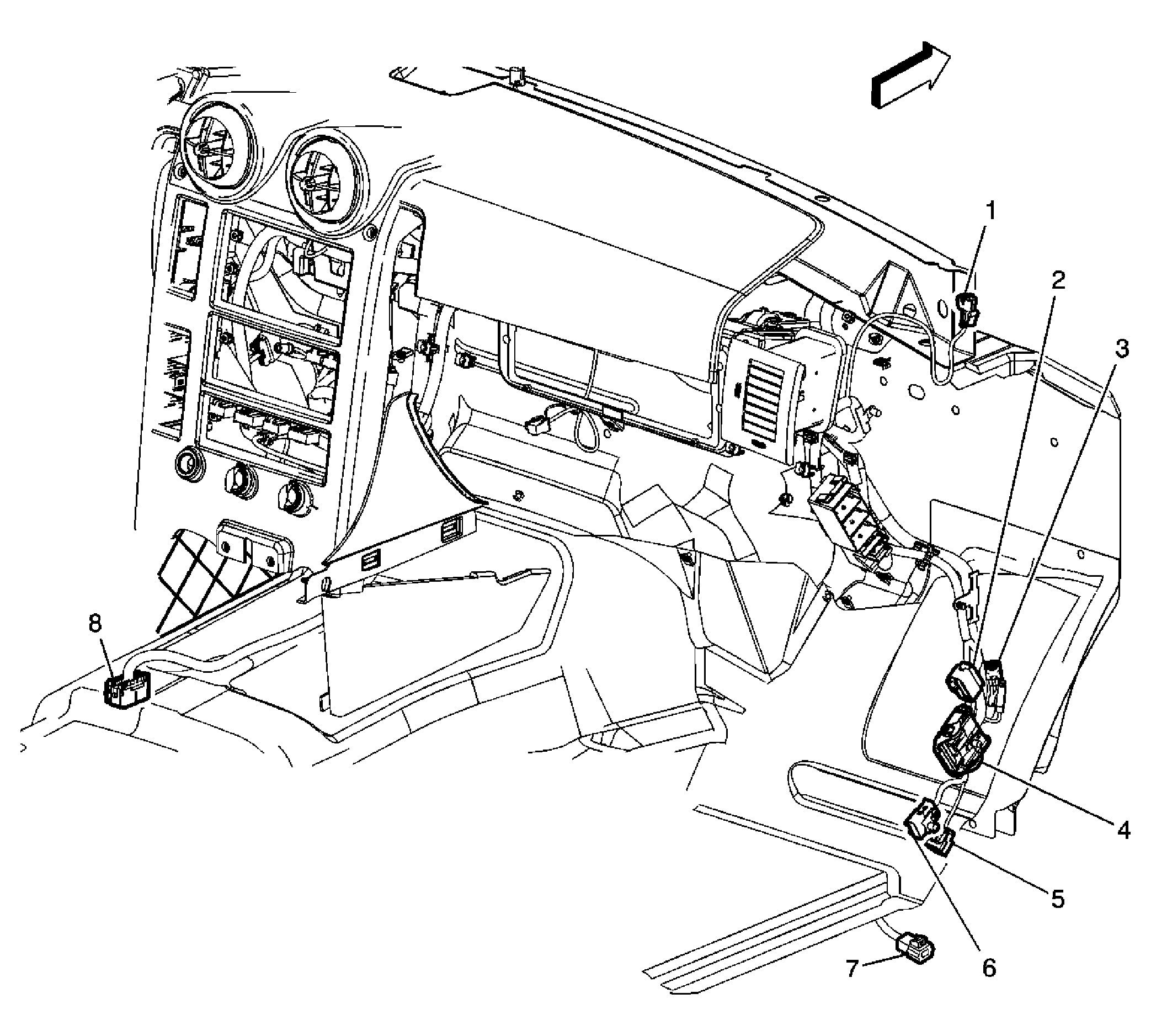

Fig 10: Instrument Panel Harness - Right Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X298
2	X235
3	X290
4	X296
5	X295
6	X350

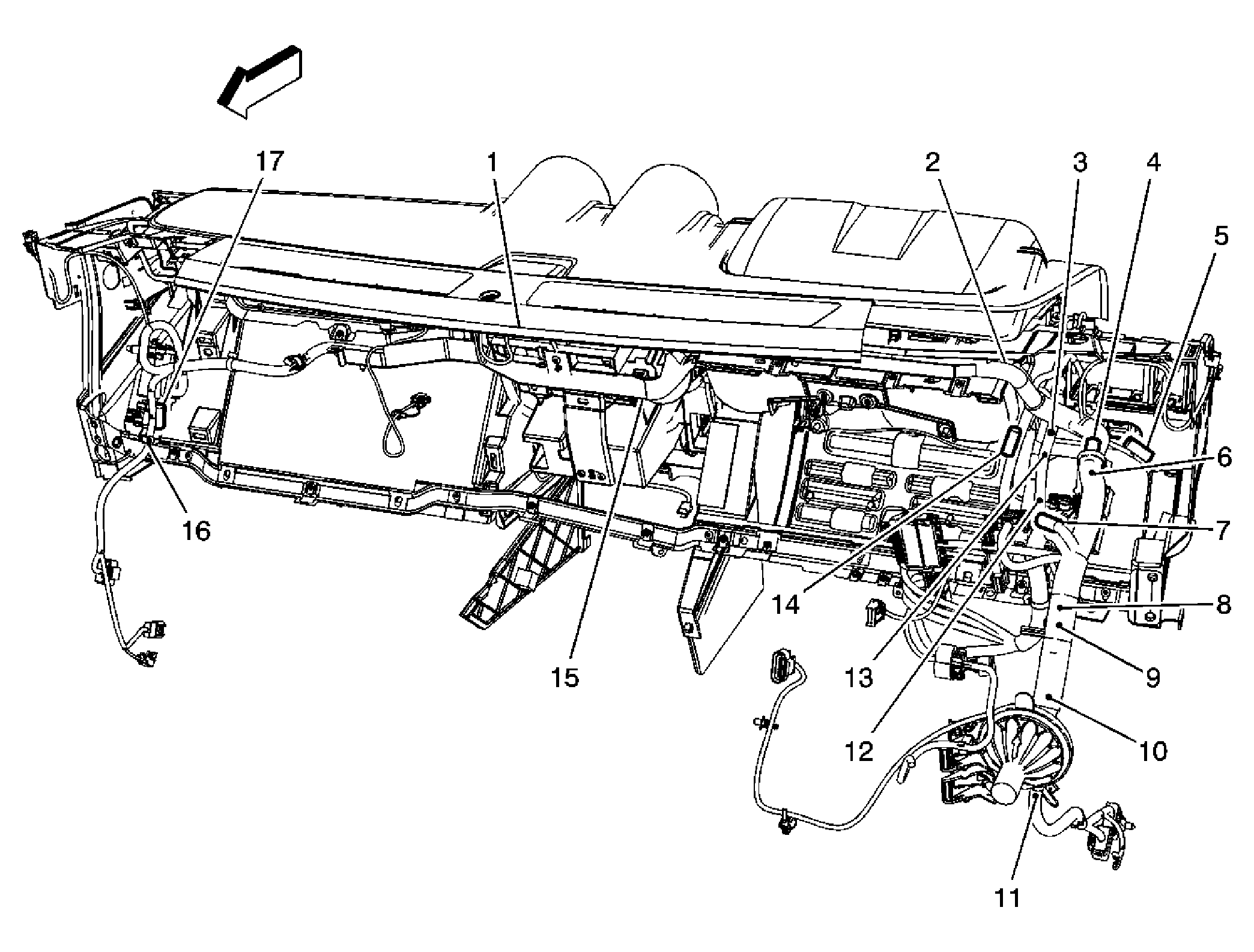

Fig 11: Instrument Panel Harness - Splices

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J215
2	J231
3	J203
4	J217
5	J278
6	J225
7	J230
8	J220
9	J221
10	J222
11	J205
12	J204
13	J234
14	J214
15	J232
16	J233

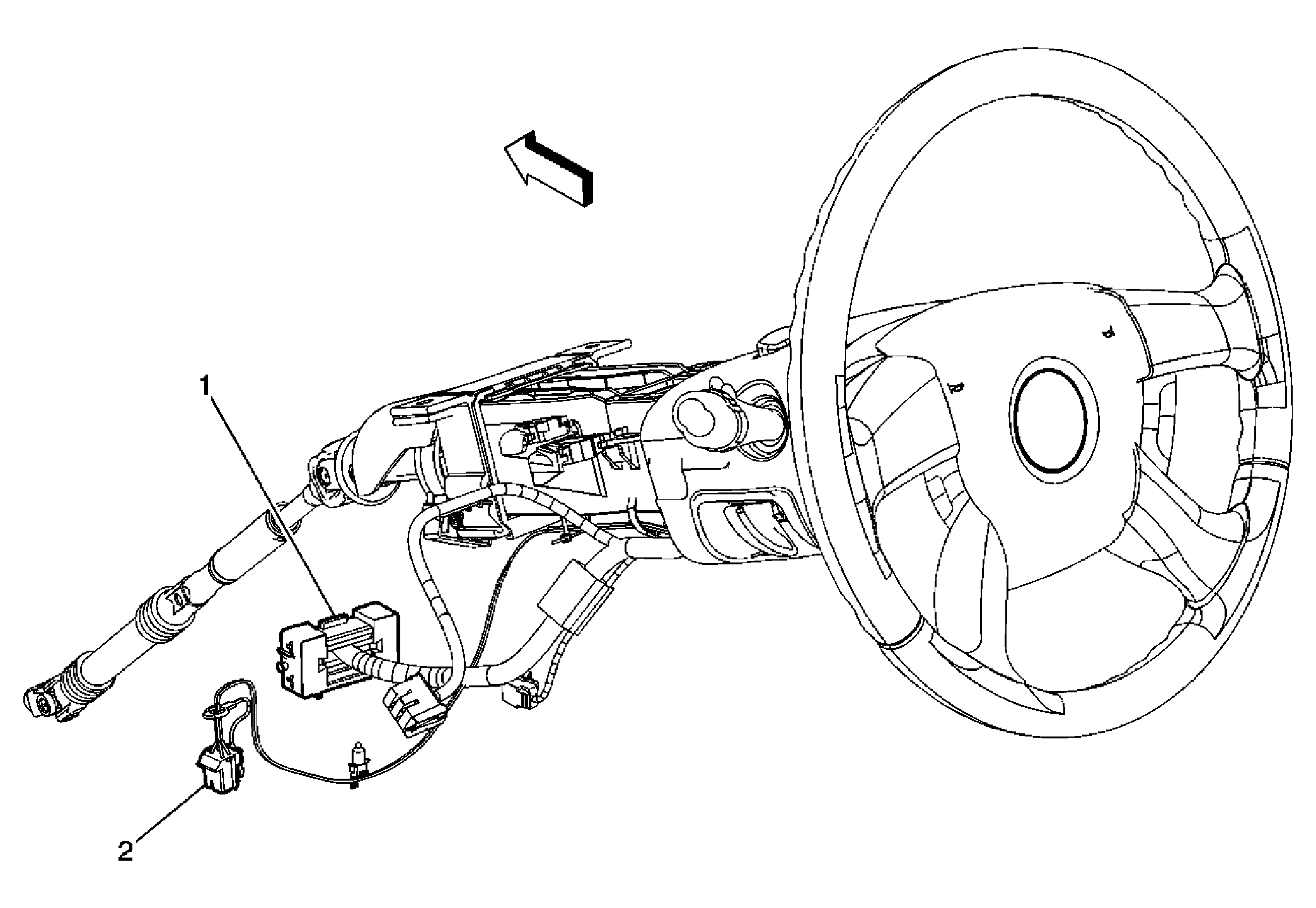

Fig 12: Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X201
2	X207

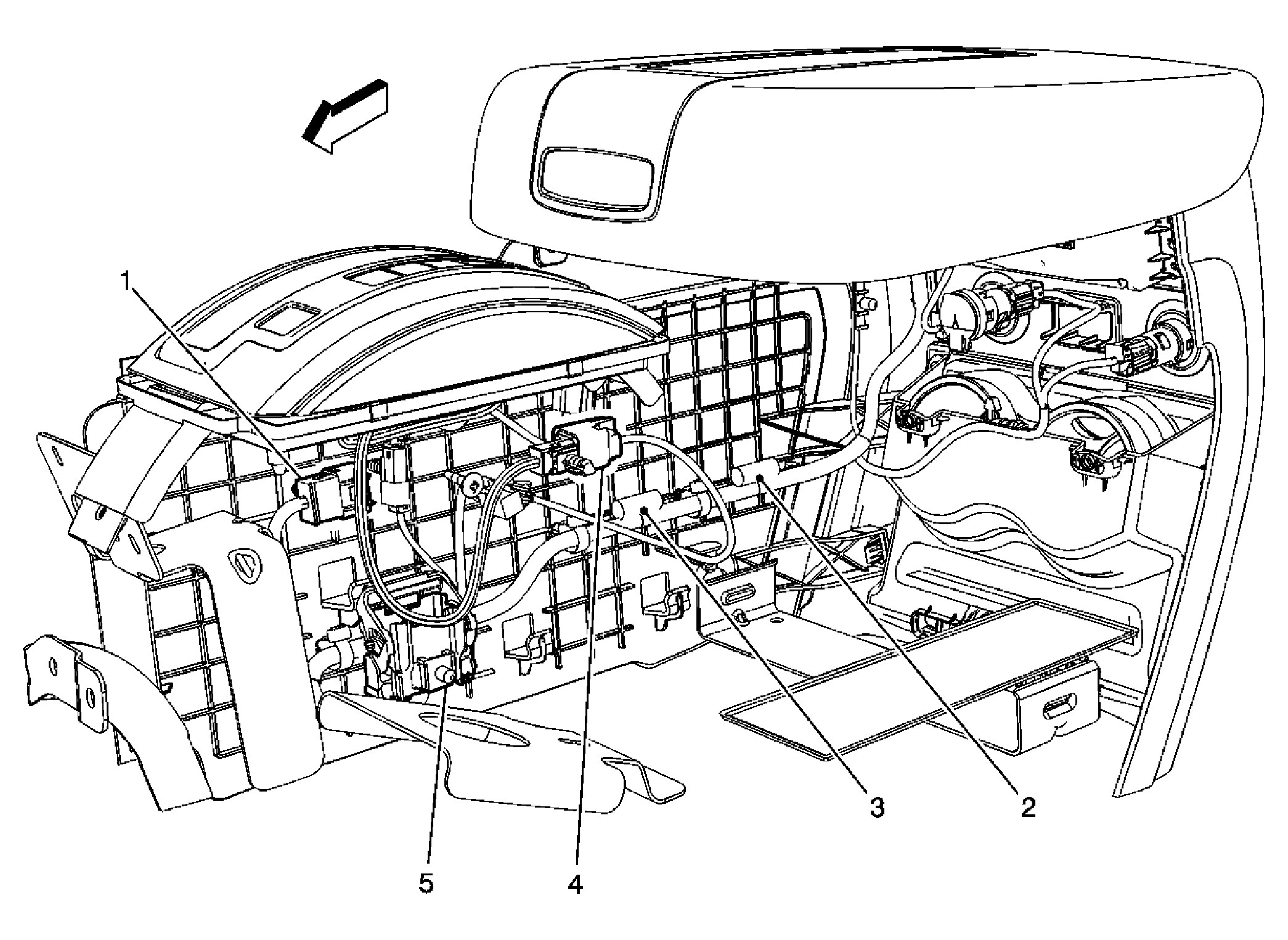

Fig 13: Floor Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X355
2	J351
3	J352
4	X356
5	X350

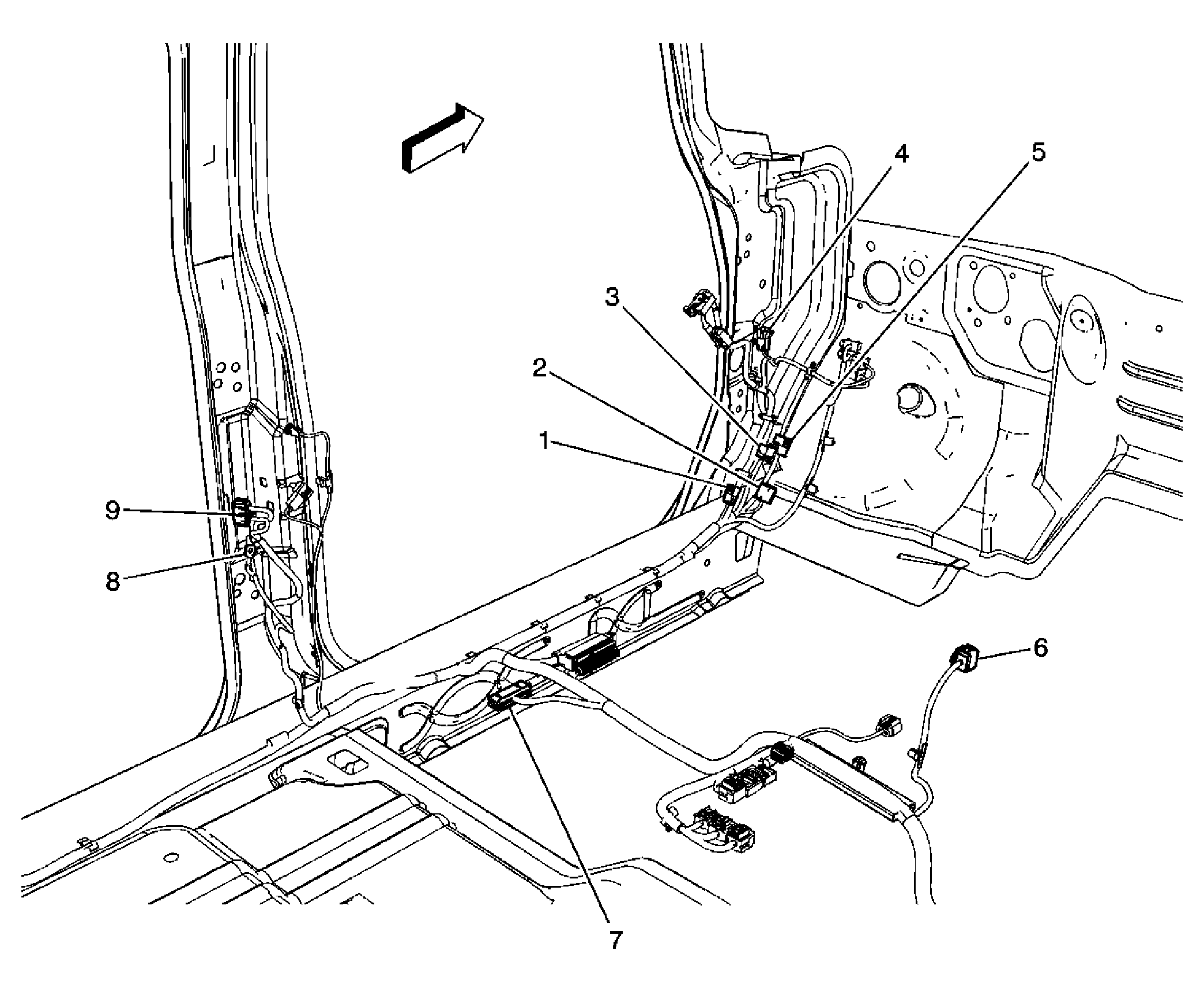

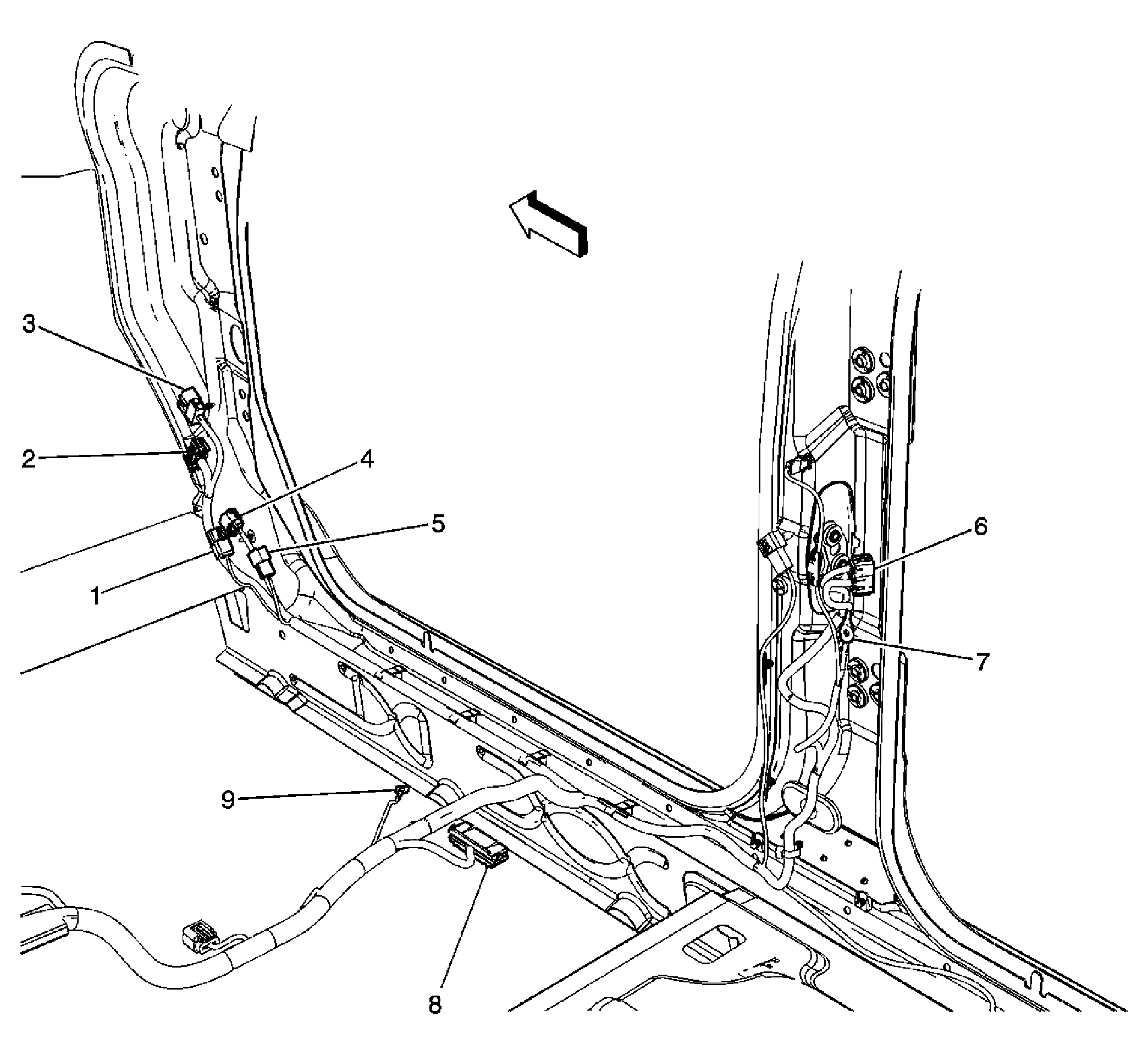

Fig 14: Body Harness - Left Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X220
2	JX201
3	X200
4	X207
5	X208
6	X355
7	X325
8	G302
9	X310

Fig 15: Body Harness - Right Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X296
2	X290
3	X298
4	X295
5	X299
6	X390
7	G306
8	X375
9	G301

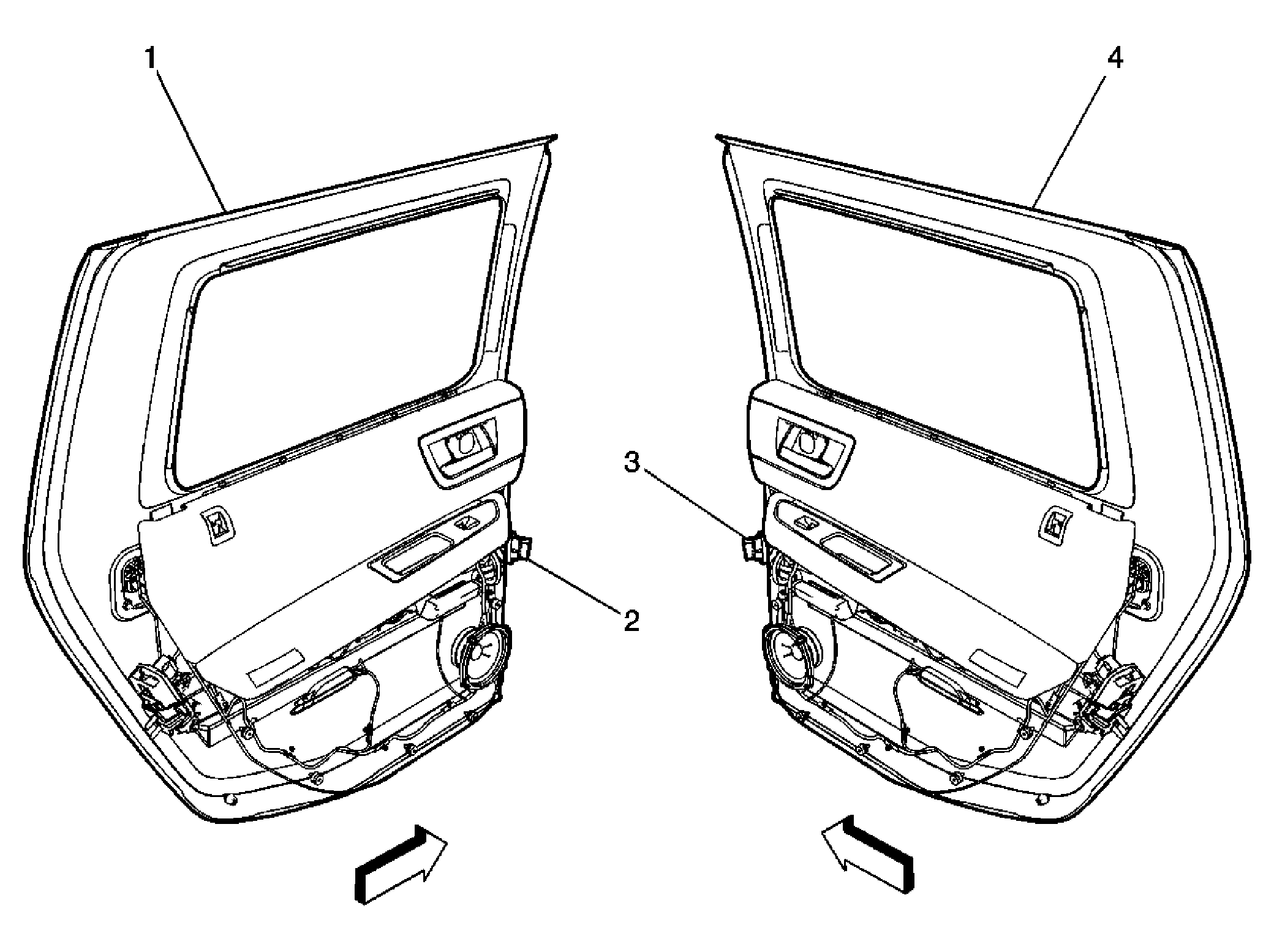

Fig 16: Rear Doors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Rear Door
2	X310
3	X390
4	Right Rear Door

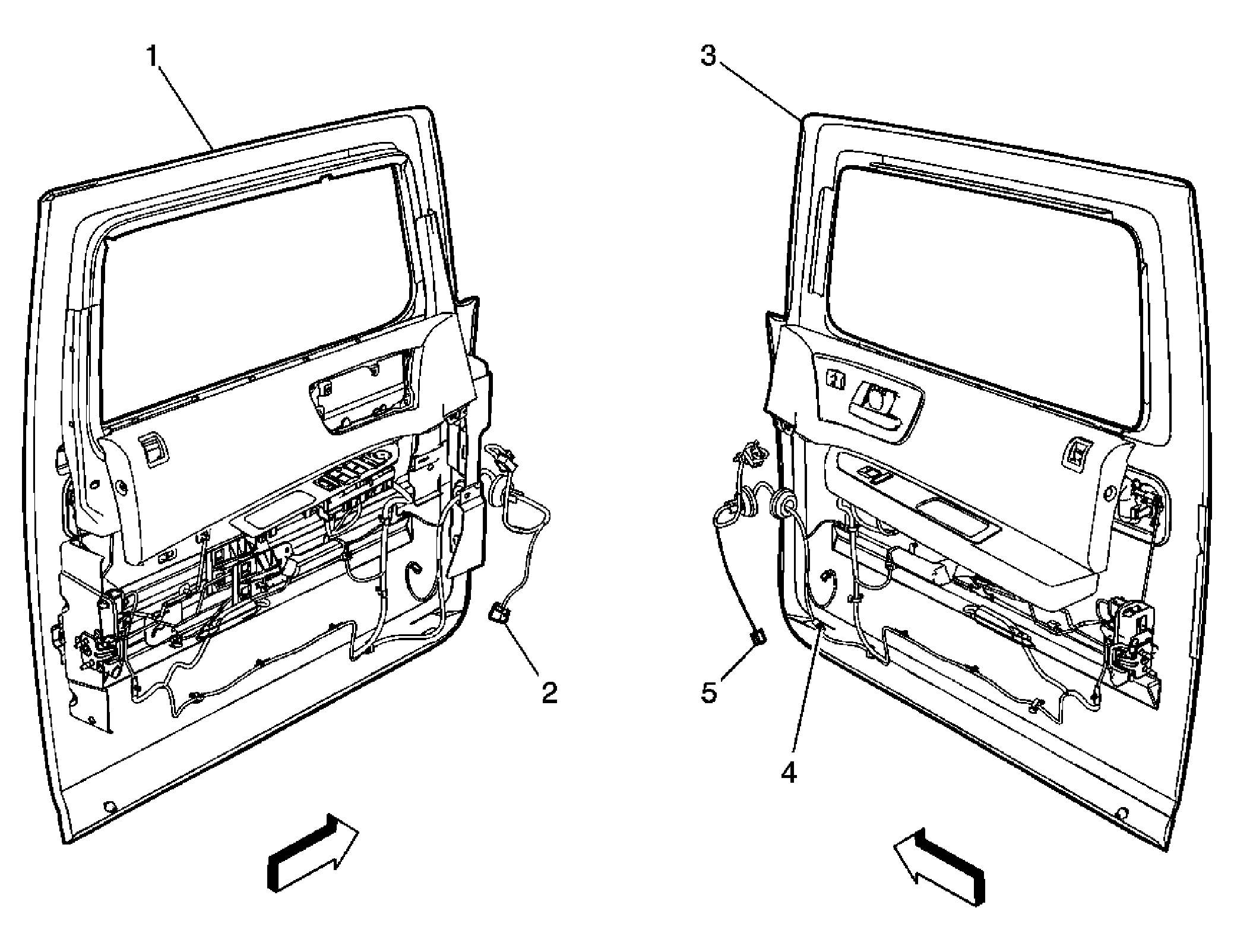

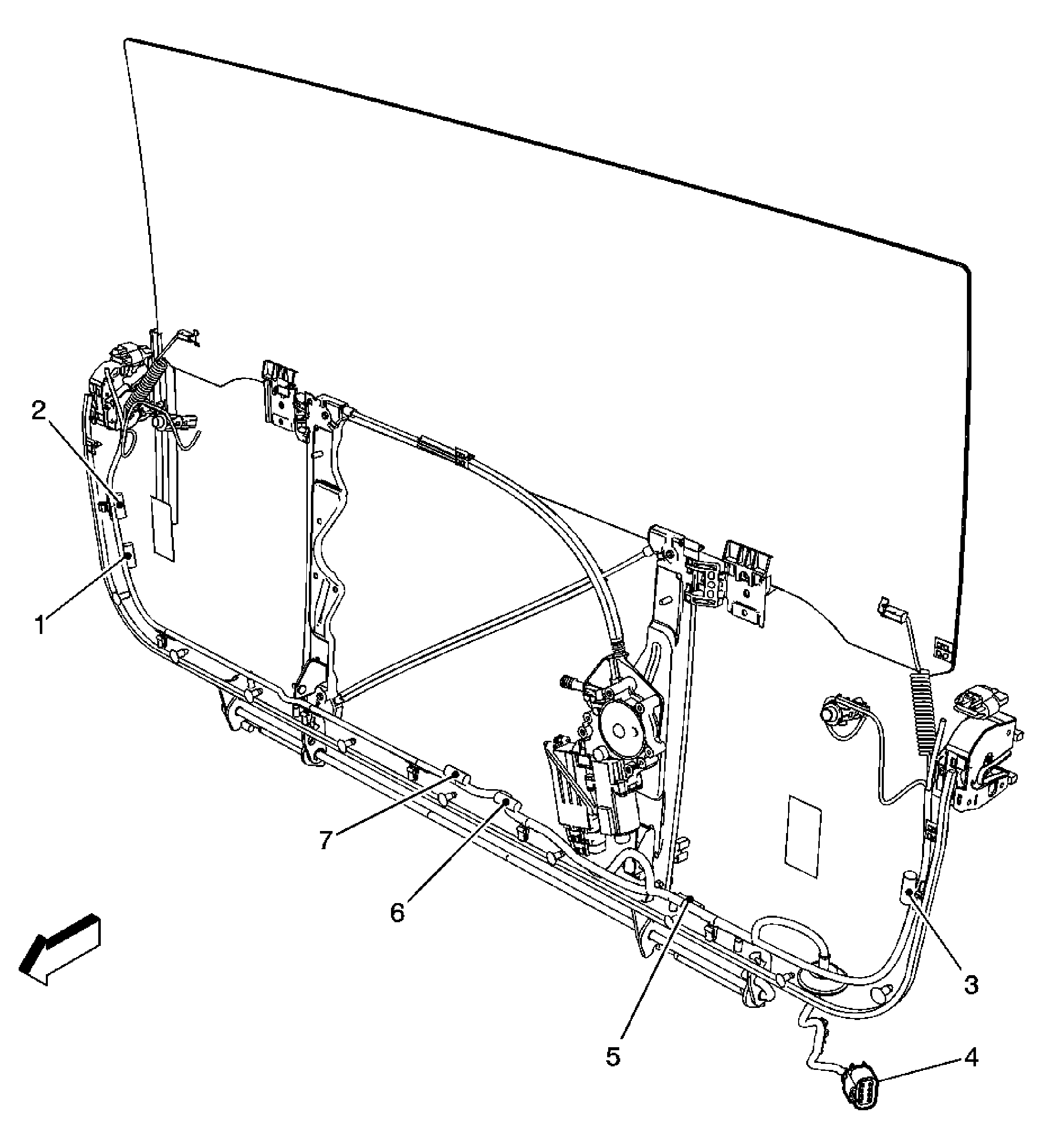

Fig 17: Front Doors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door
2	X220
3	Passenger Door
4	J600
5	X299

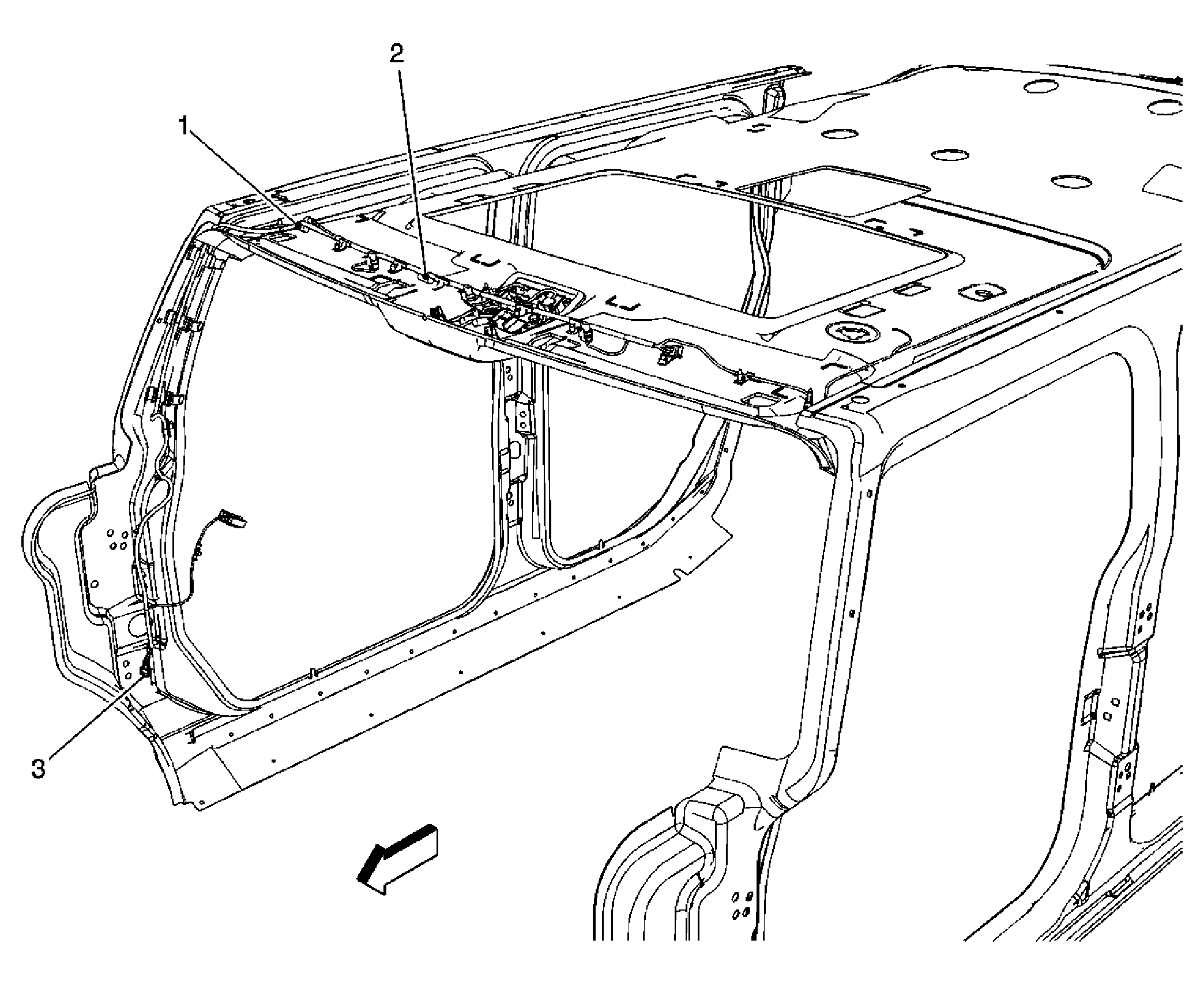

Fig 18: Roof Marker Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J303
2	J345
3	X235

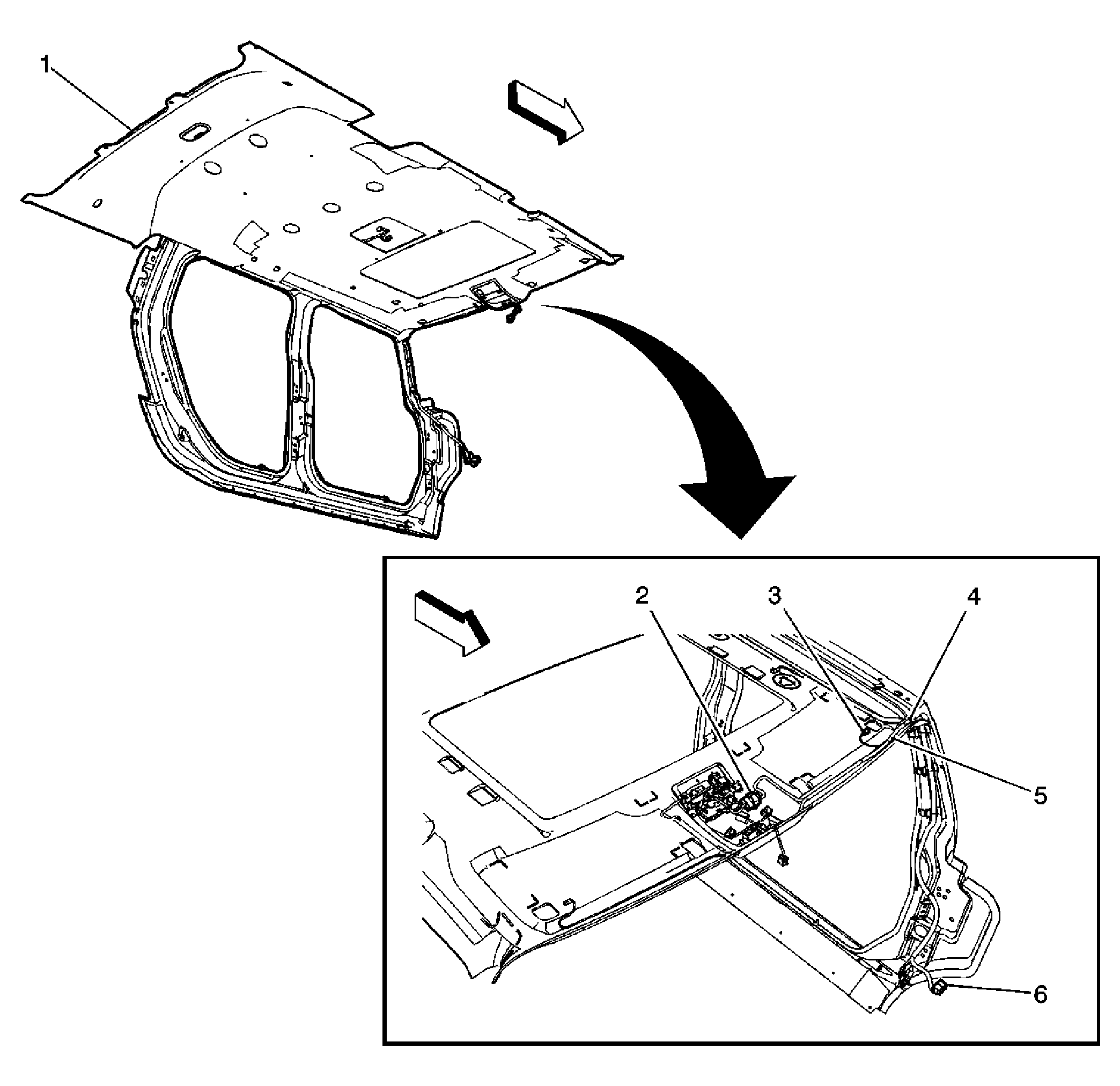

Fig 19: Headliner/Rear Dome Lamp Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X406 (SUV)
2	X304
3	X302
4	J301
5	J300
6	X204

Fig 20: Midgate Harness (SUT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J336 (SUT)
2	J338 (SUT)
3	J339 (SUT)
4	X300 (SUT)
5	J334 (SUT)
6	J337 (SUT)
7	J335 (SUT)

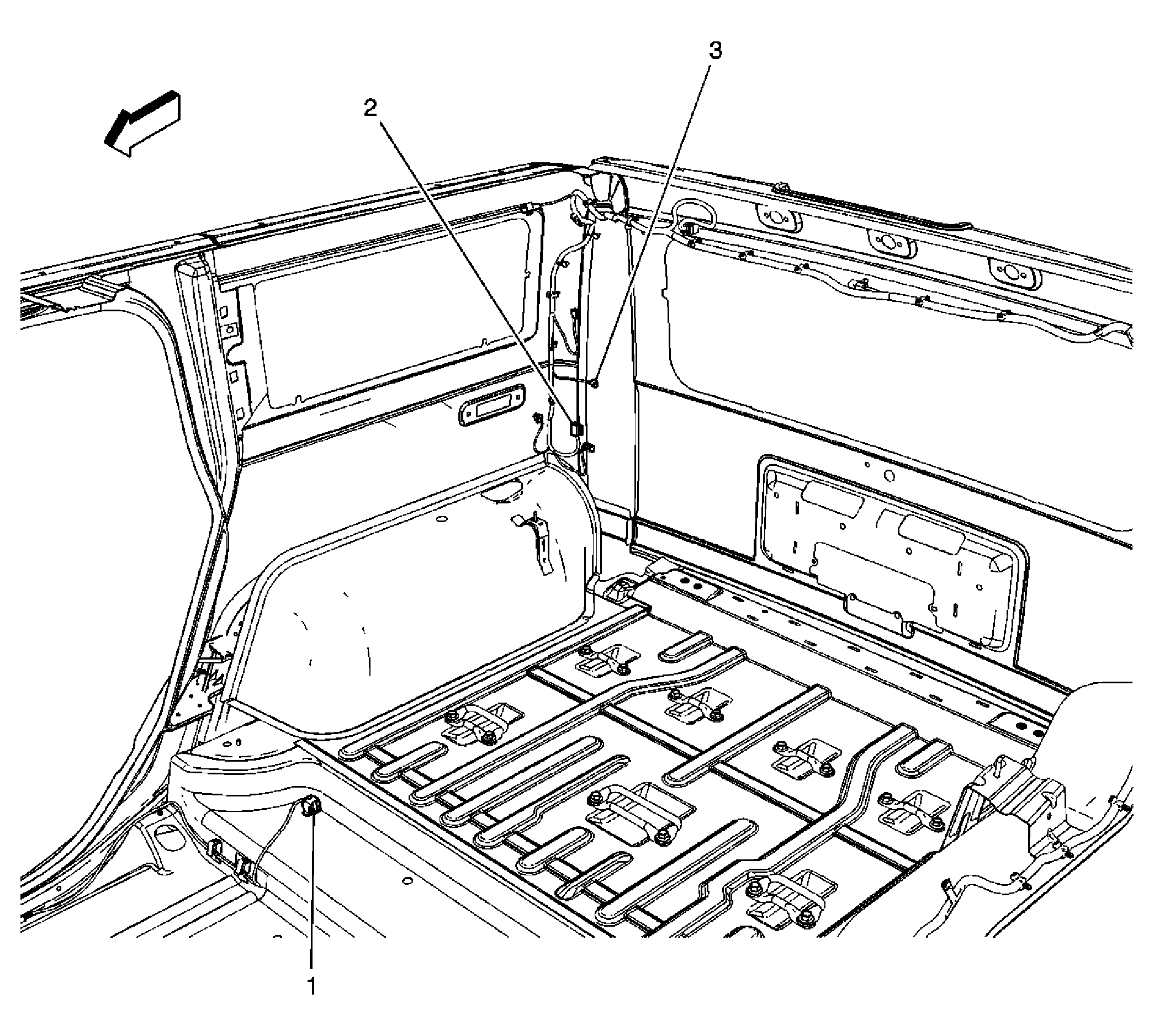

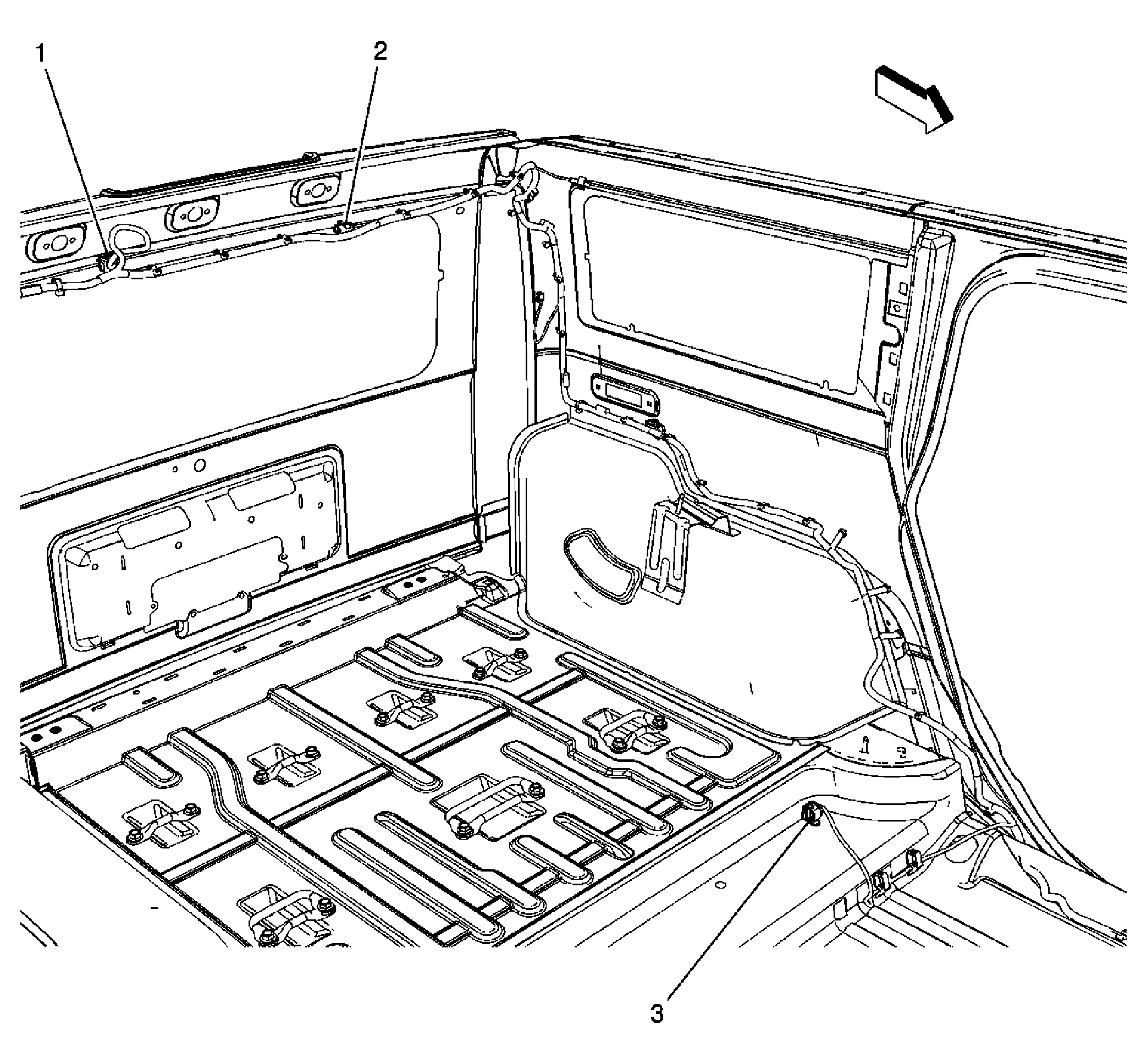

Fig 21: Body Harness - Left Rear Cargo Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X420
2	X406
3	X320

Fig 22: Body Harness - Right Rear Cargo Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X380
2	X407
3	G410

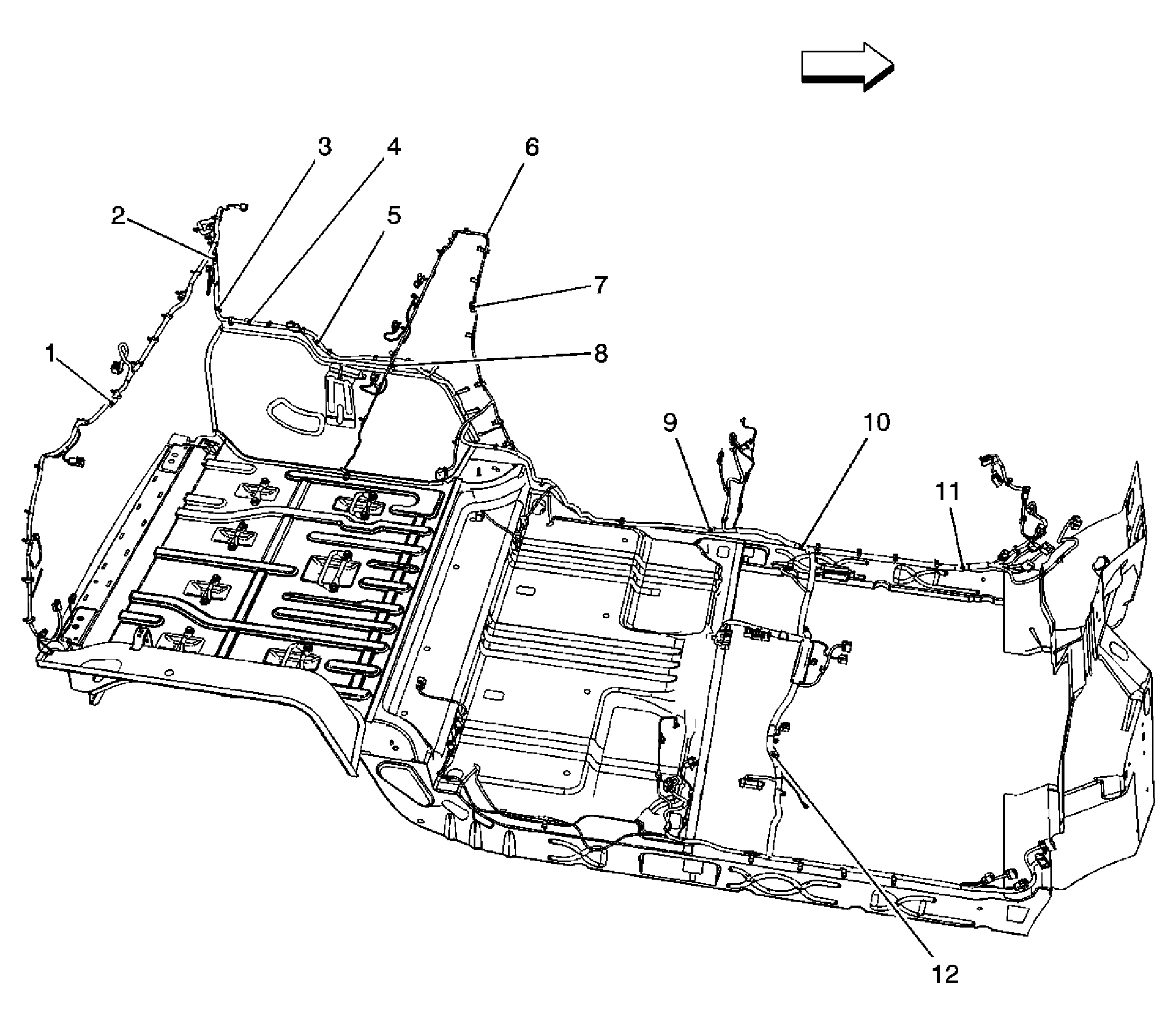

Fig 23: Body Harness - Splices

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J410
2	Body Harness (SUV)
3	J411
4	J333
5	J332
6	Body Harness (SUT)
7	J320 (SUT)
8	J411 (SUT)
9	J340
10	J341
11	J342
12	J310

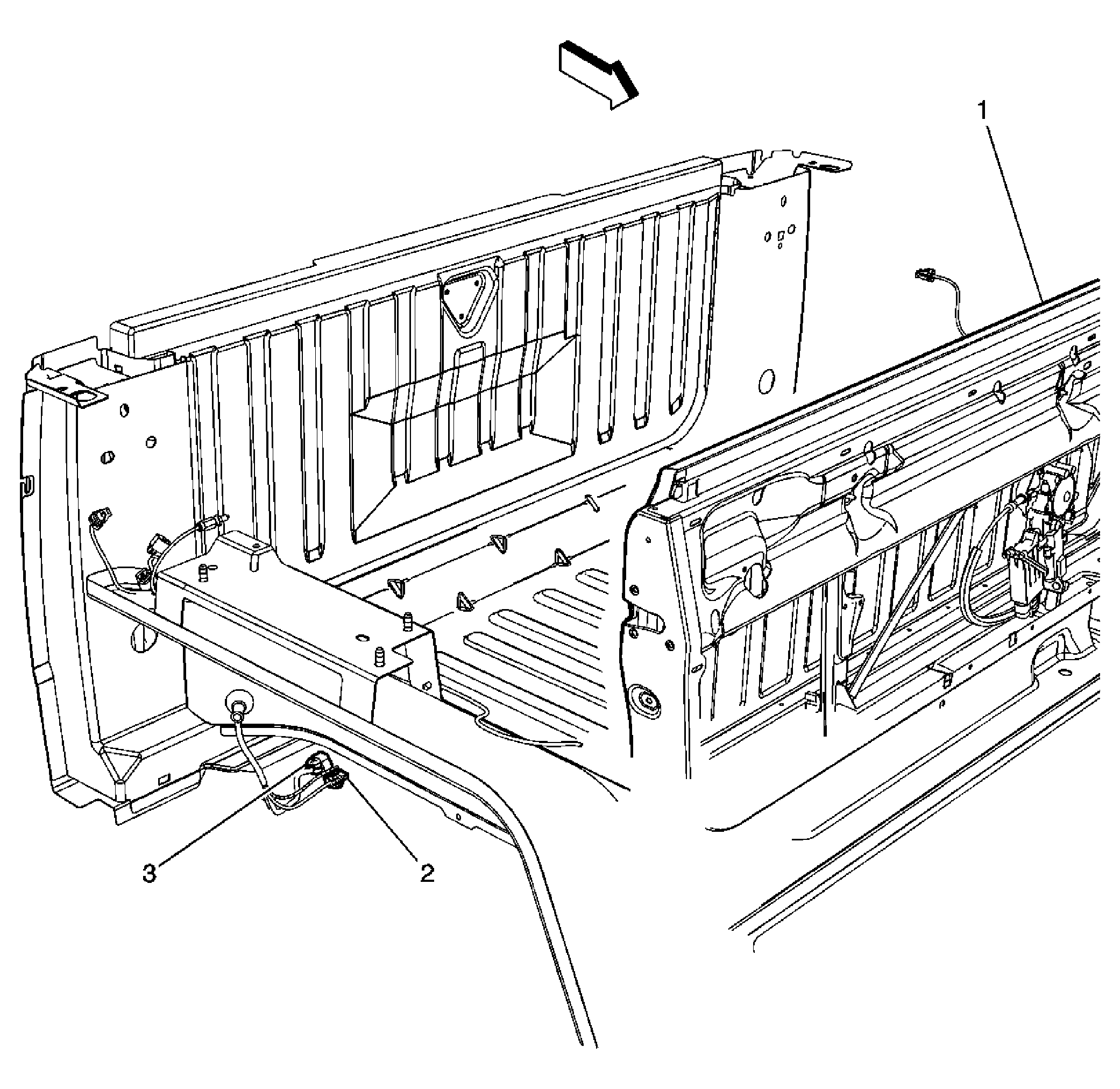

Fig 24: Cargo Box Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Midgate
2	X402
3	X400

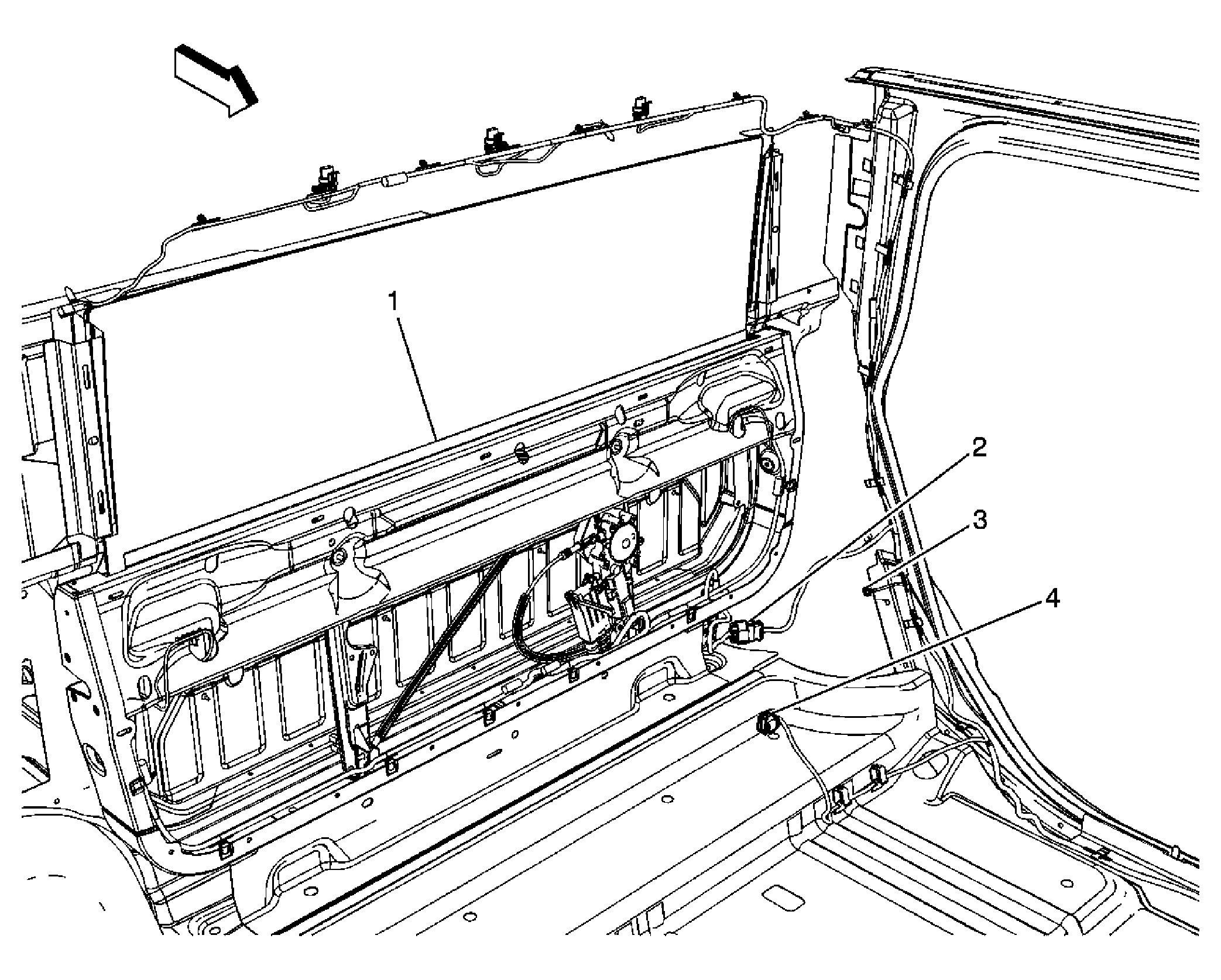

Fig 25: Body Harness - Left Rear Passenger Compartment (SUT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Midgate
2	X300
3	G403
4	X320

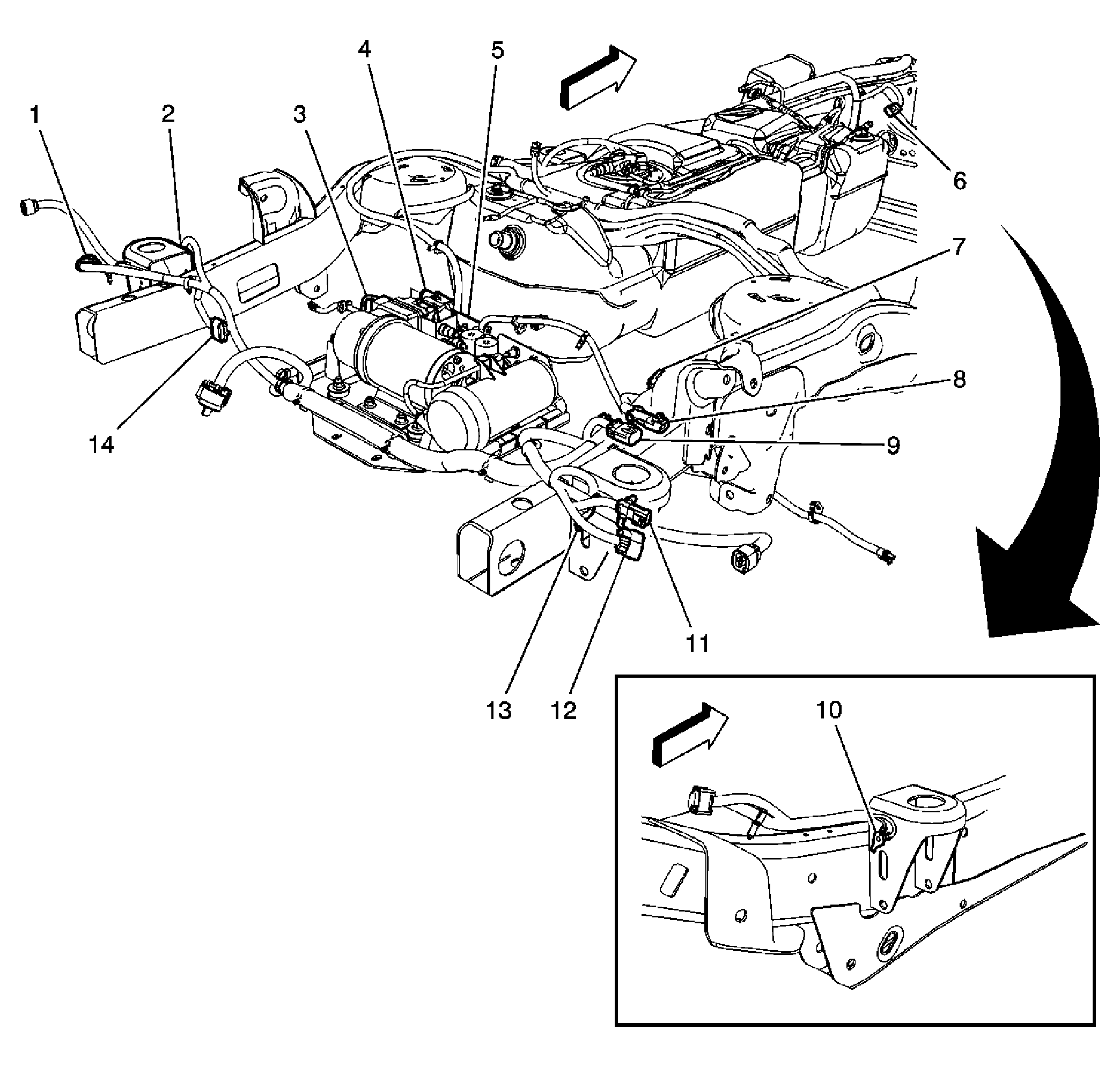

Fig 26: Chassis Harness - Rear Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X411
2	G401
3	X451
4	X315
5	Data Link Resistor
6	X452(SUV)/X402(SUT)
7	X400 (SUT)
8	G304
9	X401
10	X412
11	G400
12	X413

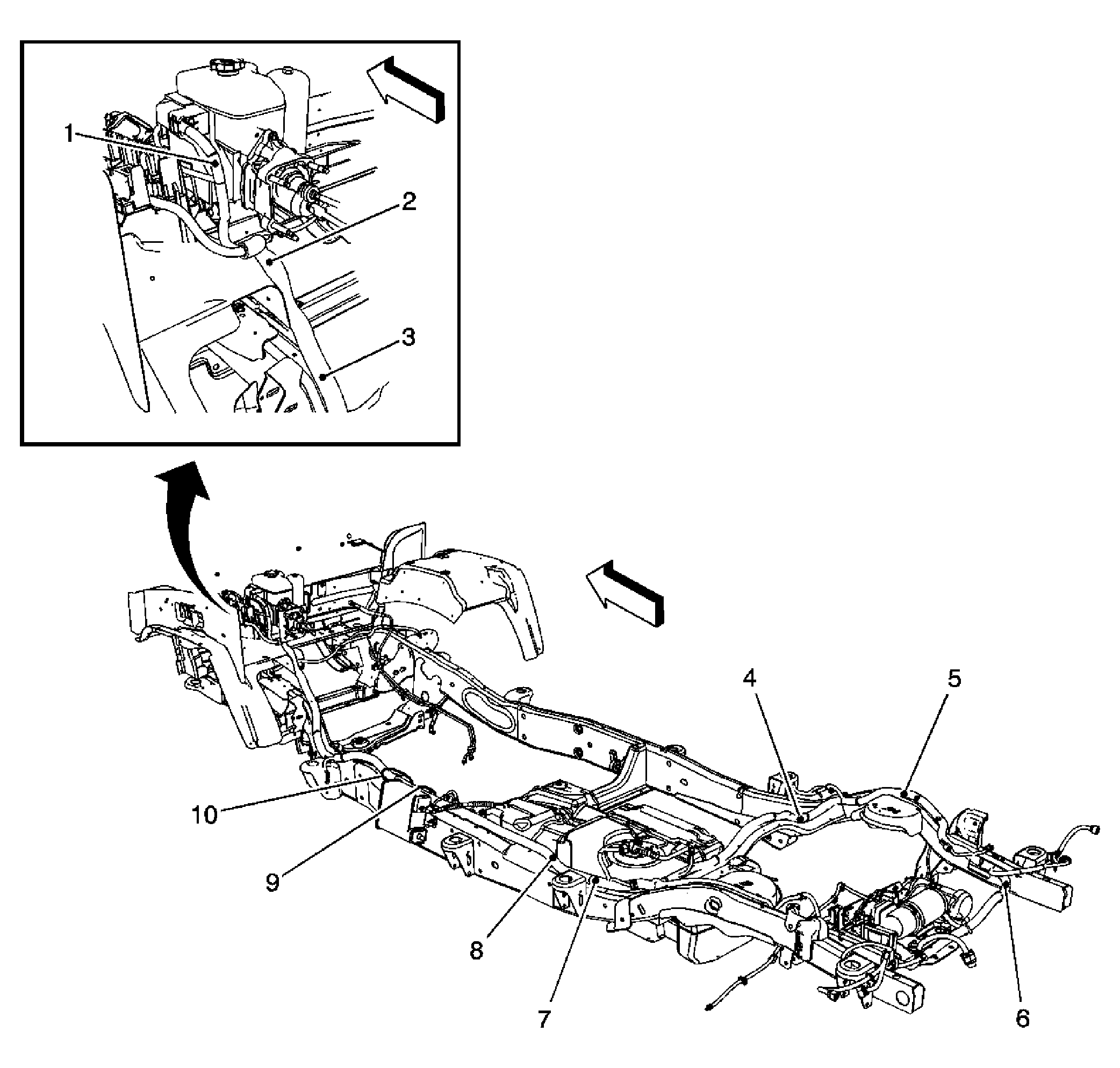

Fig 27: Chassis Harness - Splices

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J355
2	J110
3	J356
4	J406
5	J407
6	J405
7	J403
8	J404
9	J360
10	J358

Fig 28: Chassis Harness - Splices

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J355
2	J110
3	J356
4	J406
5	J407
6	J405
7	J403
8	J404
9	J360
10	J358

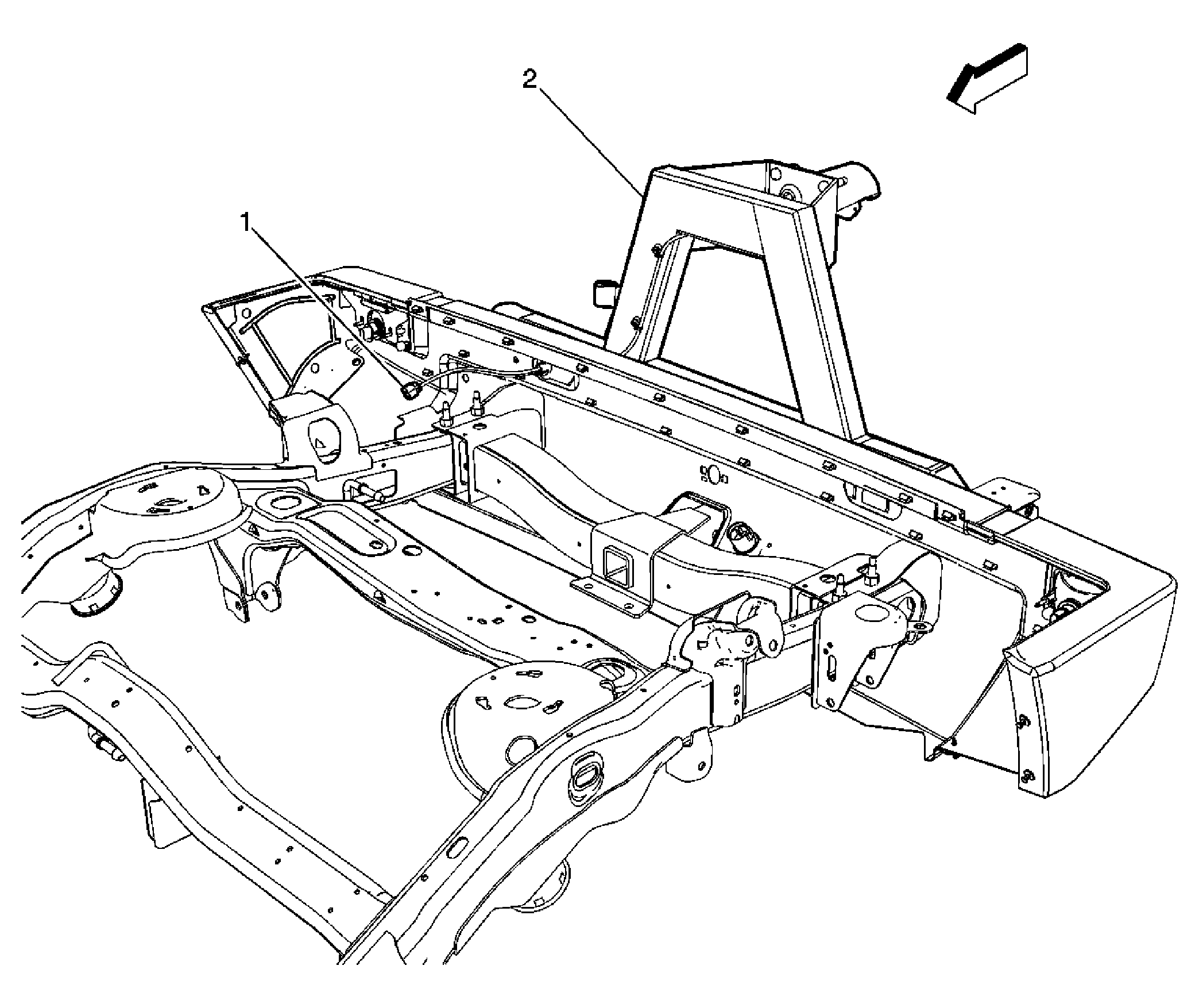

Fig 29: License Lamp Jumper Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X401
2	Spare Tire Carrier
