Ground Distribution Schematics

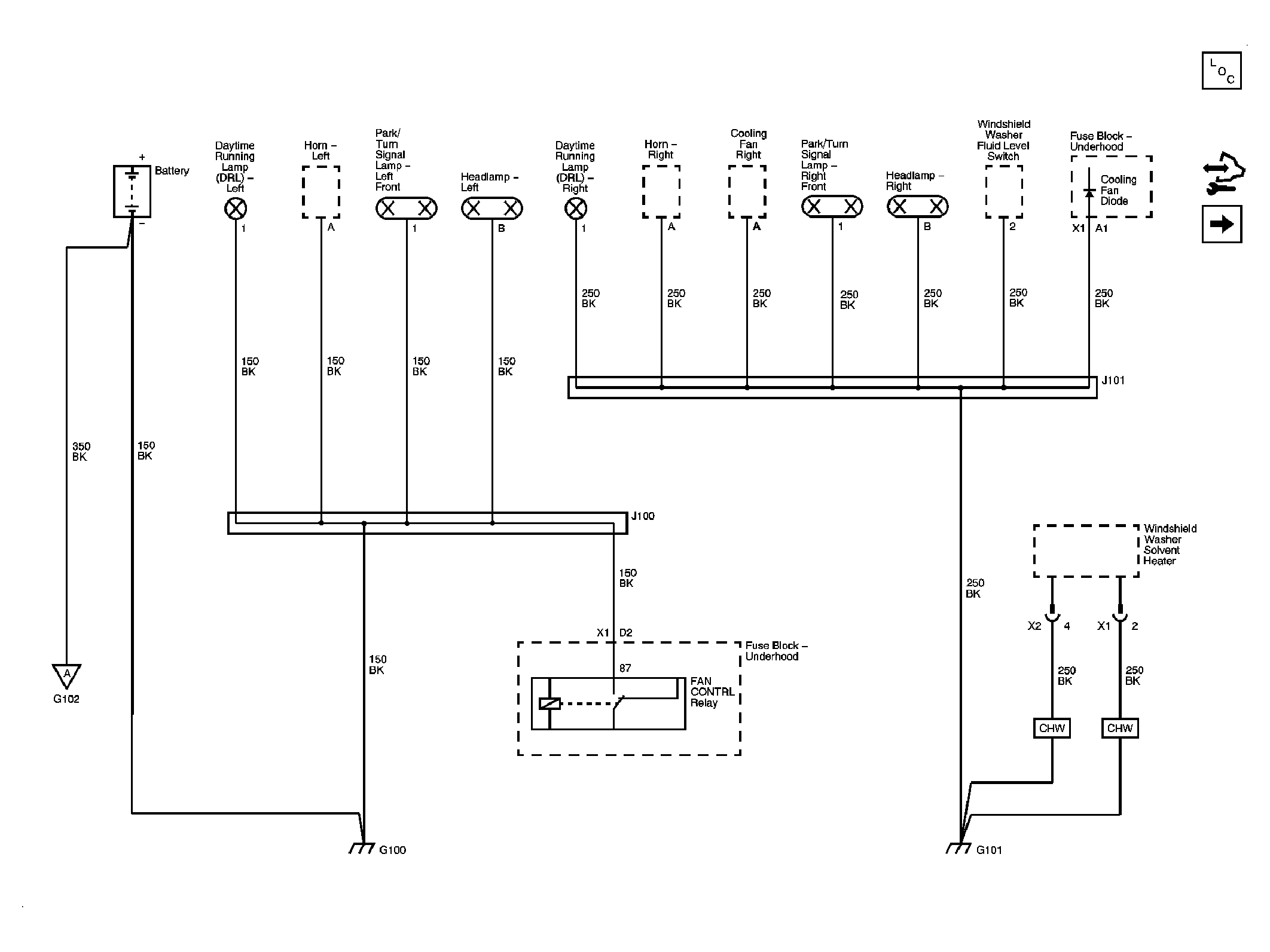

Fig 1: G100 and G101

GM1954824

Courtesy of GENERAL MOTORS CORP.

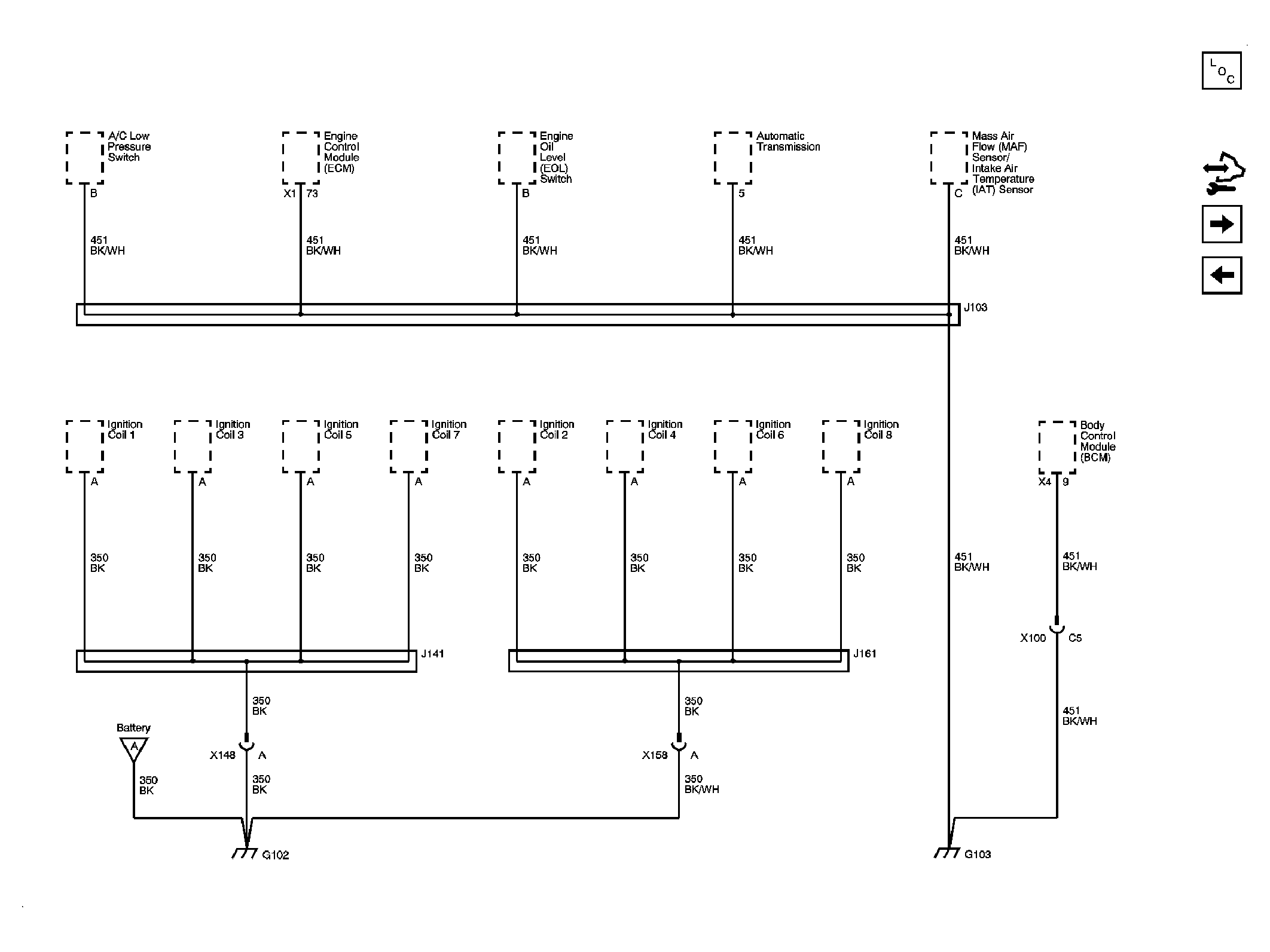

Fig 2: G102 and G103

GM1954825

Courtesy of GENERAL MOTORS CORP.

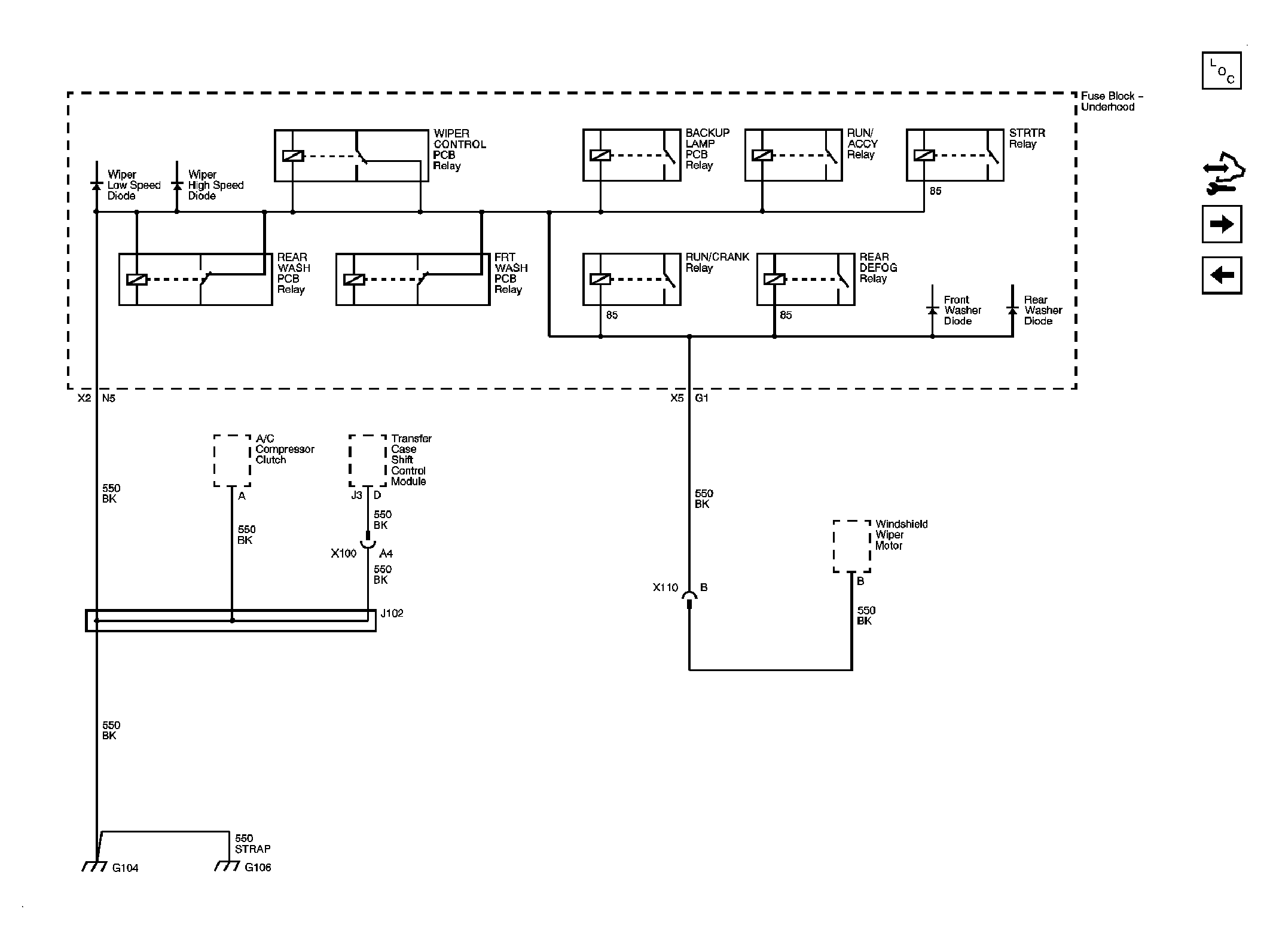

Fig 3: G104 and G106

GM1954828

Courtesy of GENERAL MOTORS CORP.

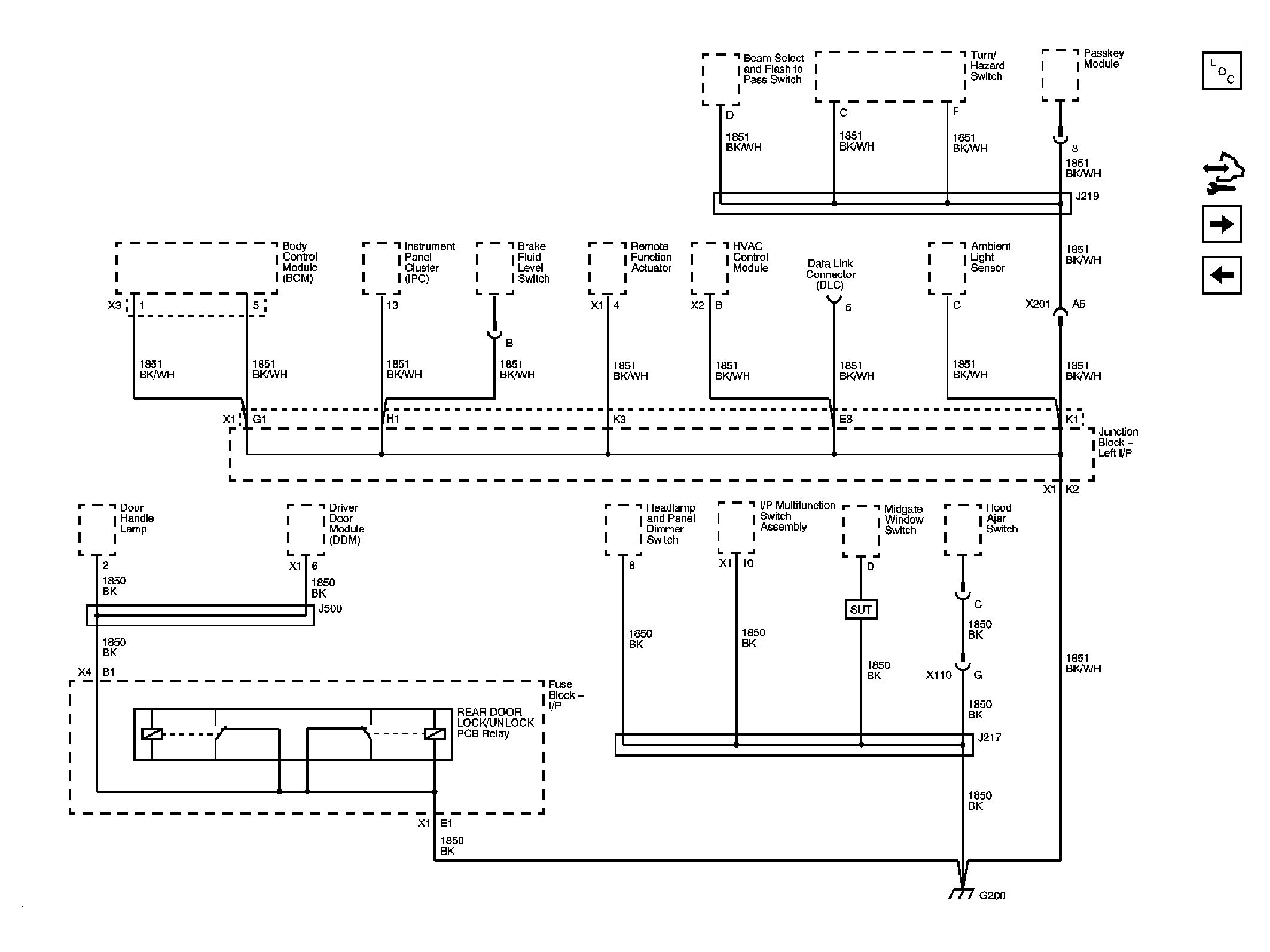

Fig 4: G200

GM1954829

Courtesy of GENERAL MOTORS CORP.

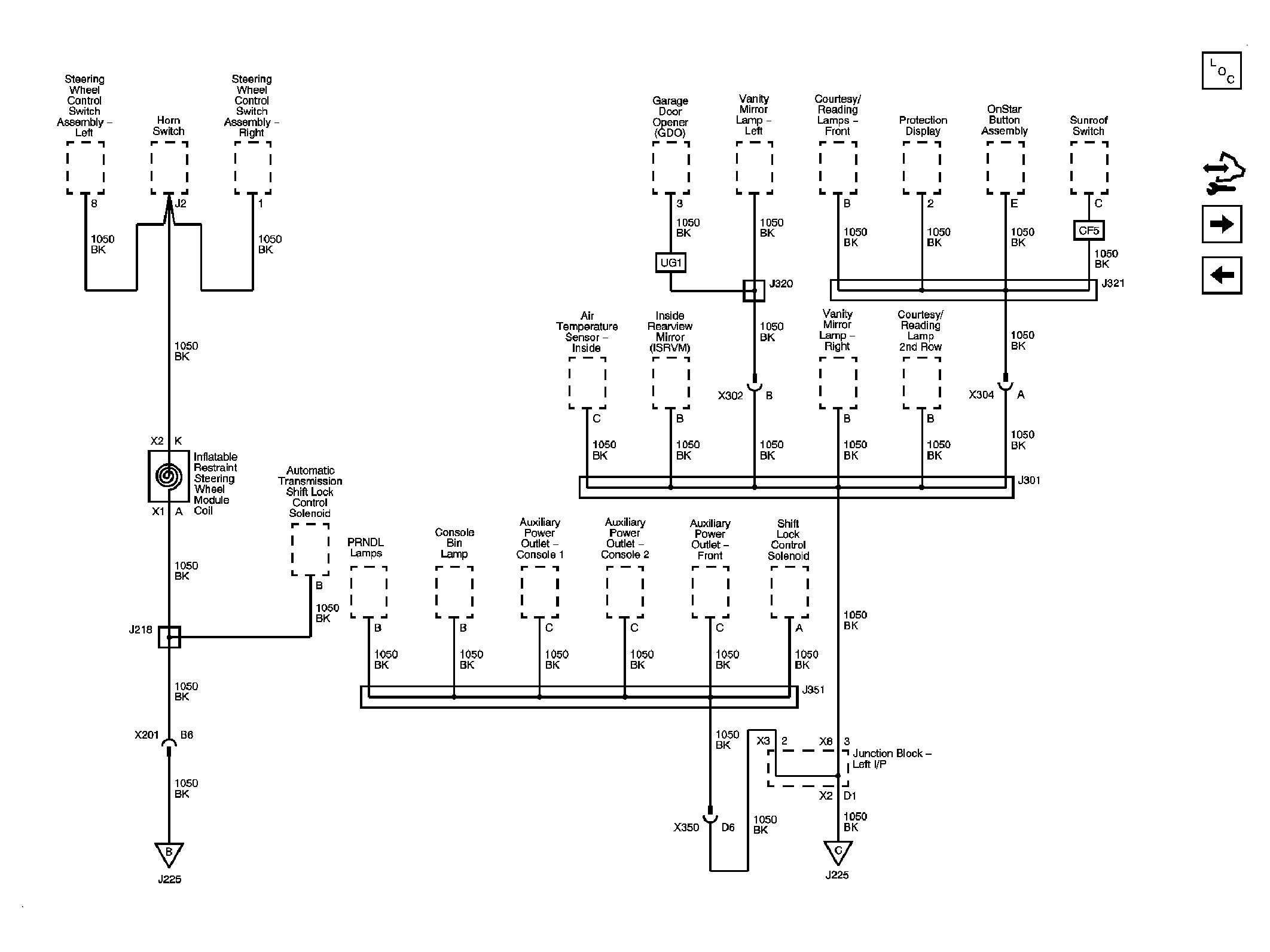

Fig 5: G203 - 1 of 2

GM1954834

Courtesy of GENERAL MOTORS CORP.

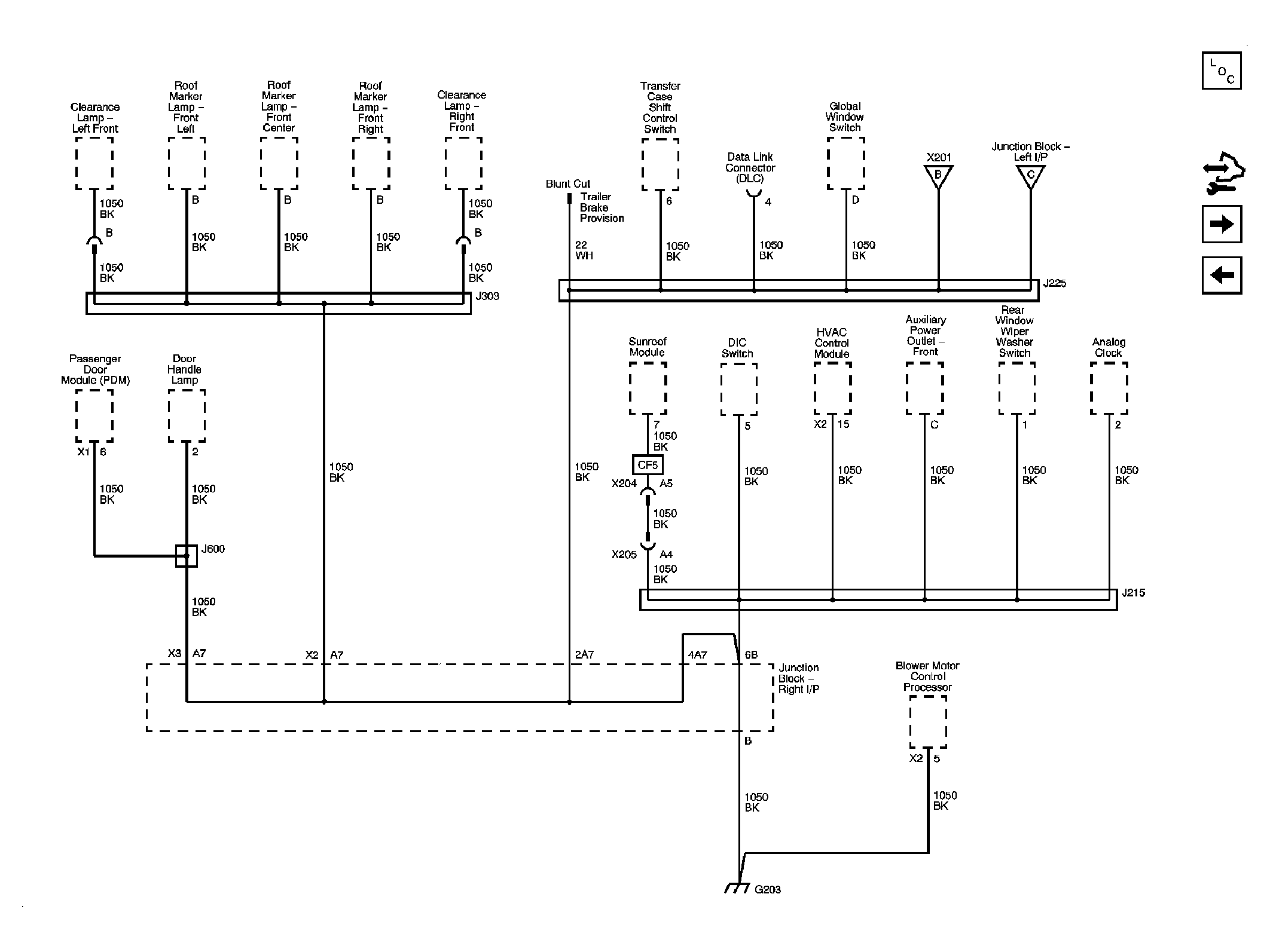

Fig 6: G203 - 2 of 2

GM1954837

Courtesy of GENERAL MOTORS CORP.

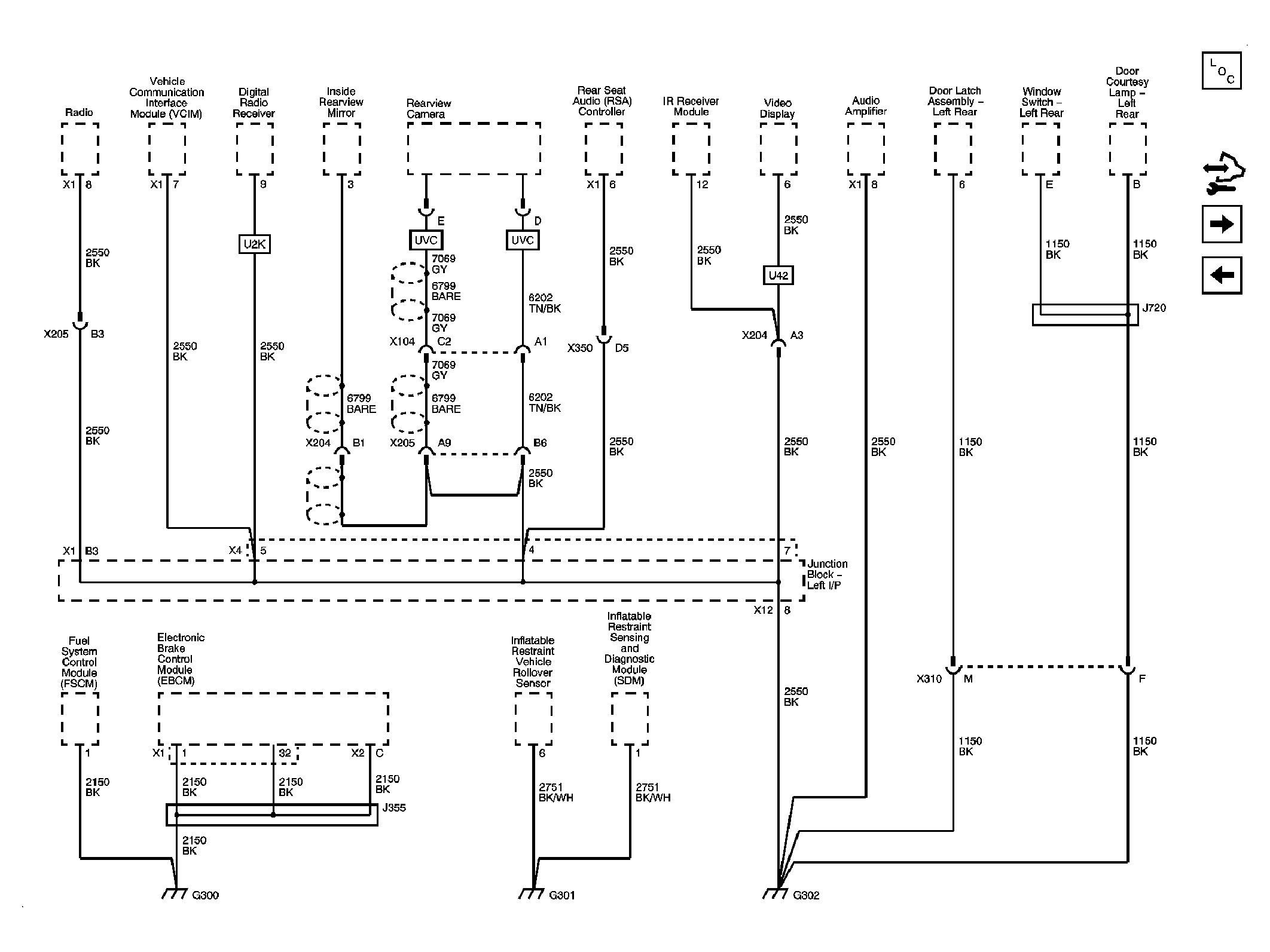

Fig 7: G300, G301 and G302

GM1954841

Courtesy of GENERAL MOTORS CORP.

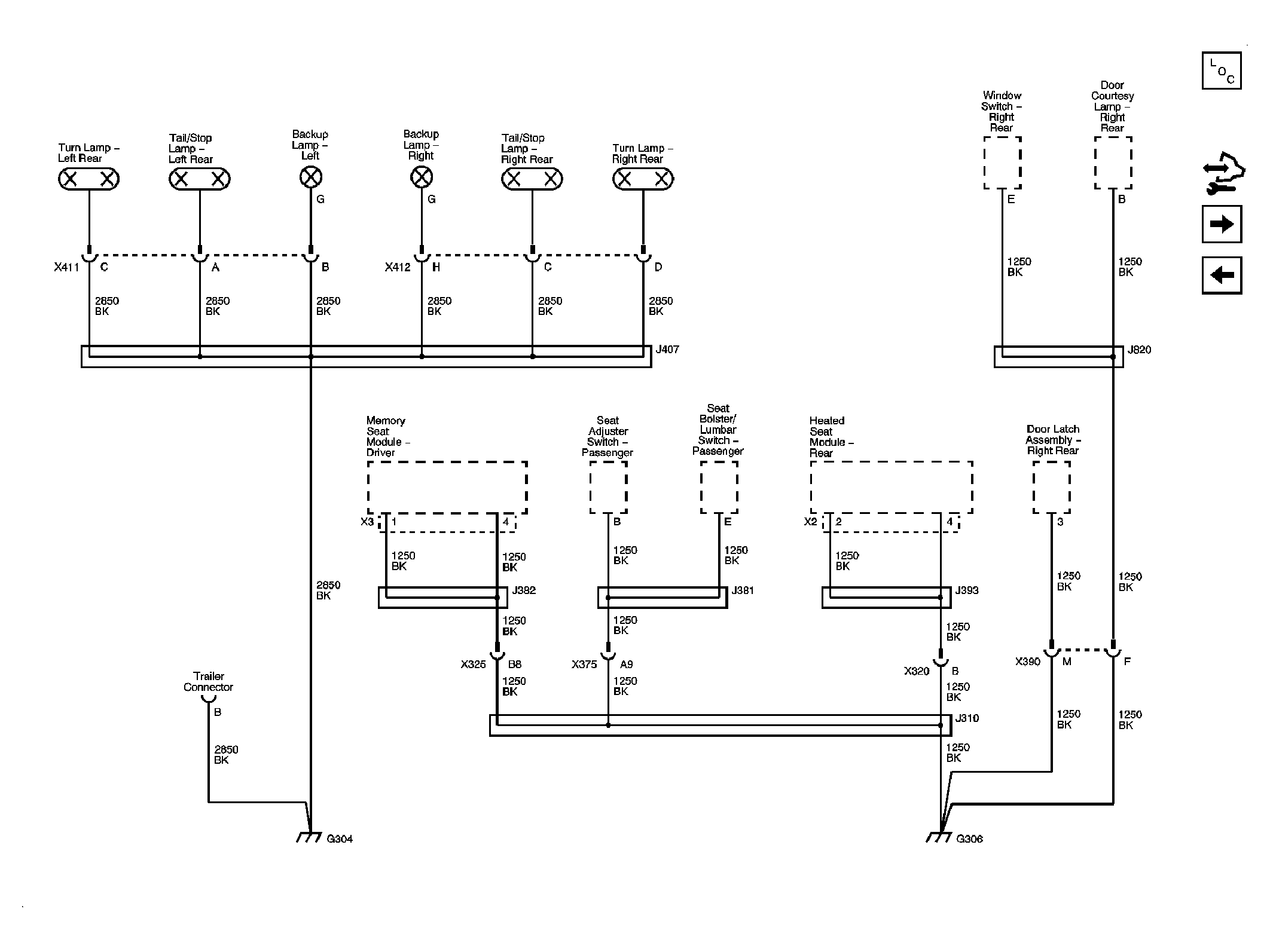

Fig 8: G304 and G306

GM1954843

Courtesy of GENERAL MOTORS CORP.

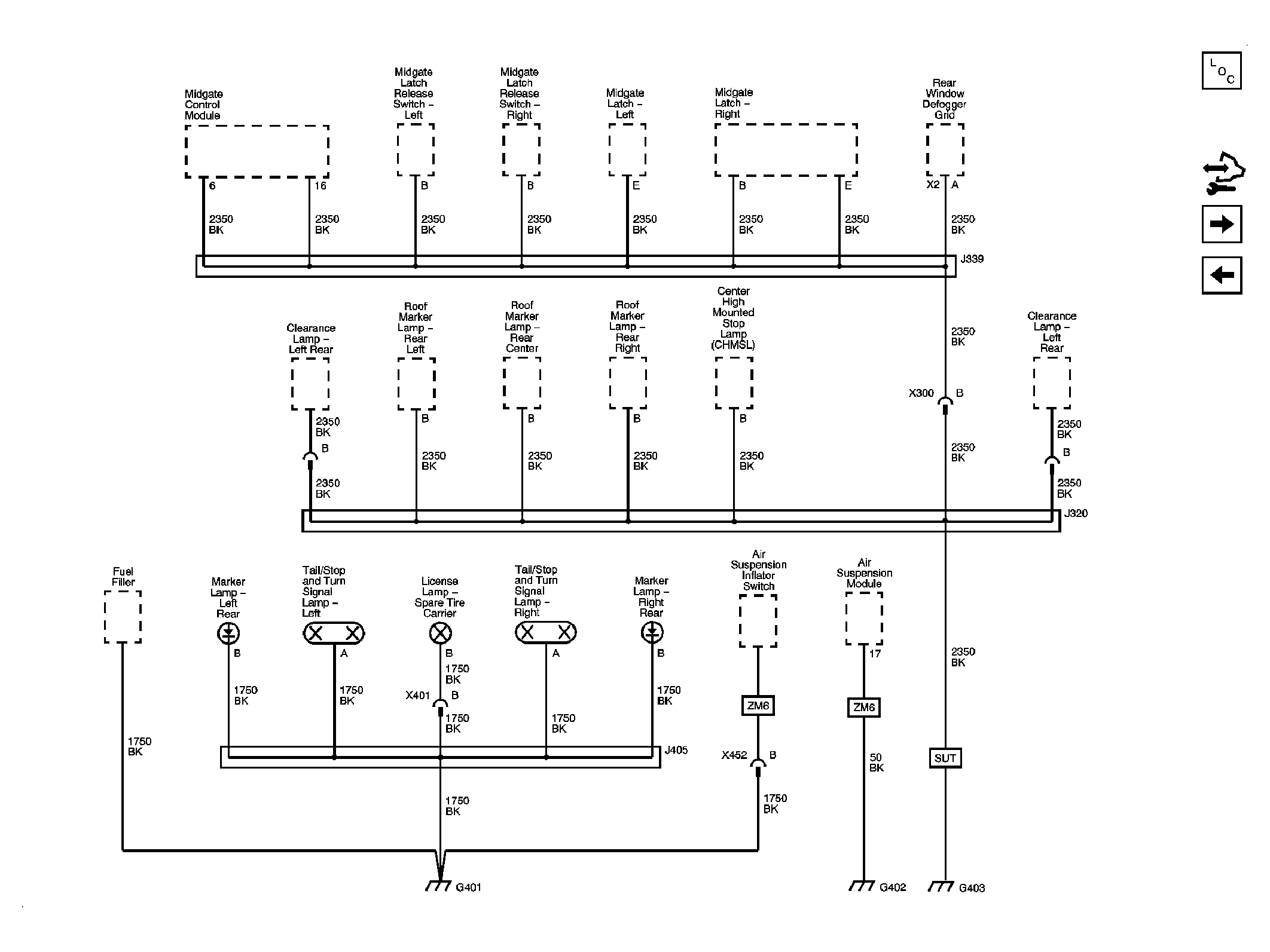

Fig 9: G401, G402 and G403

GM1954844

Courtesy of GENERAL MOTORS CORP.

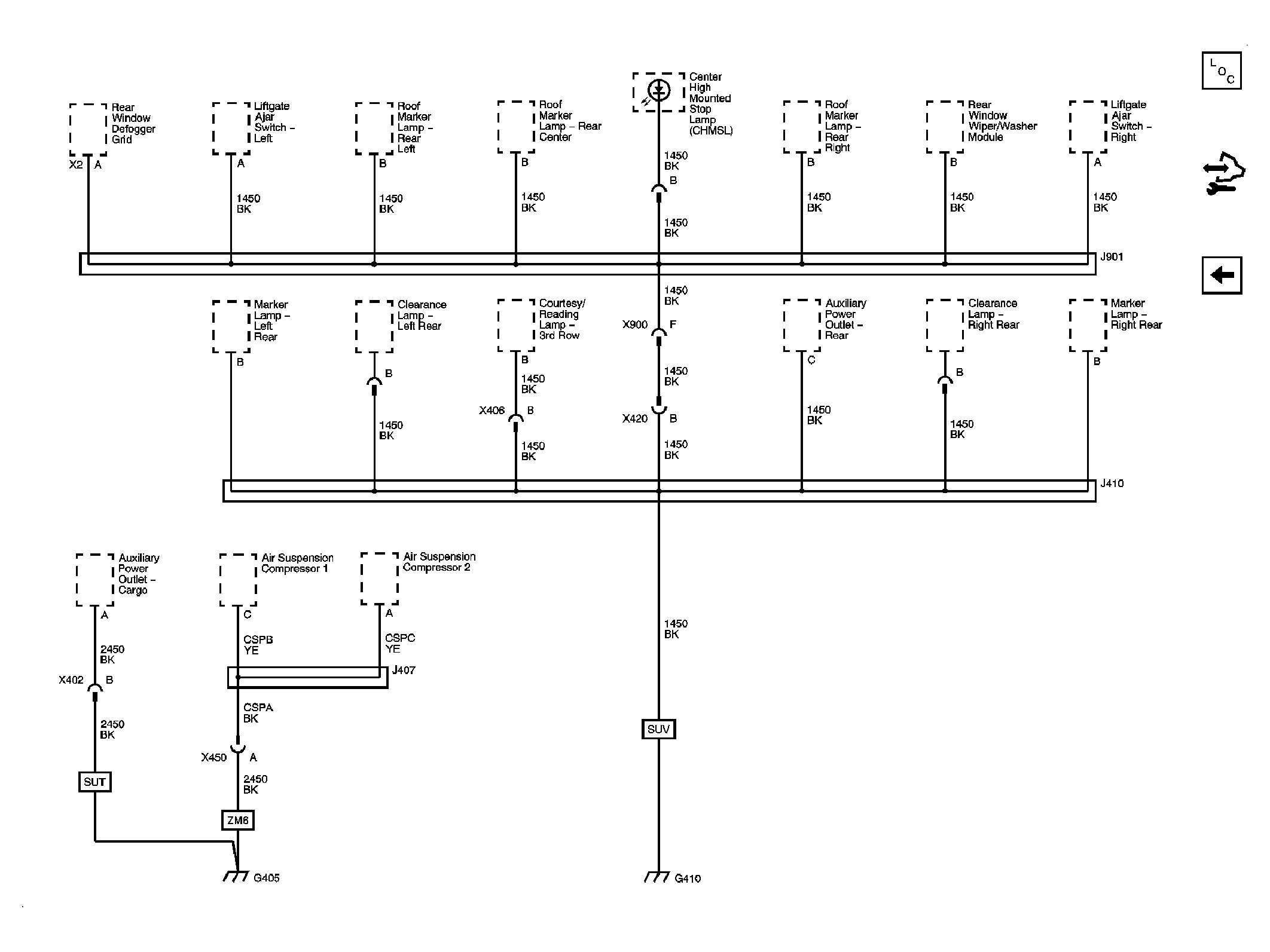

Fig 10: G405 and G410

GM1954847

Courtesy of GENERAL MOTORS CORP.
