Ignition Lock Cylinder Case Bracket Replacement

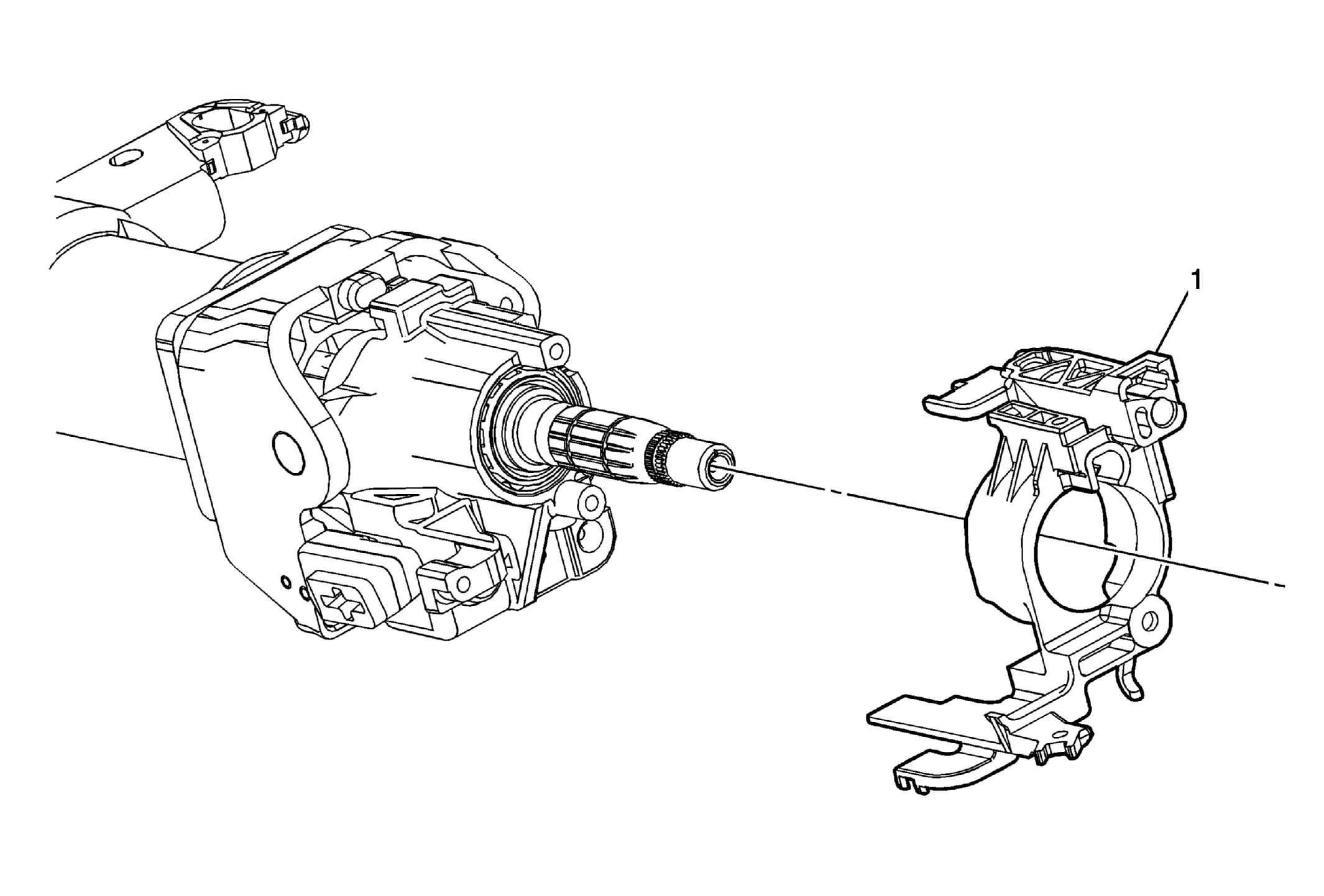

Fig 1: Ignition Lock Cylinder Case Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the turn signal multifunction switch. Refer to Turn Signal Multifunction Switch Replacement . Remove the ignition lock cylinder case. Refer to Ignition Lock Cylinder Case Replacement .
1	Ignition Lock Cylinder Case Bracket

Callout

Component Name

Preliminary Procedures

Remove the turn signal multifunction switch. Refer to Turn Signal Multifunction Switch Replacement .
Remove the ignition lock cylinder case. Refer to Ignition Lock Cylinder Case Replacement .

Ignition Lock Cylinder Case Bracket
