Instrument Panel Compartment Door Latch Release Handle Replacement

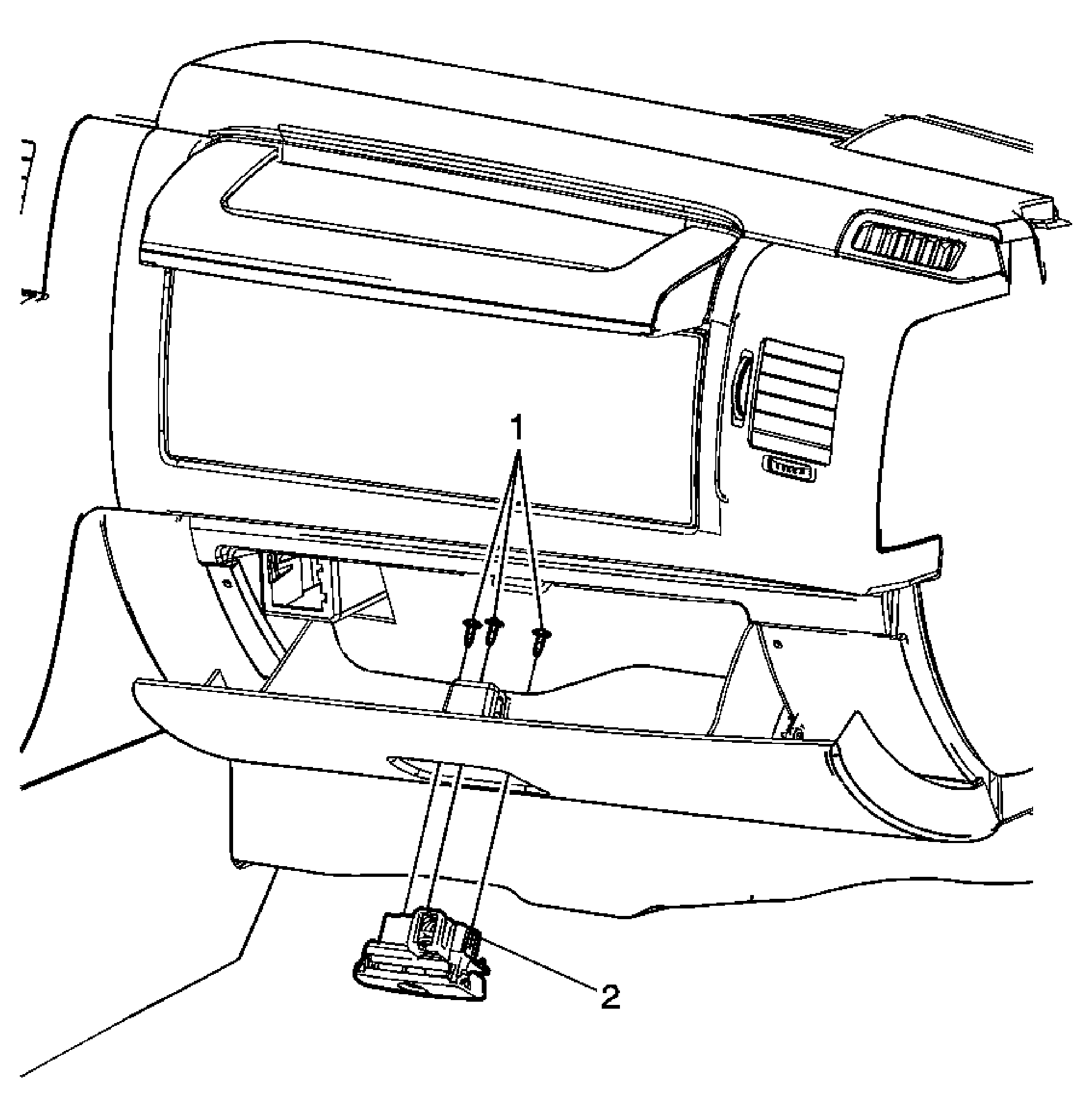

Fig 1: Instrument Panel Compartment Door Latch Release Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Open the instrument panel compartment door.
1	Instrument Panel Compartment Door Latch Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten:  2.5 N.m (22 lb in)
2	Instrument Panel Compartment Door Latch
