Instrument Panel Cluster Trim Plate Bezel Replacement

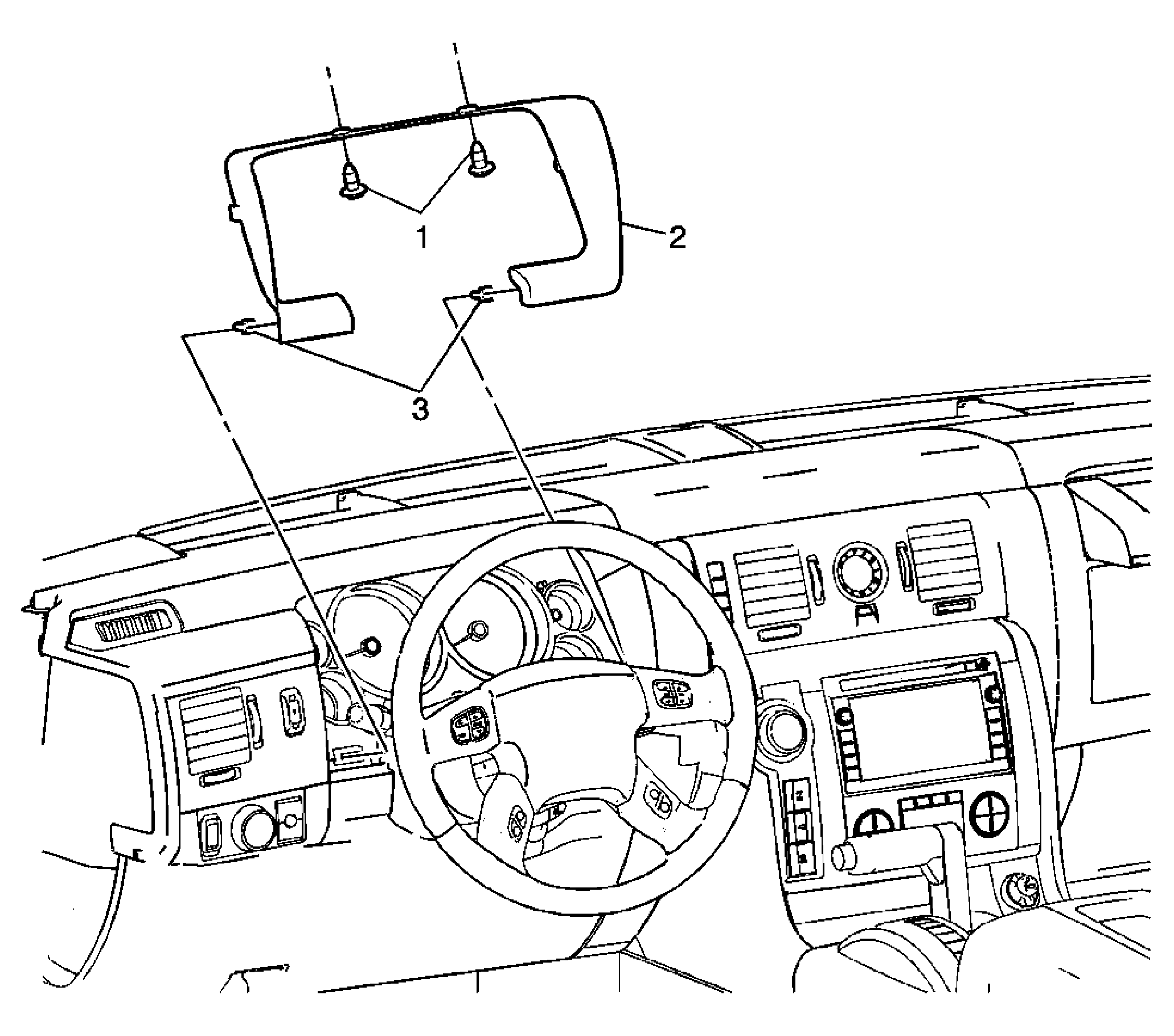

Fig 1: Instrument Panel Cluster Trim Plate Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Move the steering wheel to its lowest possible position.
1	Instrument Panel Cluster Trim Plate Bezel Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten:  2.5 N.m (22 lb in)
2	Instrument Panel Cluster Trim Plate Bezel Assembly
3	Retainer Clip (Qty: 4)
