Instrument Cluster Schematics
Fig 1: Power, Ground and Driver Information Switch
Courtesy of GENERAL MOTORS CORP.

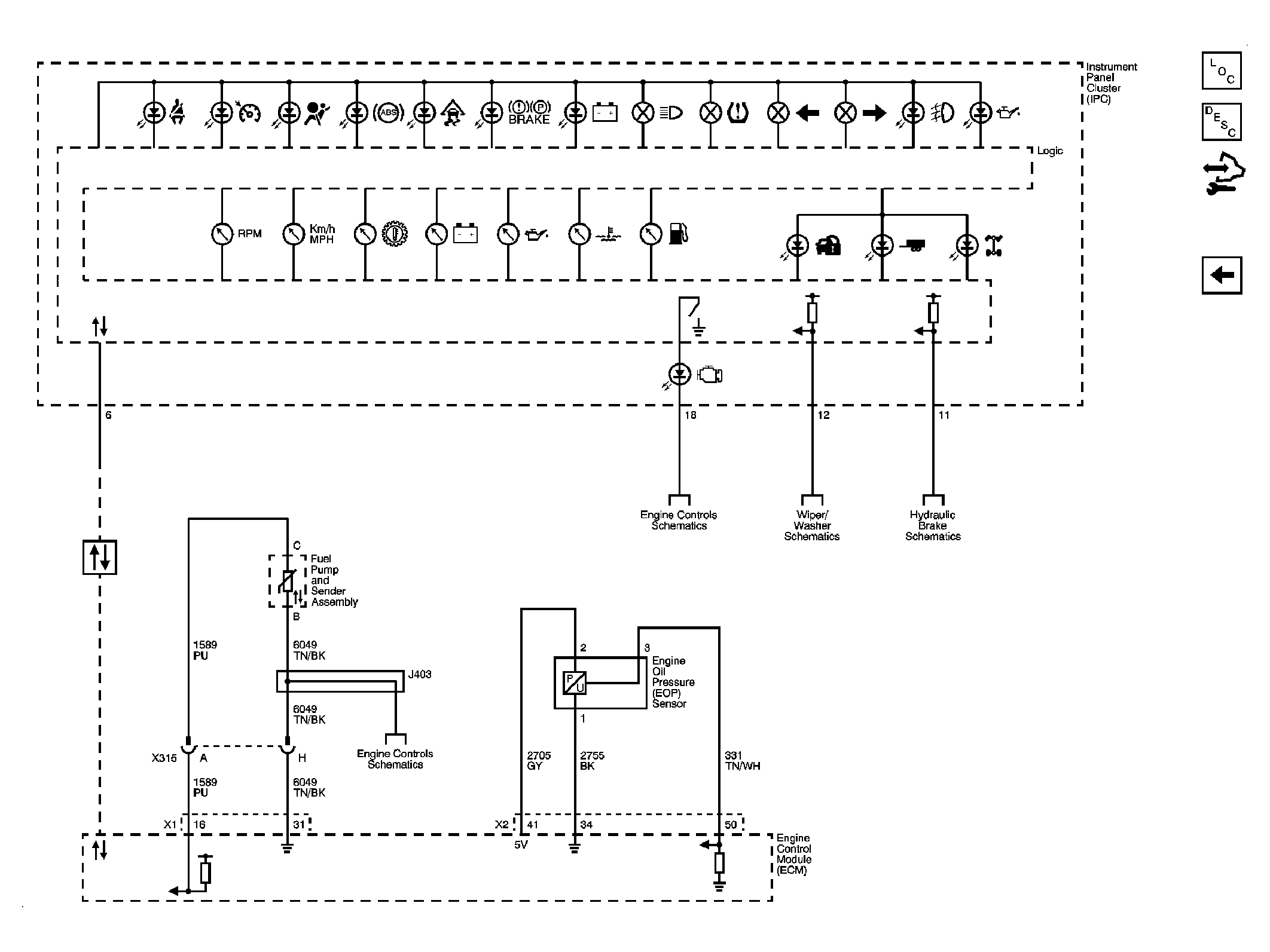

Fig 2: Indicators
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
