Driveline Disassembled Views

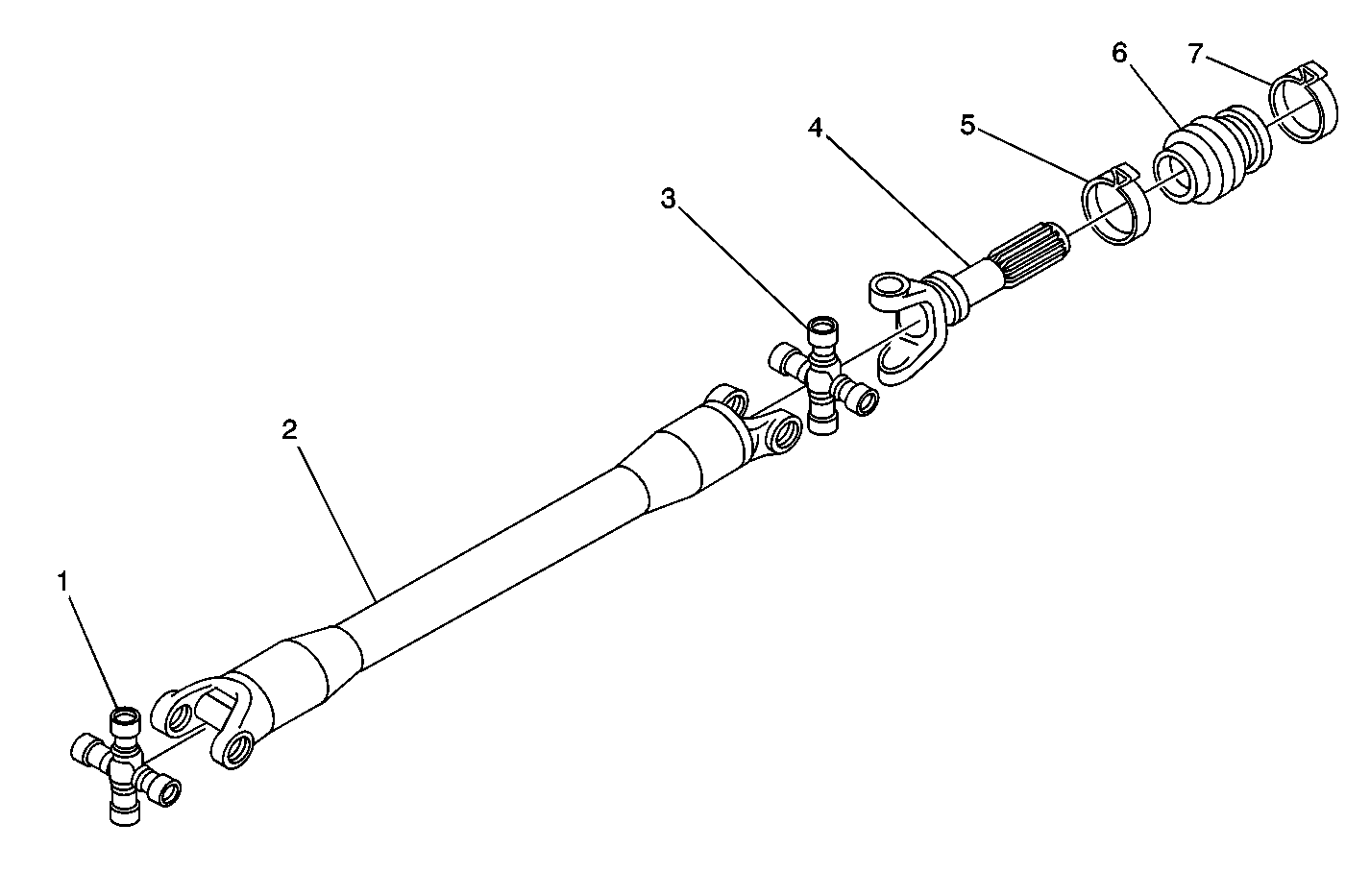

Fig 1: Front Propeller Shaft Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Propeller Shaft Universal Joint
2	Propeller Shaft Tube
3	Propeller Shaft Universal Joint
4	Propeller Shaft Slip Yoke
5	Propeller Shaft Rear Slip Yoke Boot Clamp - Front
6	Propeller Shaft Rear Slip Yoke Boot
7	Propeller Shaft Rear Slip Yoke Boot Clamp - Rear

Fig 2: One-Piece Propeller Shaft Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Propeller Shaft Slip Yoke
2	Propeller Shaft Universal Joint Spider Bearing Retainer Ring
3	Propeller Shaft Universal Joint
4	Propeller Shaft Tube
5	Propeller Shaft Universal Joint Spider Bearing Retainer Ring
6	Propeller Shaft Universal Joint
7	Propeller Shaft Bearing Retainer
8	Propeller Shaft Bearing Retainer Bolt
