Removal Procedure

IMPORTANT: Make note of the routing in order to aid in reassembly.

Raise and support the vehicle.

Fig 1: Rear Axle Vent Hose & Vent Tube

GM796012

Courtesy of GENERAL MOTORS CORP.

Remove the vent hose (1) from the clip at the top of the rear axle (3).
Remove the vent hose (1) from the vent tube (4).

Fig 2: Rear Axle Vent Hose Clip

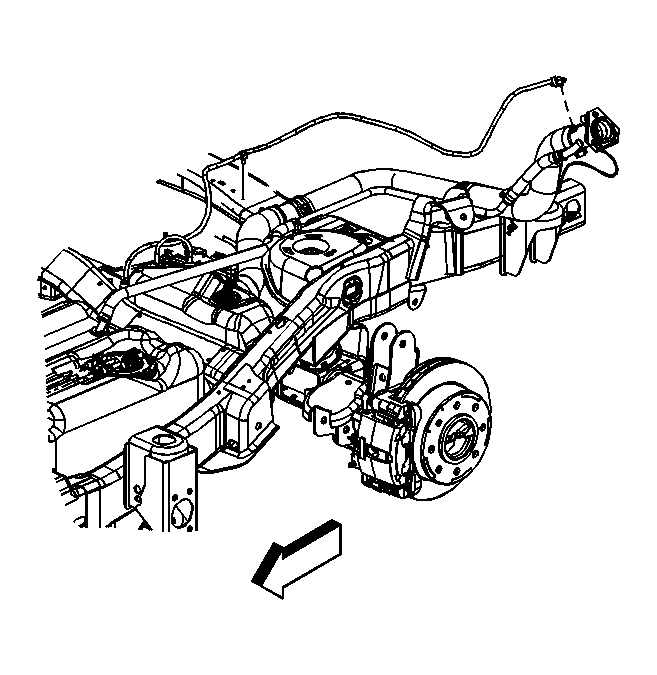

GM796011

Courtesy of GENERAL MOTORS CORP.

Remove the vent hose clip from the frame.

Fig 3: Rear Axle Vent Hose

GM796010

Courtesy of GENERAL MOTORS CORP.

Remove the vent hose clip (2) from the tab on the filler neck (1).
Remove the vent hose from the vehicle.
