Front Drive Axle Bearing Wear (Tapered): Brinelling

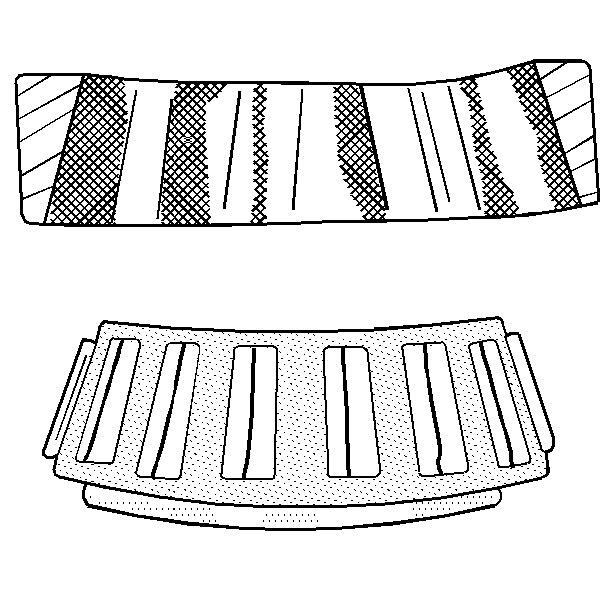

Fig 1: Identifying Brinelling
GM1466Courtesy of GENERAL MOTORS CORP.

Surface indentations in the race way caused by the rollers under impact loading or caused from vibration while the bearing is not rotating. Replace a rough or noisy bearing.
