Heated/Cooled Seat Schematics

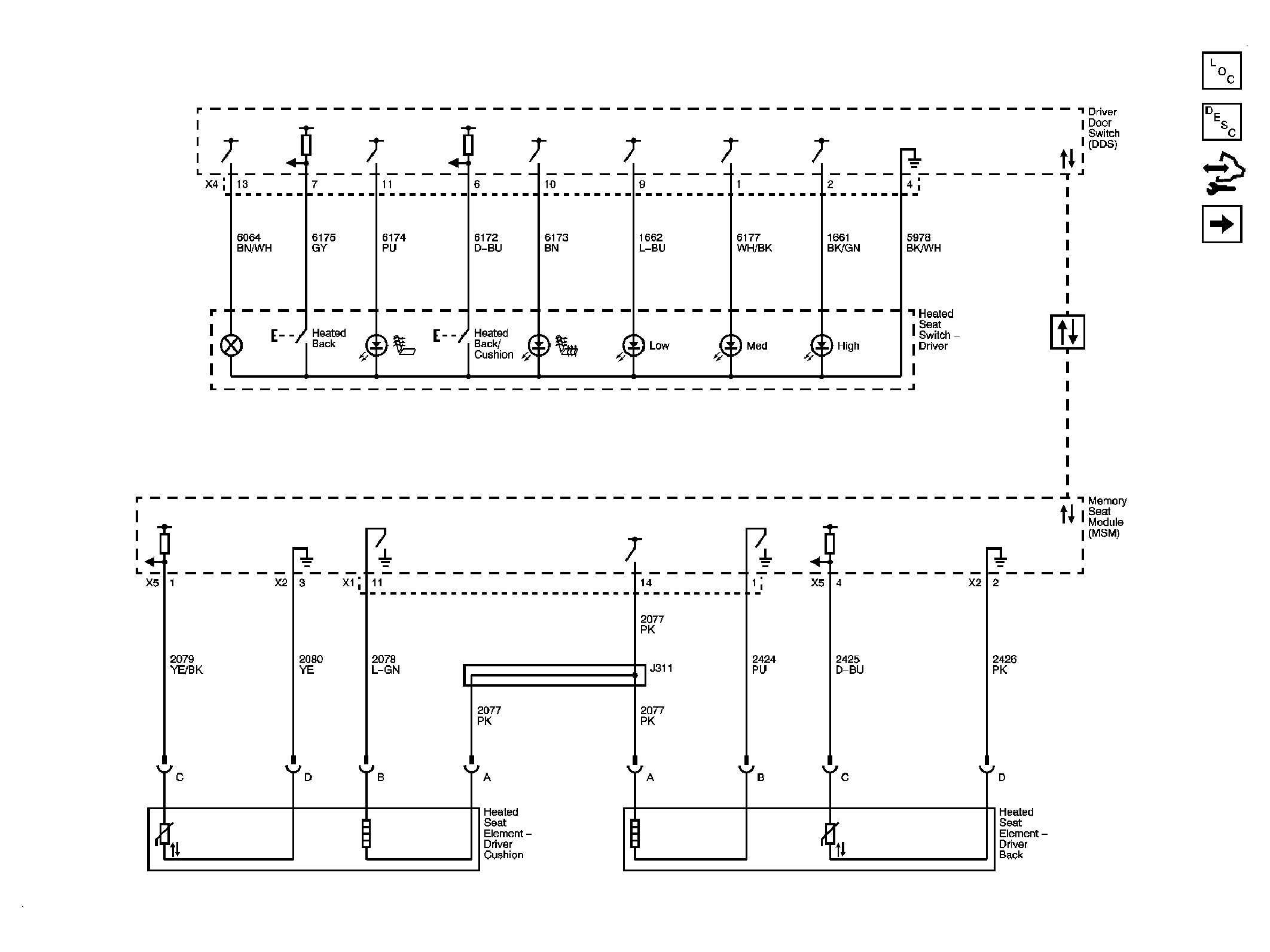

Fig 1: Heated Seat - Driver
GM1955326Courtesy of GENERAL MOTORS CORP.

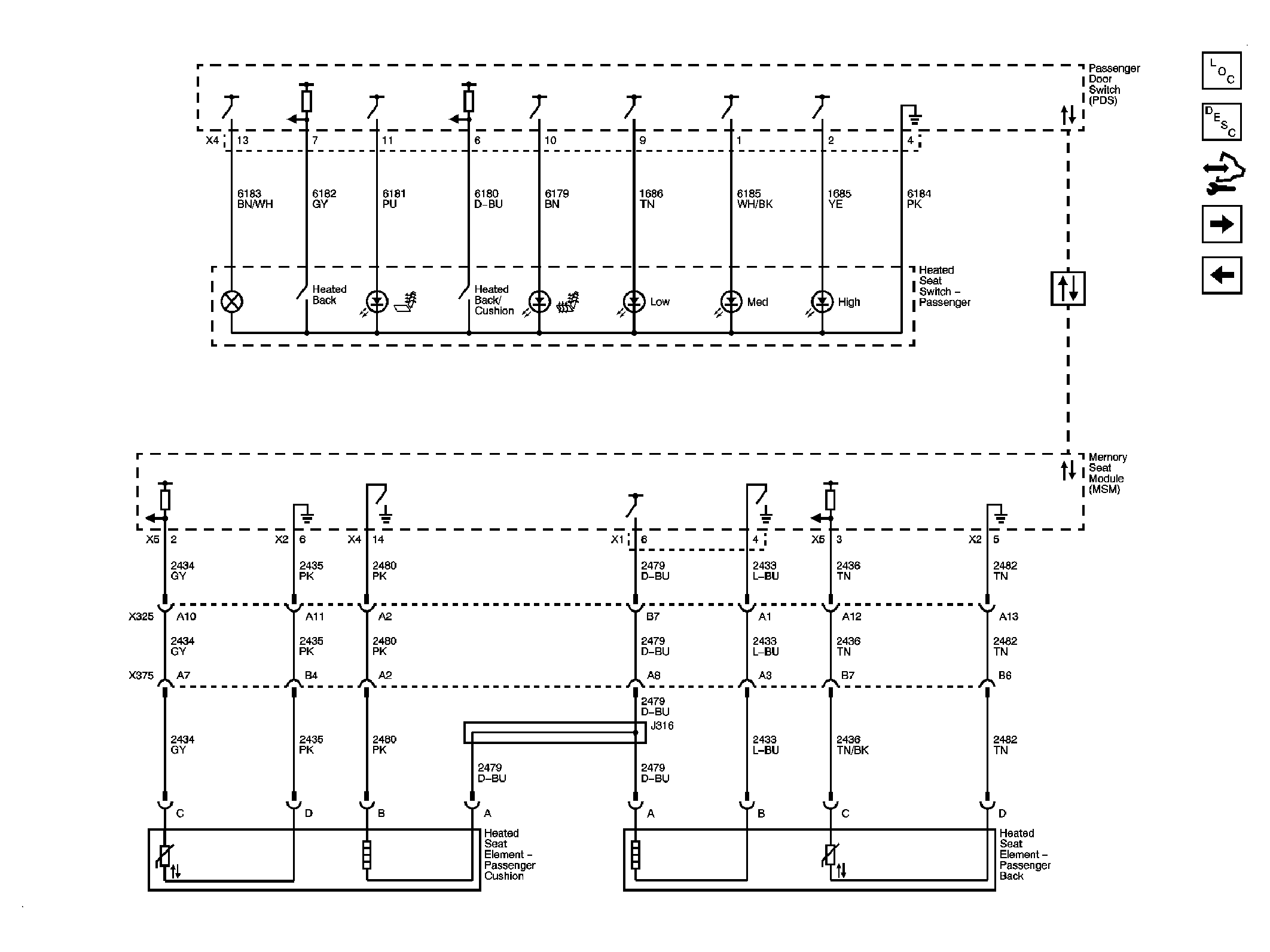

Fig 2: Heated Seat - Passenger
GM1955328Courtesy of GENERAL MOTORS CORP.

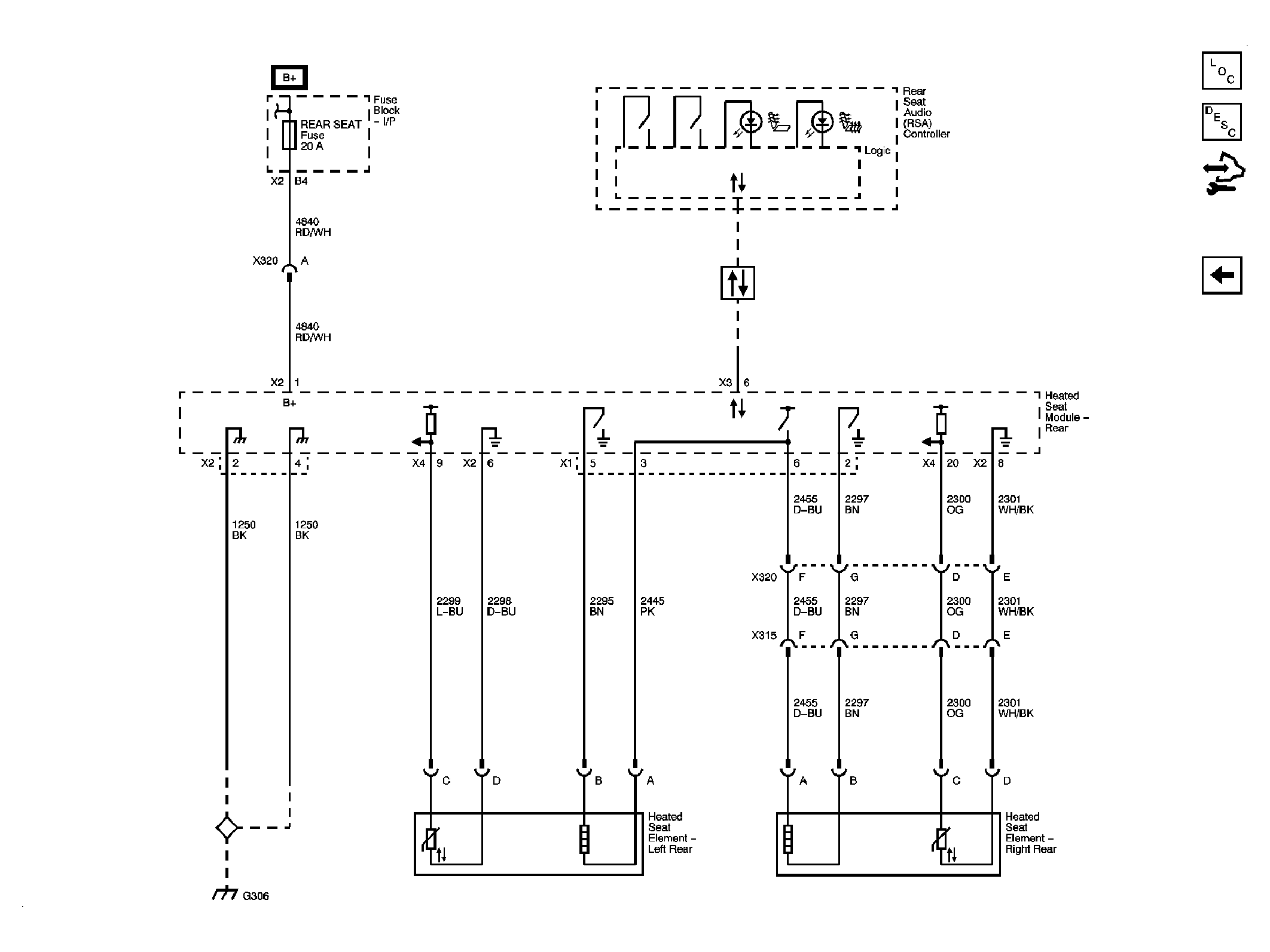

Fig 3: Heated Seat - Rear
GM1955333Courtesy of GENERAL MOTORS CORP.
