Installation Procedure

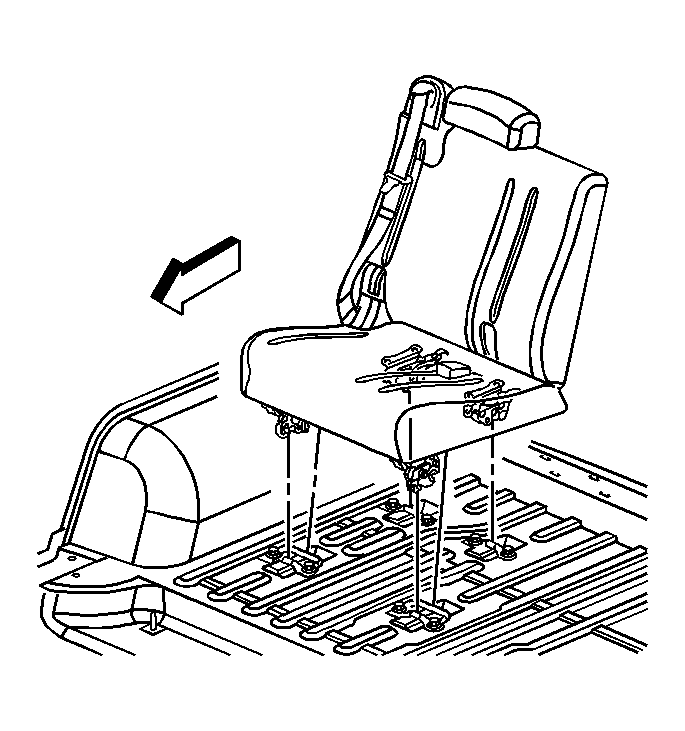

    Fig 1: Rear No. 2 Seat
    GM833552Courtesy of GENERAL MOTORS CORP.
  1. Install the seat into the vehicle.
  2. Align the seat attaching points with the slots in the floor rail.
  3. Roll the seat back and down in order to secure the seat into place.
