Driver Seat Schematics

Fig 1: Module Power, Ground, Serial Data Memory Switch
GM1955300Courtesy of GENERAL MOTORS CORP.
Fig 2: Seat Adjuster Switches
GM1955304Courtesy of GENERAL MOTORS CORP.

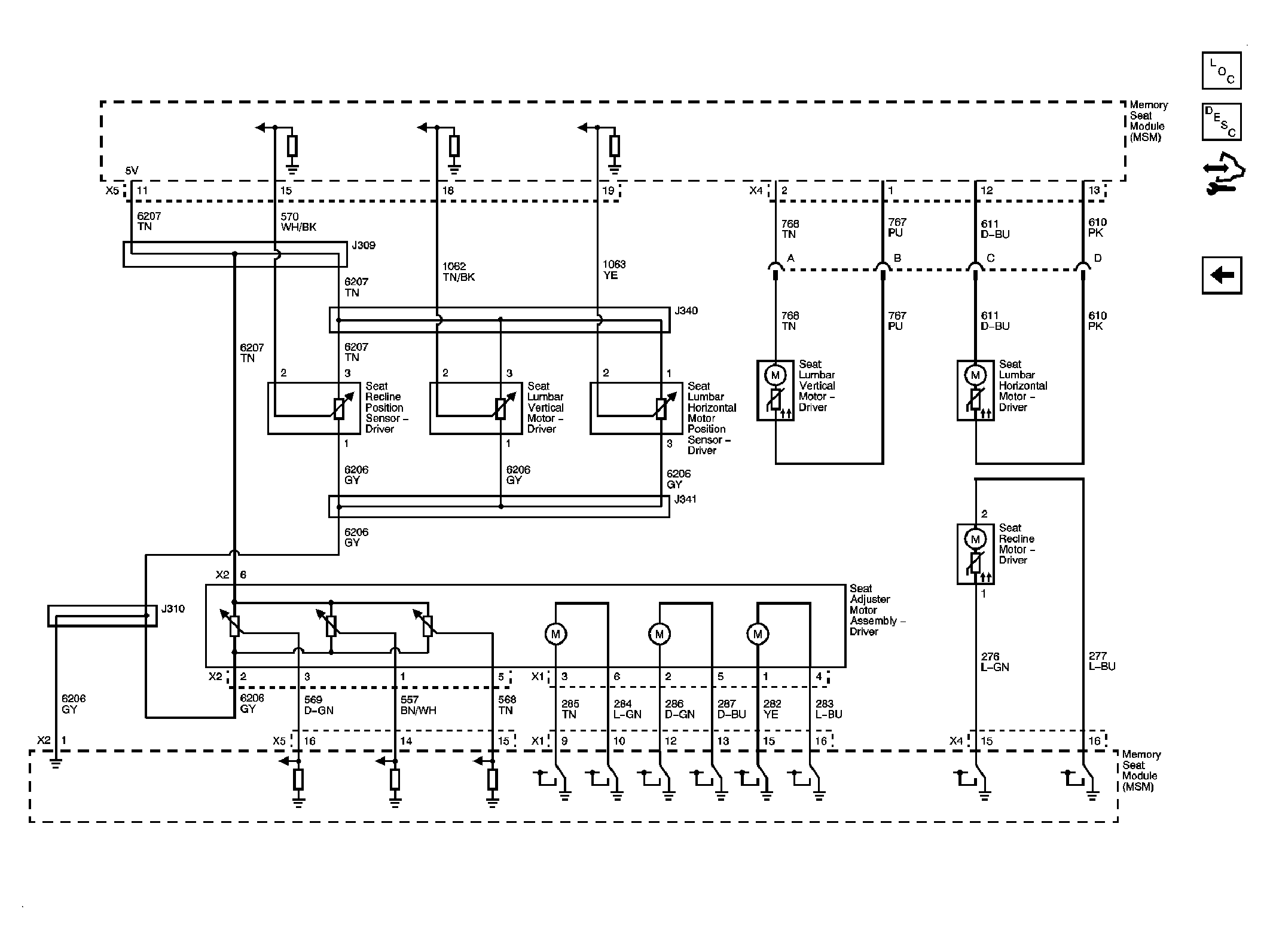

Fig 3: Motors and Position Sensors
GM1955306Courtesy of GENERAL MOTORS CORP.
