Outside Rearview Mirror Schematics

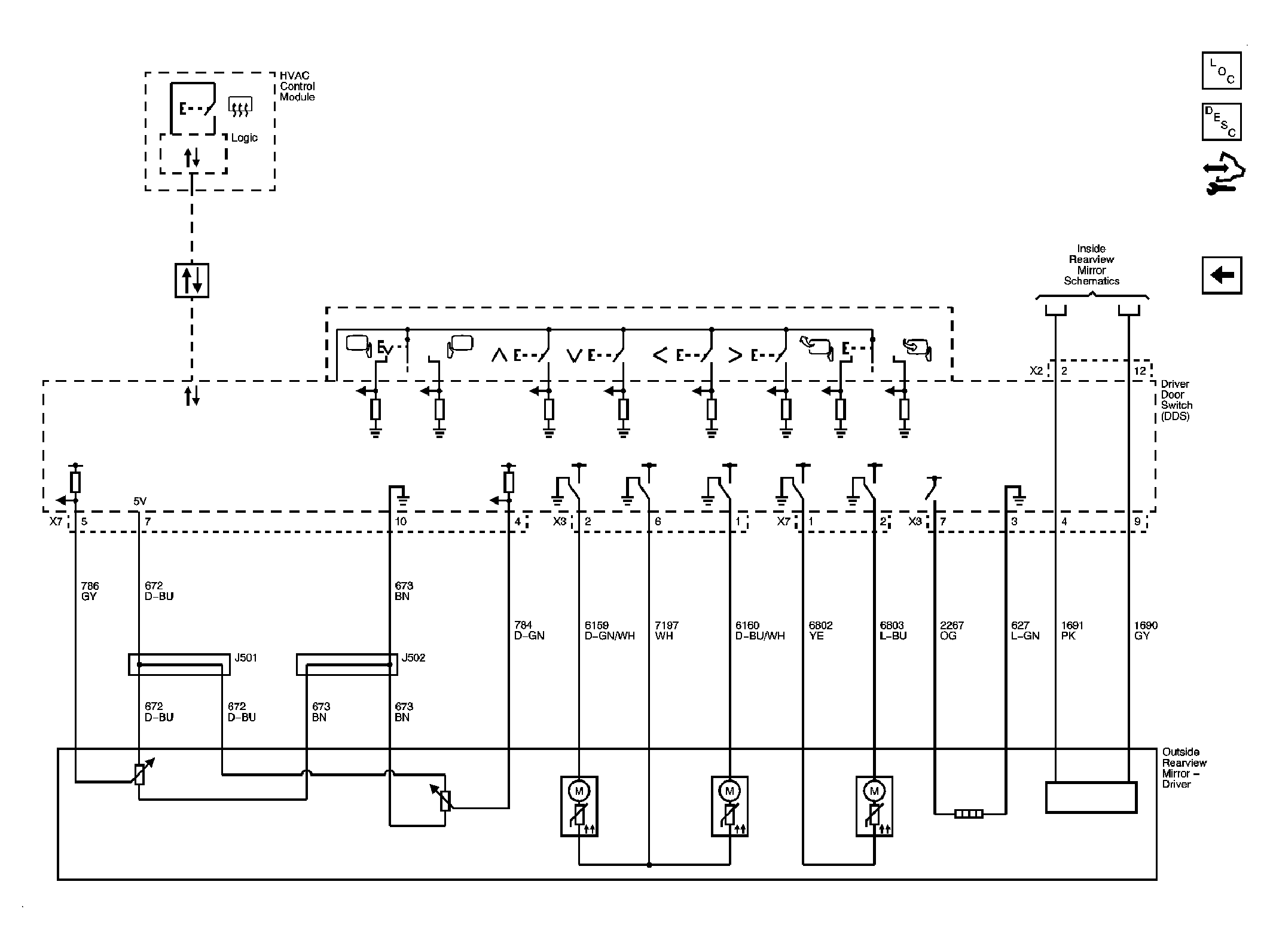

Fig 1: Outside Rearview Mirror Schematic - Driver

GM1961003

Courtesy of GENERAL MOTORS CORP.

Fig 2: Outside Rearview Mirror Schematic - Passenger

GM1961005

Courtesy of GENERAL MOTORS CORP.
