Removal Procedure

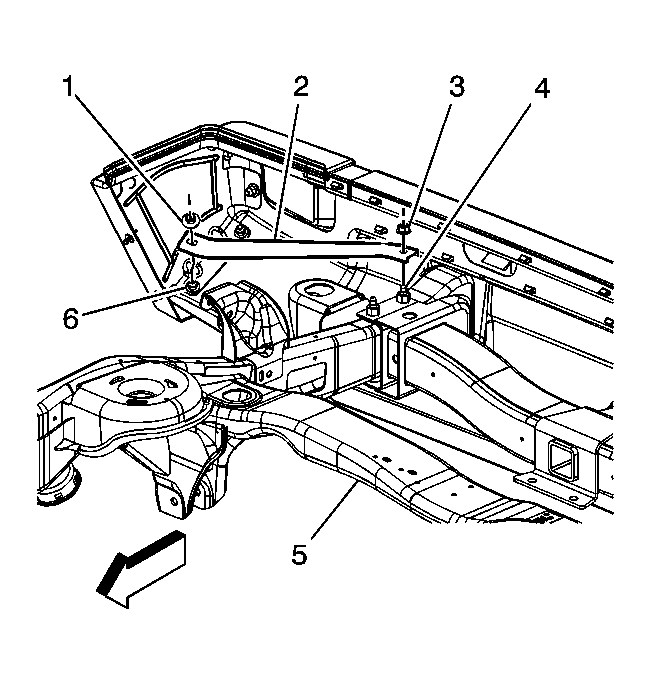

    Fig 1: Reinforcement Bar & Related Components
    GM1453817Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear bumper. Refer to Rear Bumper Replacement (SUT) or Rear Bumper Replacement (SUV) .
  2. Remove the bolts (4) from the trailer hitch to frame (5).
    3. Fig 2: Air Suspension Compressor Bracket
    GM1467102Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 bolts (1) from the rear edge of the air suspension compressor bracket (2).
  4. Disconnect the electrical harness conduit from the inside of the trailer hitch.
    5. Fig 3: Trailer Hitch
    GM796194Courtesy of GENERAL MOTORS CORP.
  5. With the aid of an assistant, remove the trailer hitch from the frame rail.
