Removal Procedure

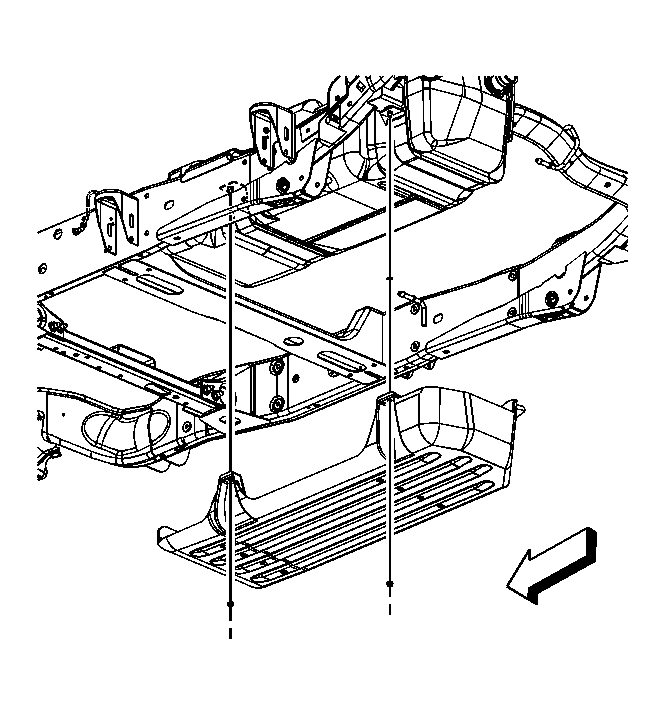

    Fig 1: View Of Fuel Tank Shield & Mounting Nuts
    GM1823266Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the outer tank shield mounting nuts.
  3. Remove the inner fuel tank shield mounting nuts.
  4. With help of an assistant, remove the fuel tank shield from the vehicle.
