Installation Procedure

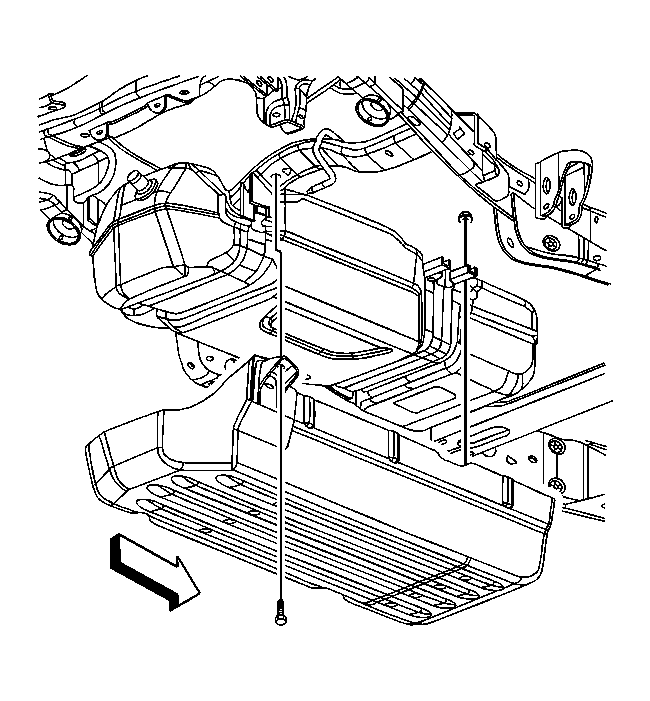

    Fig 1: View Of Inner & Outer Shield Mounting Nuts
    GM1823271Courtesy of GENERAL MOTORS CORP.
  1. With the help for an assistant, position the fuel tank shield on the fuel tank.
  2. Hand tighten inner fuel tank shield mounting nut.
  3. Hand tighten the outer fuel tank shield mounting nut.
    4. NOTE: Refer to Fastener Notice .
  4. Tighten the fuel tank shield nuts.
  5. Tighten:
    • Tighten the 6 mm nuts to 9 N.m (80 lb in).
    • Tighten the 8 mm nuts to 18 N.m (13 lb ft).
    • Tighten the fuel tank shield bolt to 25 N.m (18 lb ft).

    Lower the vehicle.
