Catalytic Converter Guard Replacement

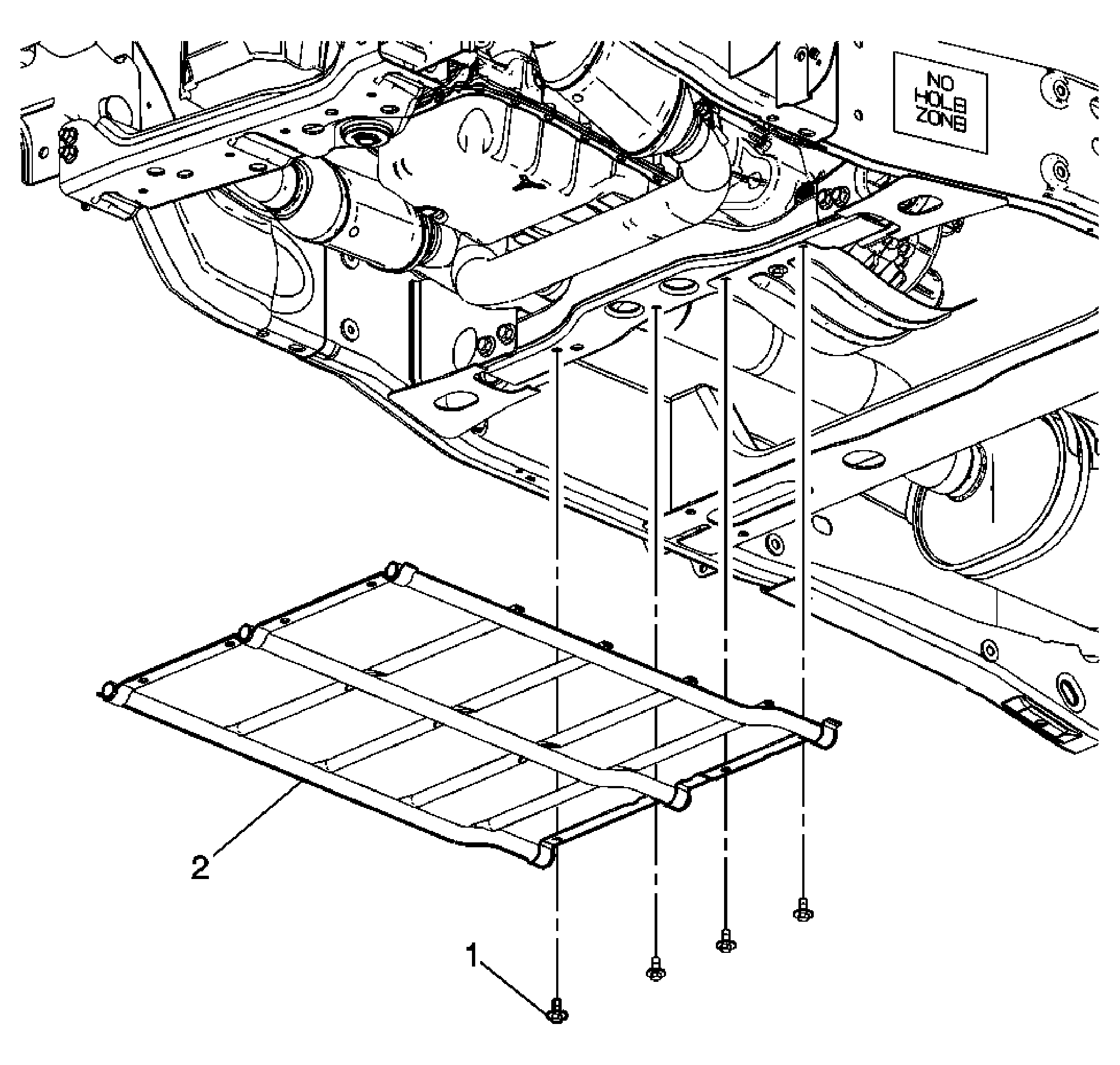

Fig 1: Catalytic Converter Guard Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the engine protection shield. Refer to Engine Protection Shield Replacement .
1	Catalytic Converter Guard Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten:  30 N.m (22 lb ft)
2	Catalytic Converter Guard
