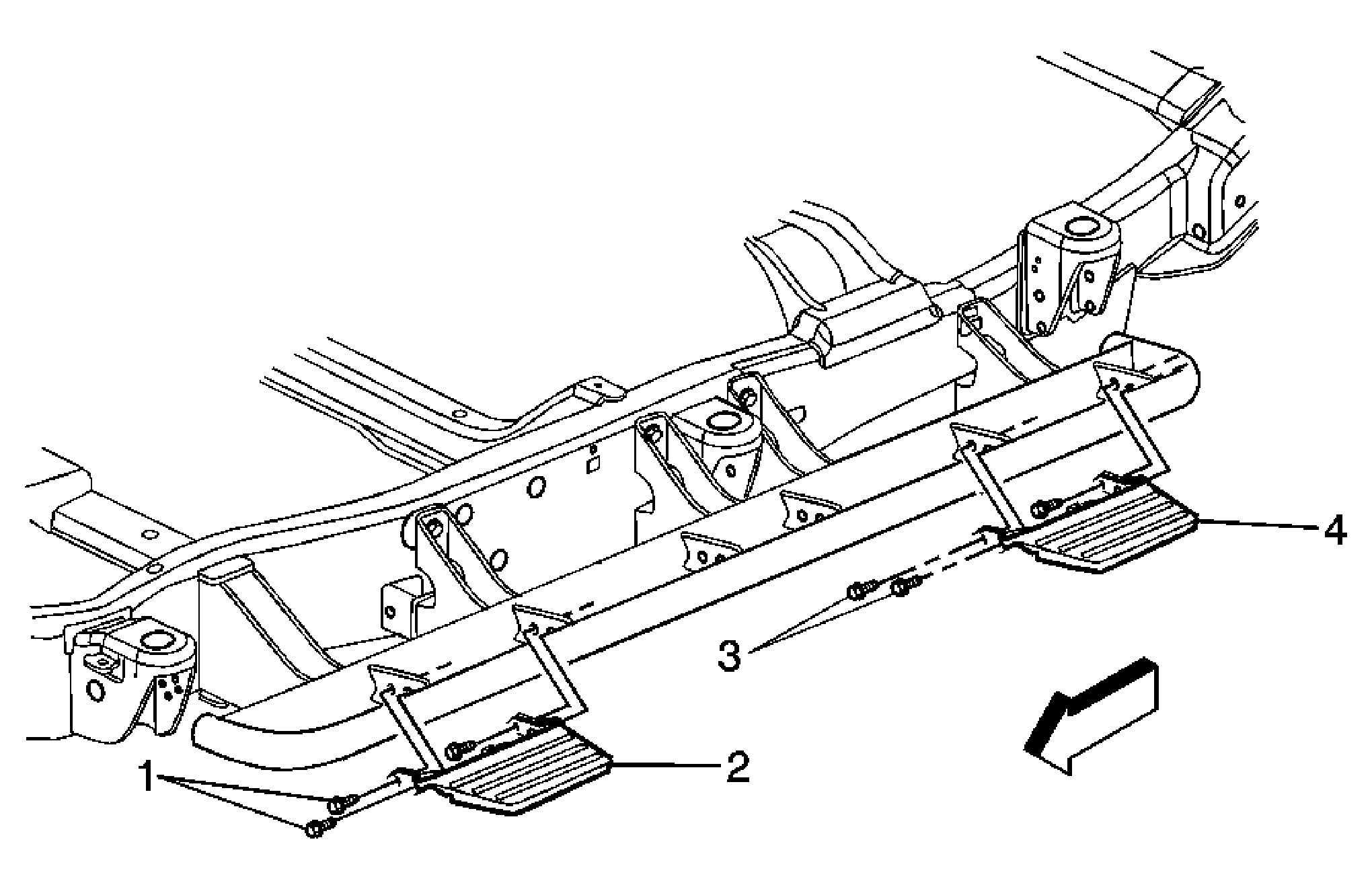

| 1 |
Assist Step Bolt (Qty: 4)
Tighten:
85 N.m (63 lb ft)
|
| 2 |
Front Assist Step Procedure
- Position the ears of the assist step between the rocker protector and the rocker molding.
- Insert the bolts through the flanges of the rocker protector and into the ears on the assist step.
- Install the inboard bolts first and finger tighten.
- Install the outboard bolts last and finger tighten.
- Tighten all the bolts to the above specified torque value.
|
| 3 |
Assist Step Bolt (Qty: 4) Tighten:
85 N.m (63 lb ft)
|
| 4 |
Rear Assist Step Procedure
- Position the ears of the assist step between the rocker protector and the rocker molding.
- Insert the bolts through the flanges of the rocker protector and into the ears on the assist step.
- Install the inboard bolts first and finger tighten.
- Install the outboard bolts last and finger tighten.
- Tighten all the bolts to the above specified torque value.
|
