Installation Procedure

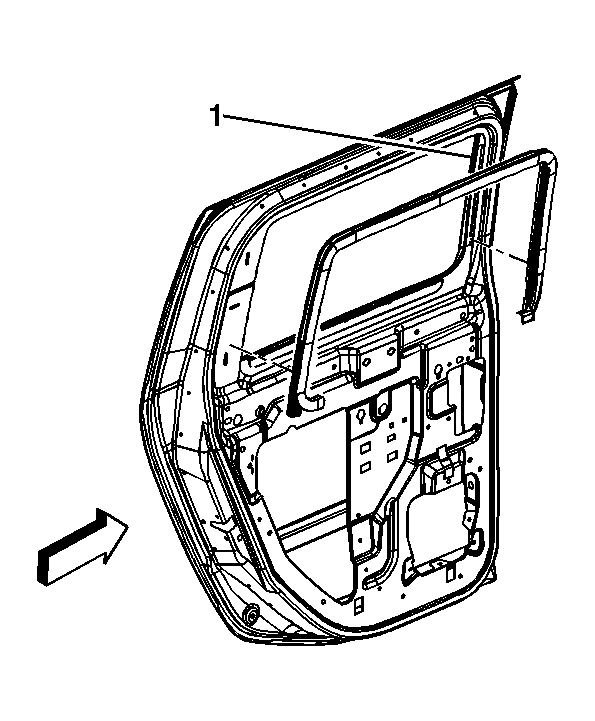

    Fig 1: Rear Door Window Weatherstrip
    GM839411Courtesy of GENERAL MOTORS CORP.
  1. Position the window in the full down position.
  2. Install weatherstrip by pressing the weatherstrip down on the flange in the door frame (1), ensuring that it is fully seated.
