Installation Procedure

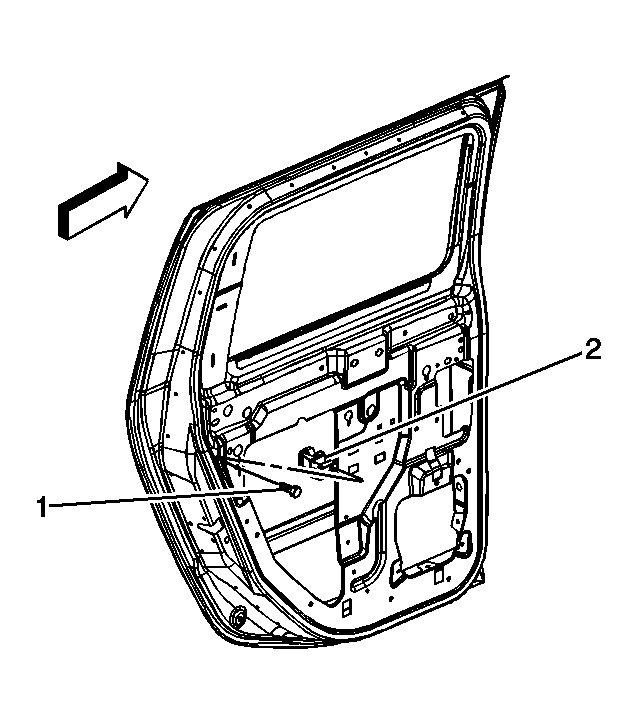

Fig 1: Rear Door Window Stabilizer

Courtesy of GENERAL MOTORS CORP.

With the window in the full up position, position the stabilizer (2) in place inside the door.

NOTE: Refer to Fastener Notice .

Install the fastener (1) retaining the stabilizer to the door.
Tighten: Tighten the fasteners to 9 N.m (7 lb ft).
Install the water deflector. Refer to Front Side Door Water Deflector Replacement .
Install the door trim panel. Refer to Front Side Door Trim Panel Replacement
