Sunshade Retainer Assembly Procedure

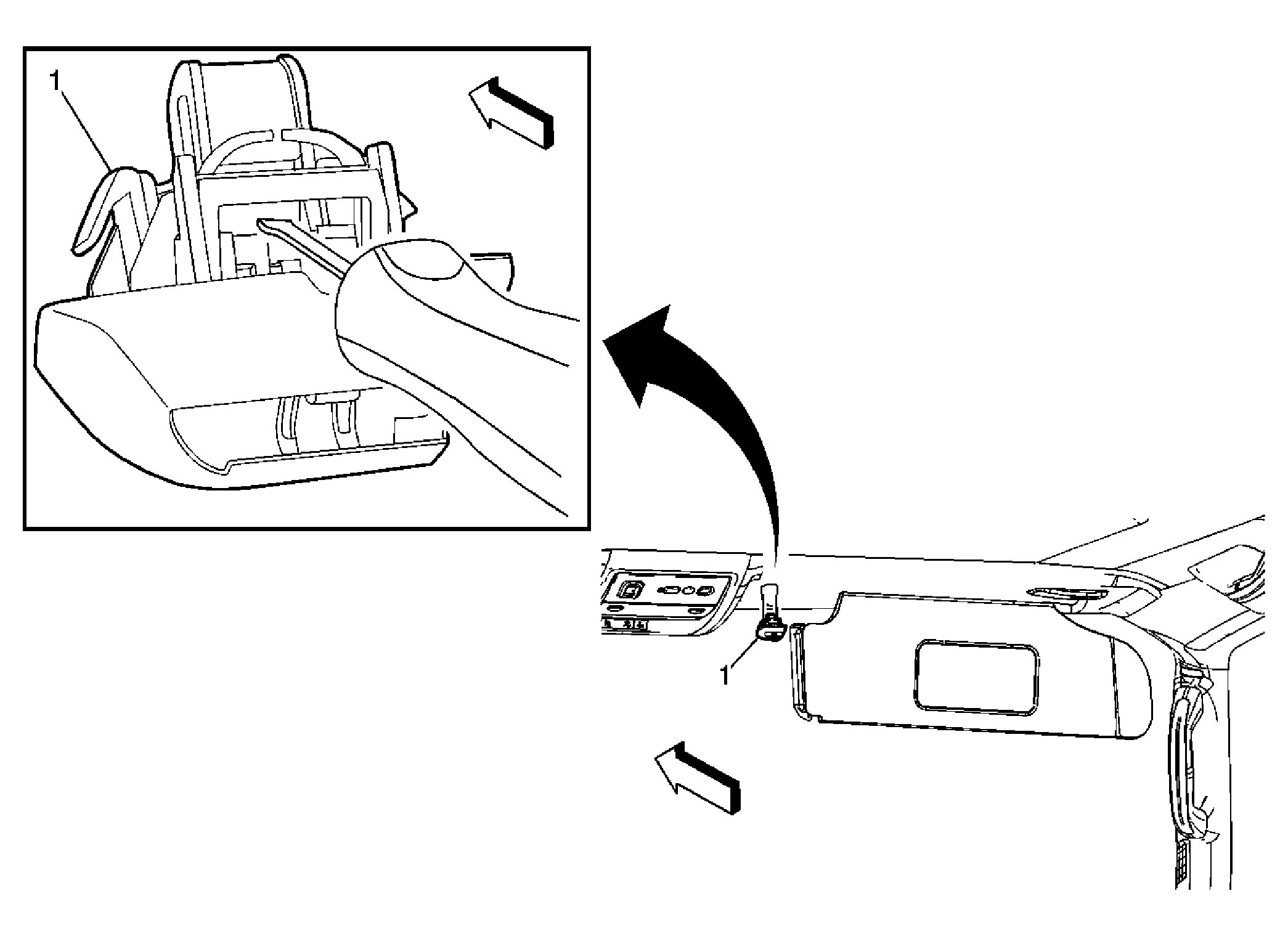

- Insert a suitable flat-bladed tool into the opening at the front of the retainer and push the tool forward at a slight upward angle to contact the retaining clip.
- Press firmly inward in order to disengage the clip from the body.
- Grasp the retainer and pull downward disengaging the retainer from the headliner.
|
