Sunshade Replacement

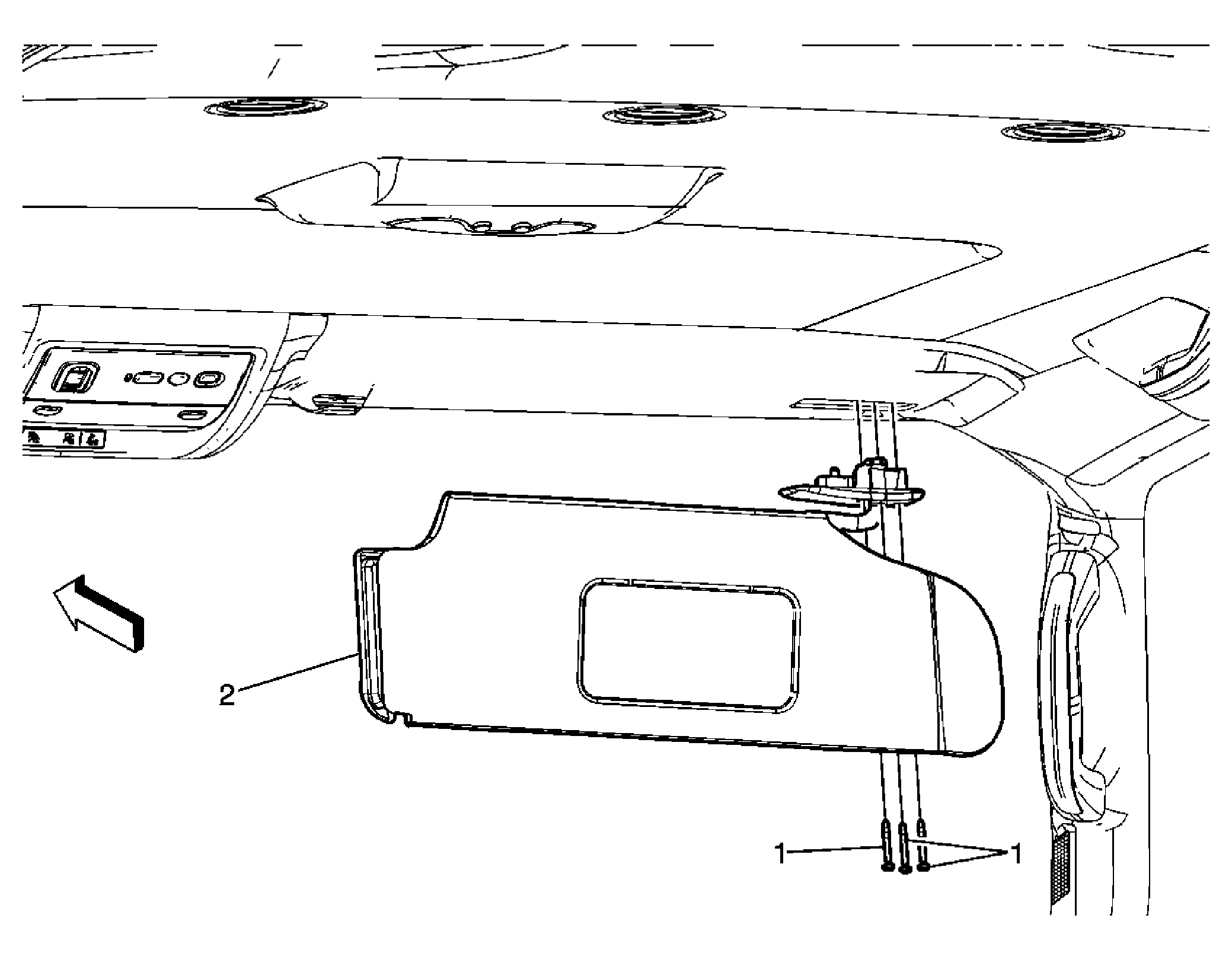

Fig 1: Sunshade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunshade Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Sunshade Assembly Procedure: Disconnect the electrical connector.
