Rear End Finish Panel Replacement

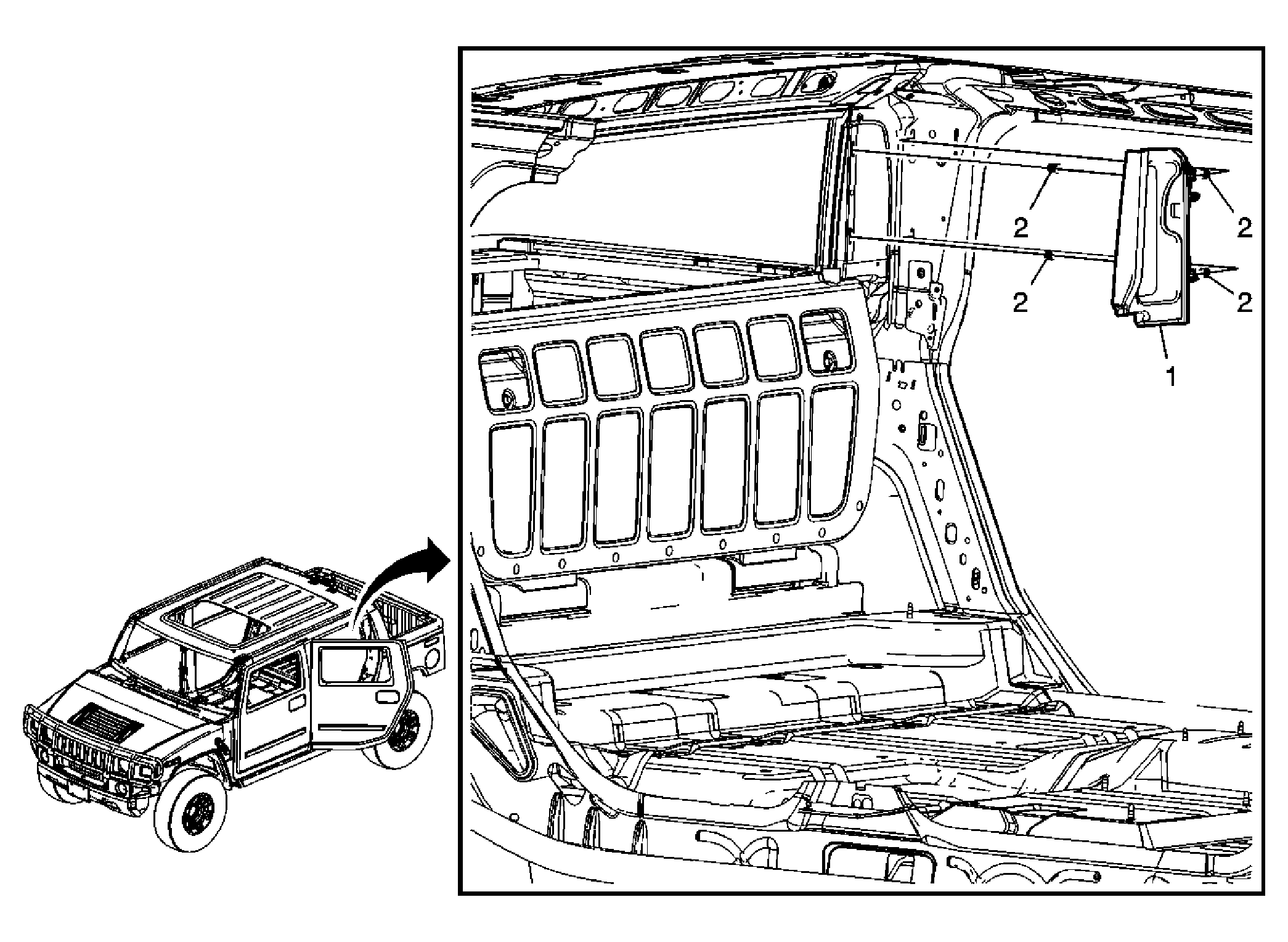

Fig 1: Rear End Finish Panel
GM1959683Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Rear Corner Upper Garnish Molding
Procedure:
Grasp the garnish molding and pull it away from the body disengaging the retainer clips.
2 Retainer Clips (Qty: 4)
