Rear Door Switch Bezel Replacement

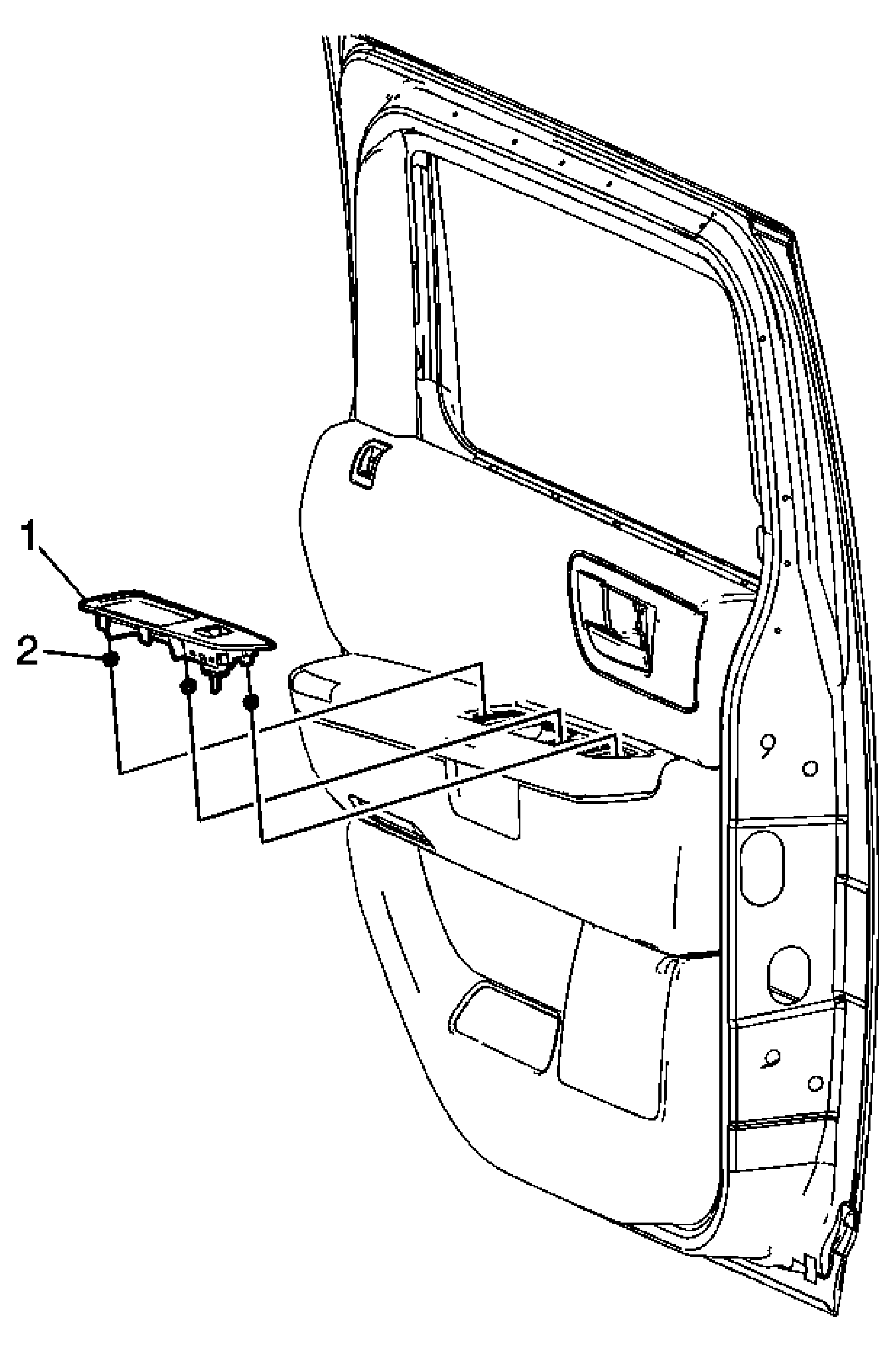

Fig 1: Rear Door Switch Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Door Switch Bezel Procedure Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel. Disconnect the electrical connector. If replacing the switch bezel transfer the switch to the new bezel.
2	Rear Door Switch Bezel Retainer Clip (Qty: 3)

Callout

Component Name

Rear Door Switch Bezel

Procedure

Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel.
Disconnect the electrical connector.
If replacing the switch bezel transfer the switch to the new bezel.

Rear Door Switch Bezel Retainer Clip (Qty: 3)
