Liftgate Sill Trim Plate Replacement

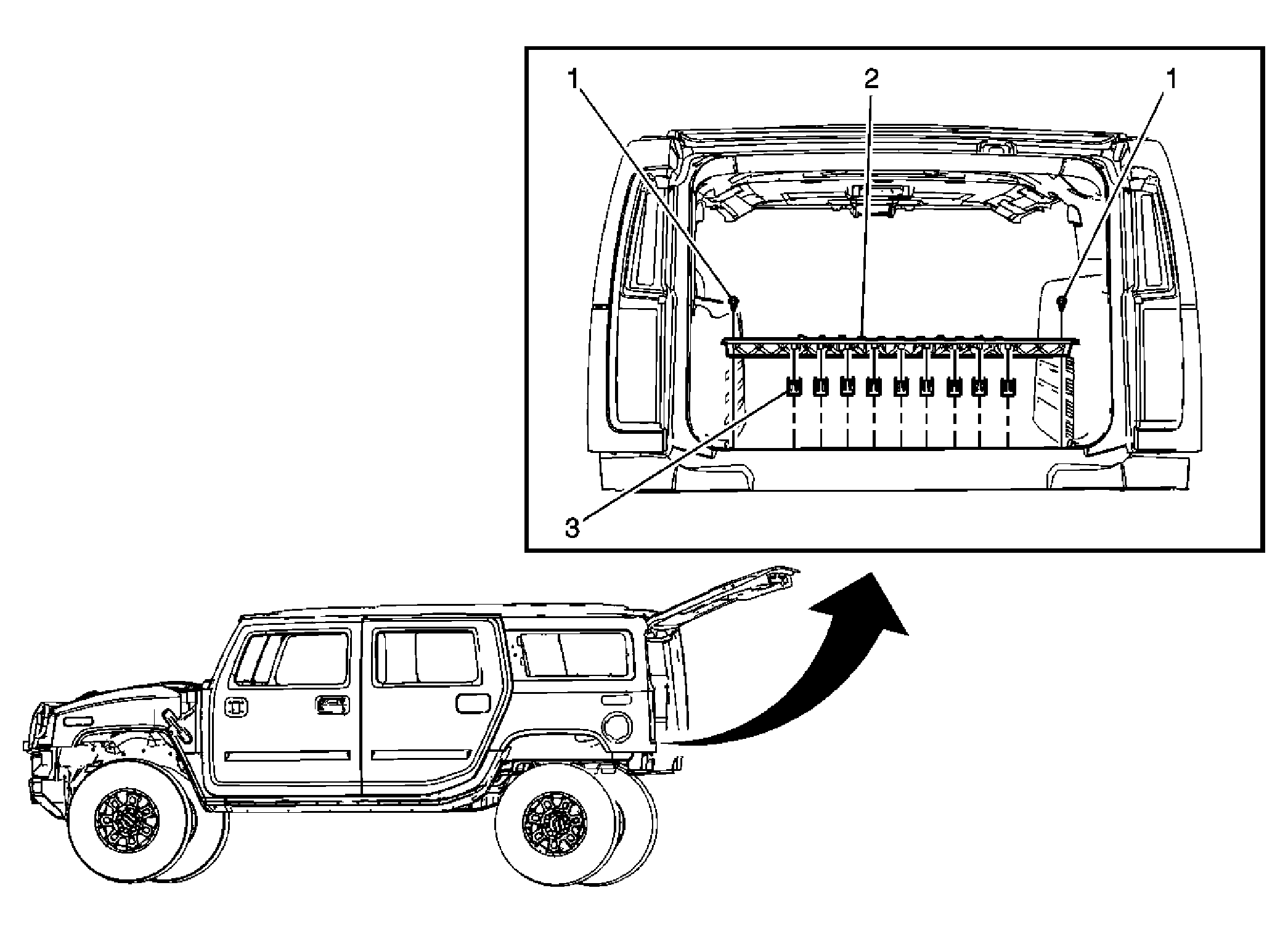

Fig 1: Liftgate Sill Trim Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Sill Trim Plate Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
2	Liftgate Sill Trim Plate Assembly Procedure:  Grasp the liftgate sill trim plate and pull upward disengaging the clips securing it to the body.
3	Retainer Clip (Qty: 9)
