Front Door Switch Bezel Replacement

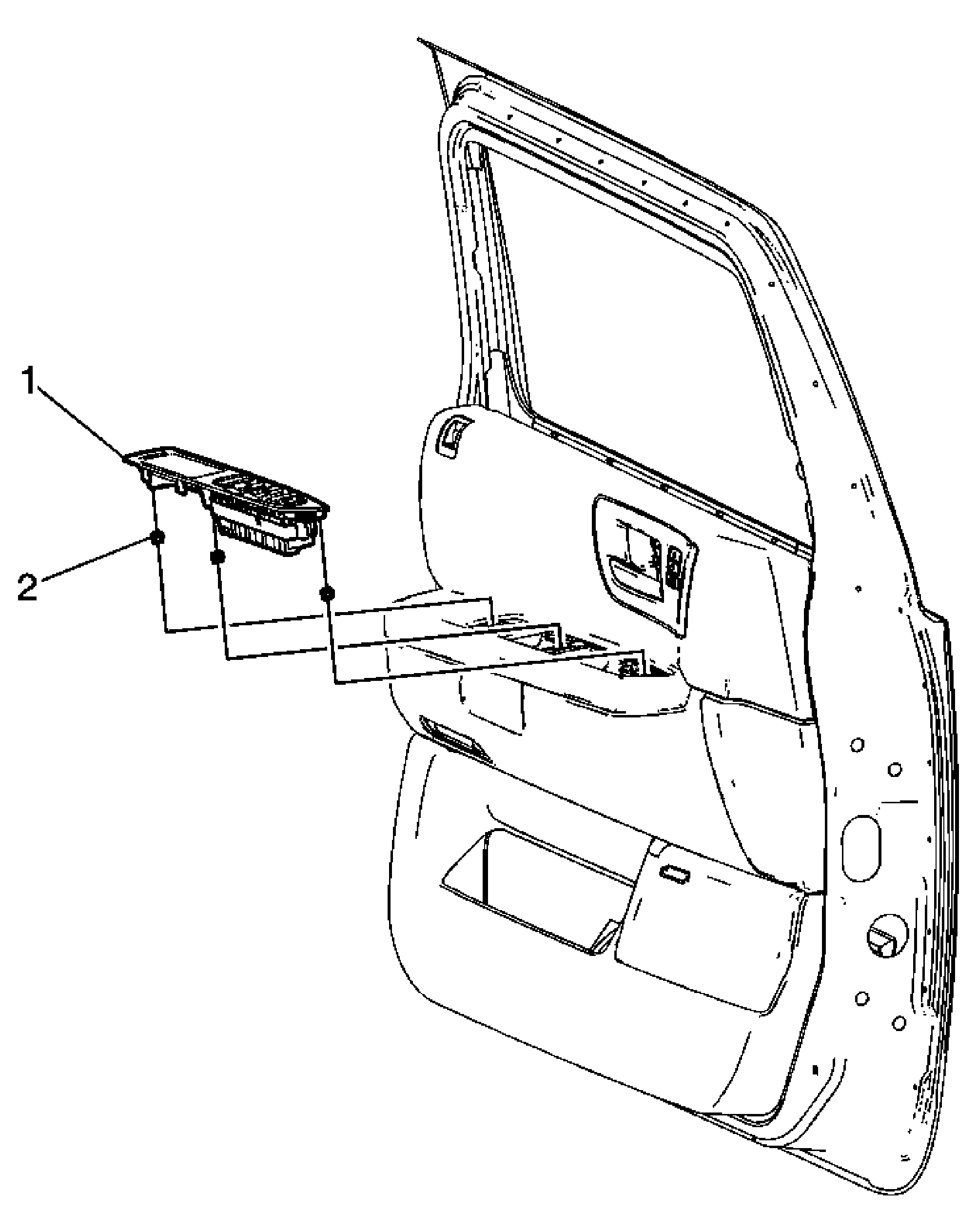

Fig 1: Front Door Switch Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Switch Bezel Procedure Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel. Disconnect the electrical connector. If replacing the switch bezel transfer the switch to the new bezel.
2	Front Door Switch Bezel Retainer Clip (Qty: 3)

Callout

Component Name

Front Door Switch Bezel

Procedure

Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel.
Disconnect the electrical connector.
If replacing the switch bezel transfer the switch to the new bezel.

Front Door Switch Bezel Retainer Clip (Qty: 3)
