Coat Hook Replacement

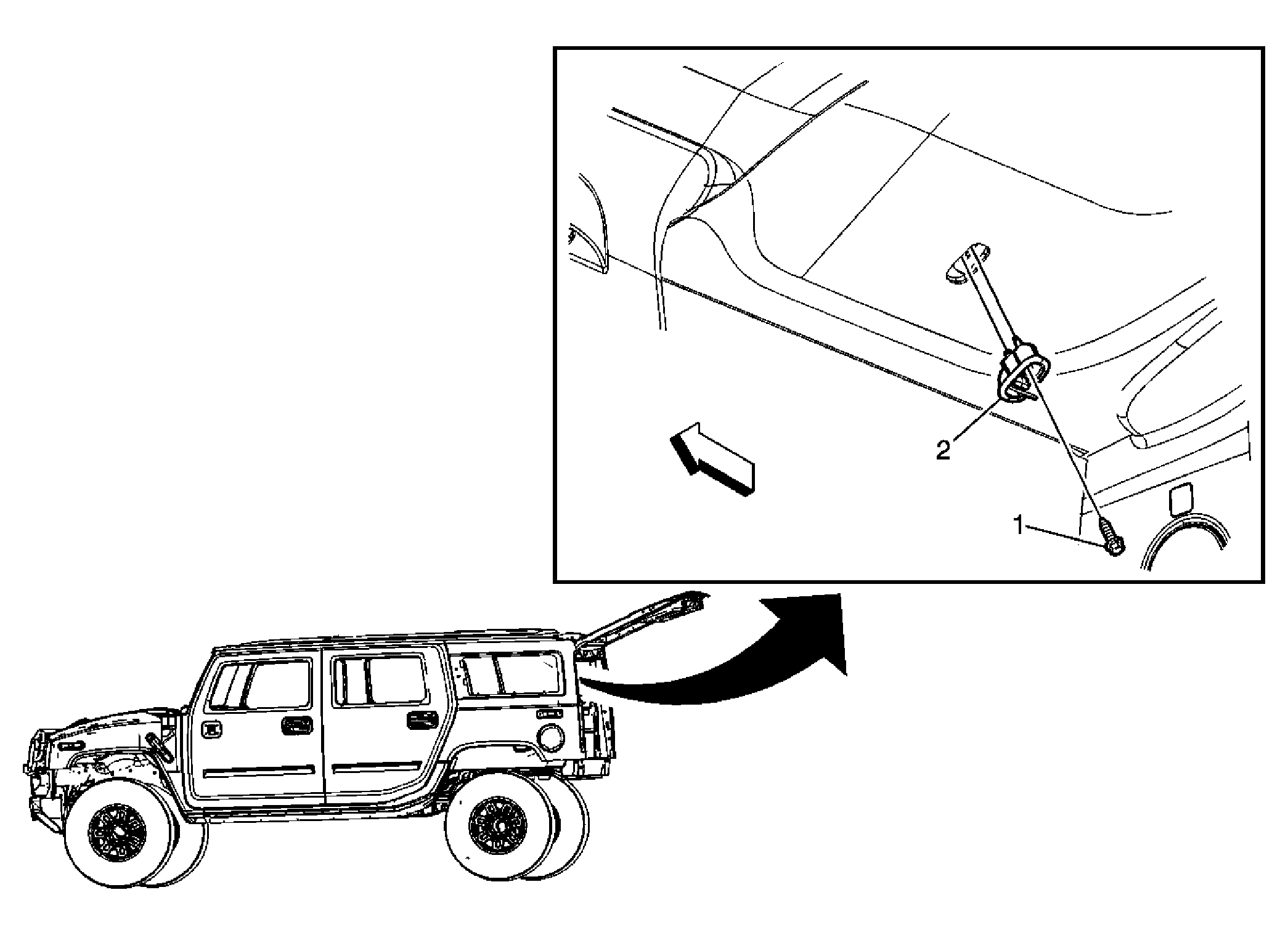

Fig 1: Coat Hook
GM1959636Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Coat Hook Bolt (Qty: 1)
NOTE: Refer to Fastener Notice .

Tighten:  9 N.m (80 lb in)
2 Coat Hook Assembly
