Center Pillar Assist Handle Replacement

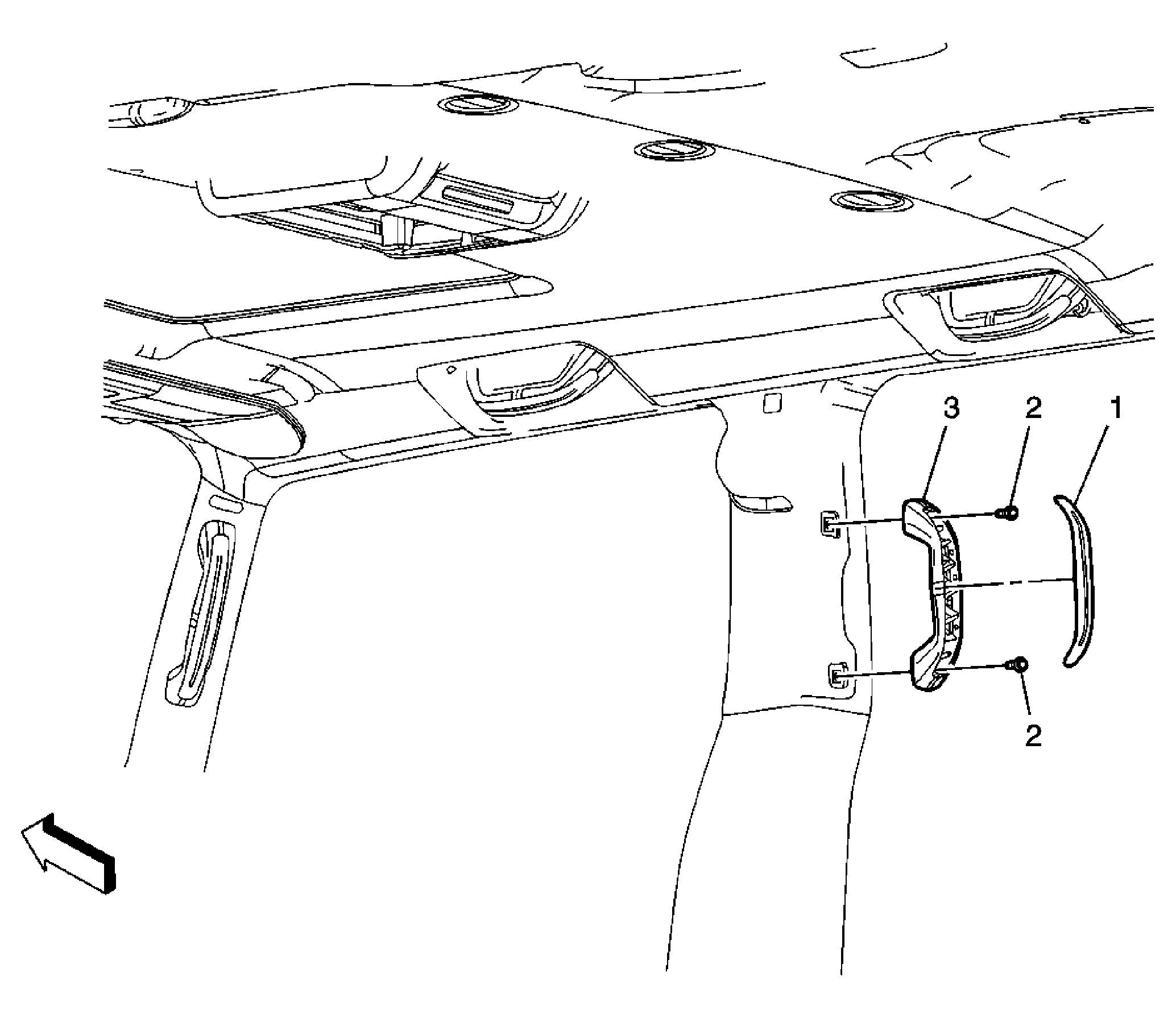

Fig 1: Center Pillar Assist Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Assist Handle Cover Tip:  The assist handle cover will remain attached to the assist handle assembly by a small tether.
2	Assist Handle Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten:  6 N.m (53 lb in)
3	Assist Handle Assembly
