Body Side Trim Panel Storage Pocket Replacement

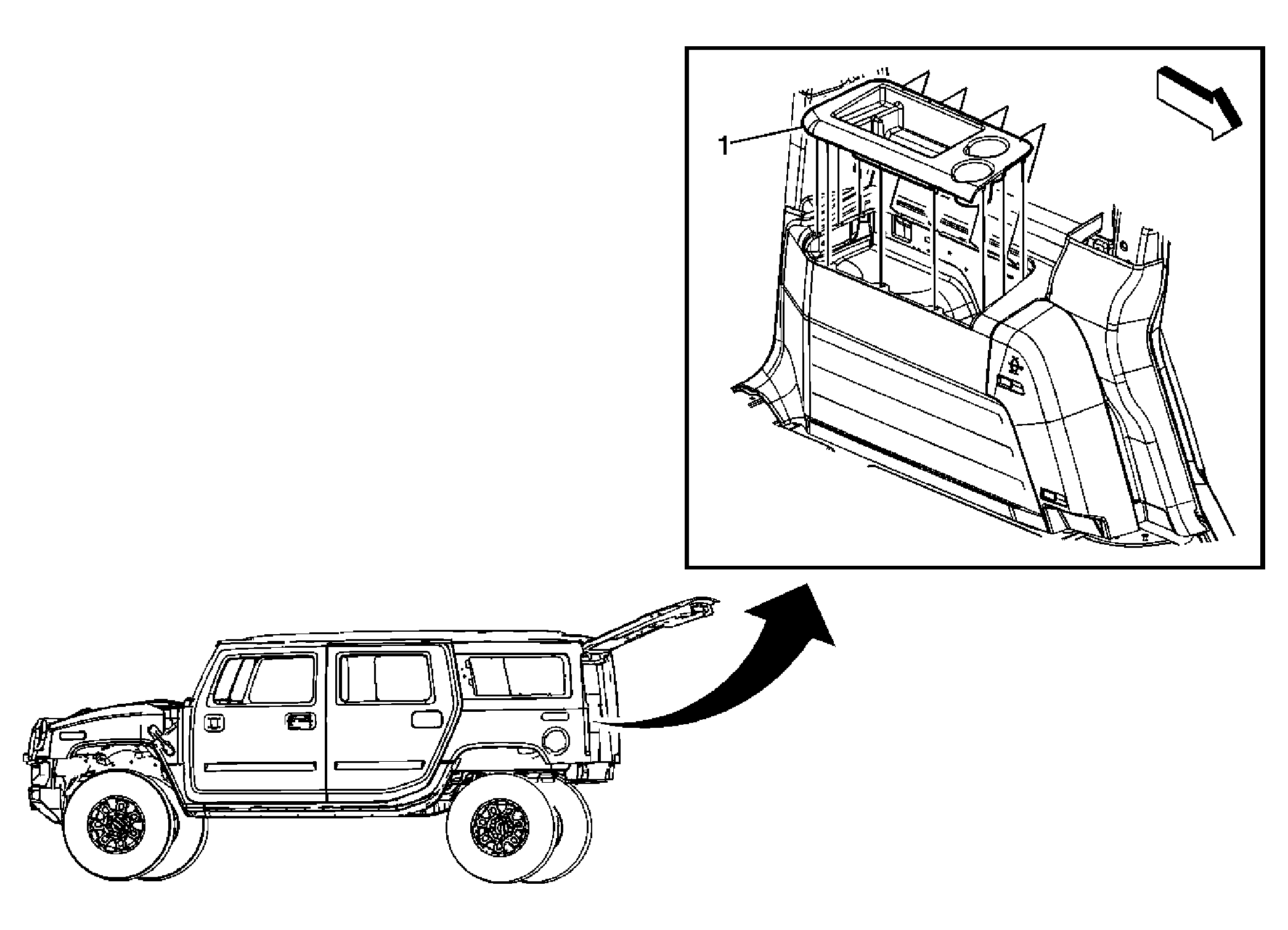

Fig 1: Body Side Trim Panel Storage Pocket

GM1959676

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

1

Body Side Trim Panel Stowage Pocket

Procedure

Grasp the inside edge of the storage pocket and lift upward disengaging the retainers securing the pocket to the body side trim panel.
When reinstalling the storage pocket, align the tabs on the outside edge of the storage pocket to the slots on the body side trim panel before securing the inside edge of the storage pocket to the body side trim panel.

2

Retainer Clip (Qty: 9)
