Body Lock Pillar Trim Replacement

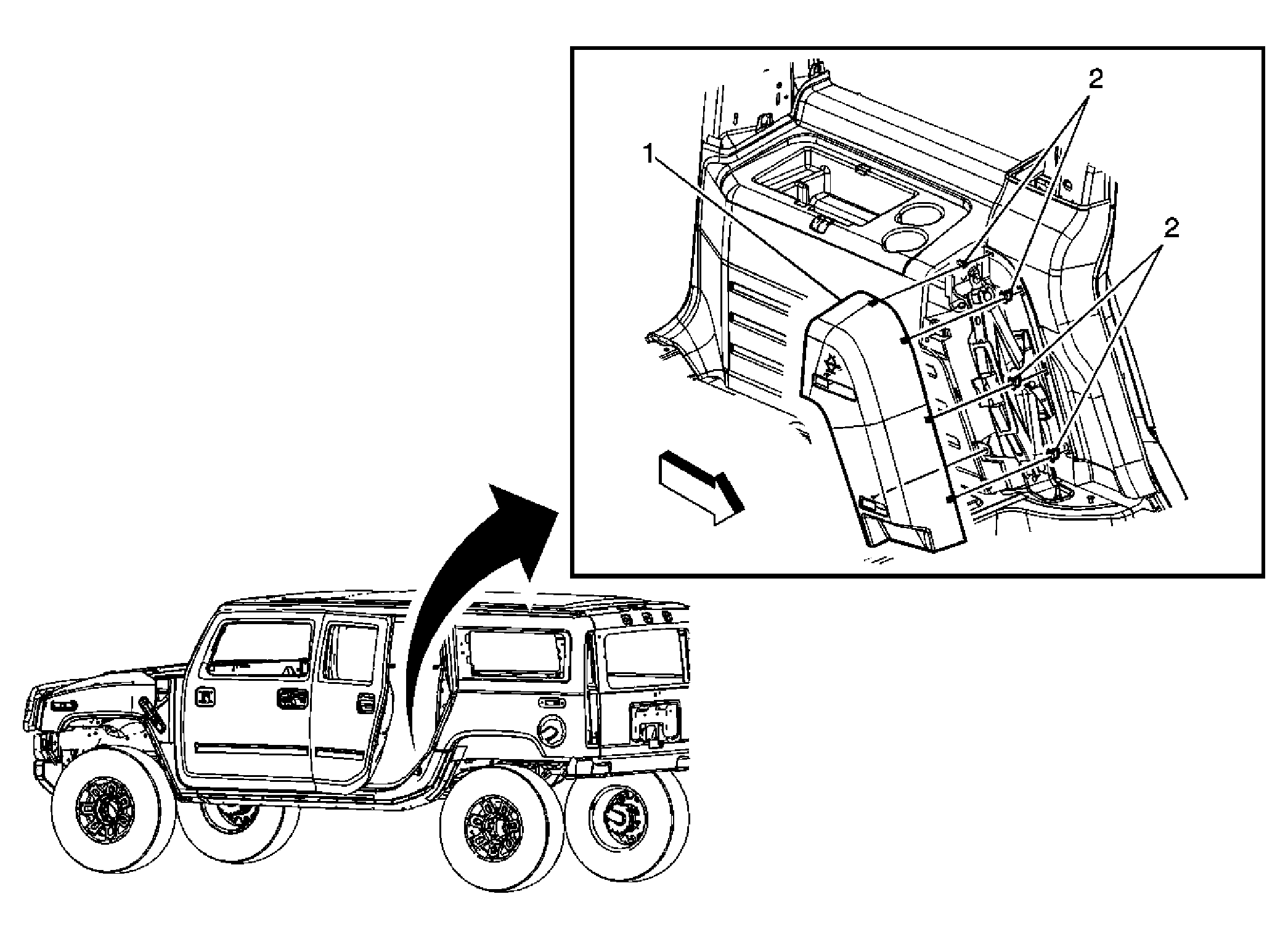

Fig 1: Body Lock Pillar Trim

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Fold down the rear seat.
1	Body Lock Pillar Trim Assembly Procedure Open the top and bottom latches on the front face of the trim assembly. Grasp the trim assembly and pull it outward disengaging the clips securing it to the body side trim panel.
2	Retainer Clips (Qty: 4)

Callout

Component Name

Preliminary Procedure:
Fold down the rear seat.

Body Lock Pillar Trim Assembly

Procedure

Open the top and bottom latches on the front face of the trim assembly.
Grasp the trim assembly and pull it outward disengaging the clips securing it to the body side trim panel.

Retainer Clips (Qty: 4)
