Back Body Opening Garnish Molding Replacement (SUT)

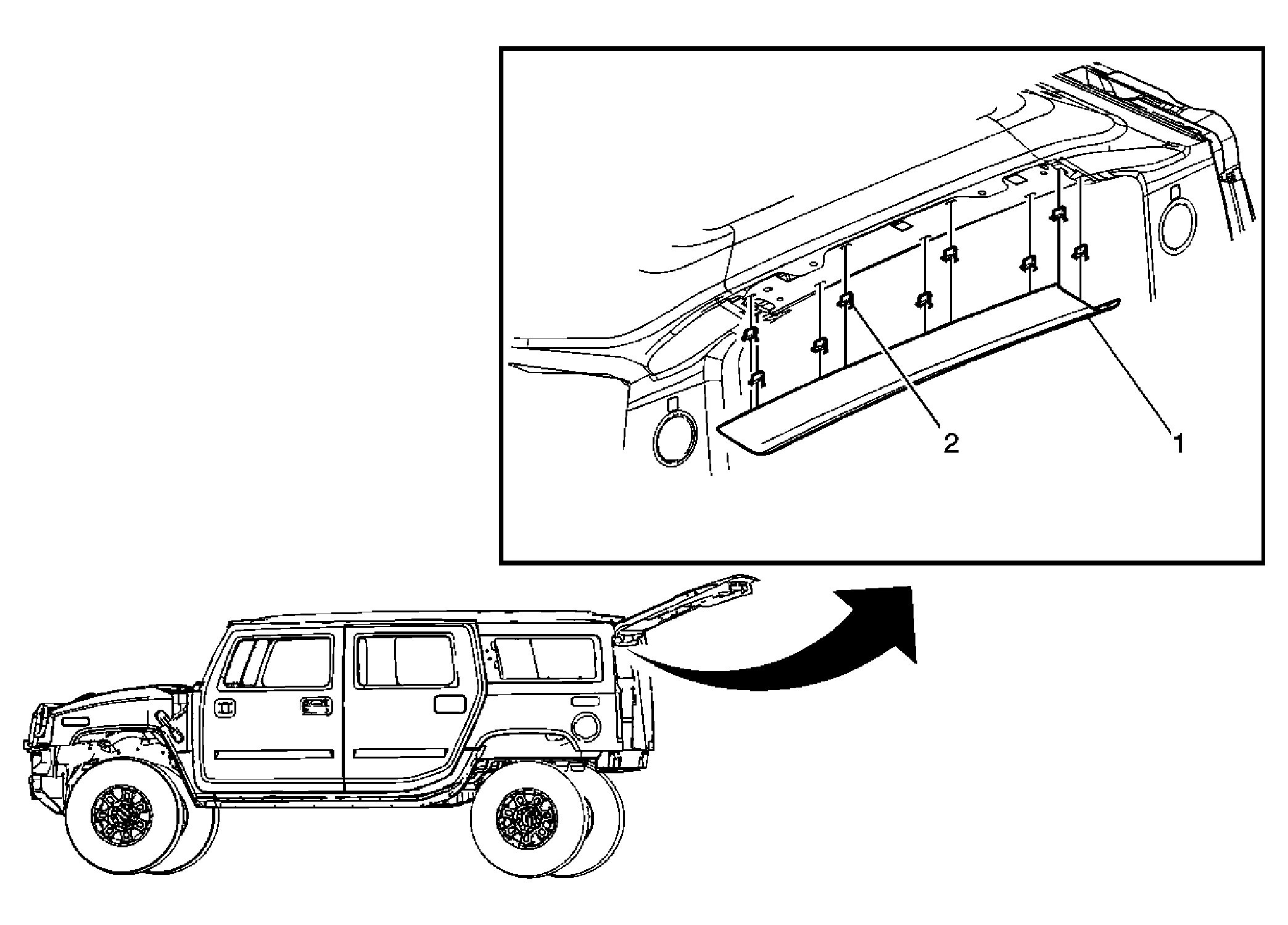

Fig 1: Back Body Opening Garnish Molding (SUT)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Back Body Opening Garnish Molding Procedure: Grasp the back body opening garnish molding and pull downward disengaging the clips securing it to the body.
