Home >> Hummer >> 2008 >> H2 4D Utility Wagon >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior Trim >> Repair Instructions >> Sail Panel Molding Replacement (Left Side) >> Removal Procedure

Removal Procedure

    Fig 1: Bed Rail Protector
    GM1412539Courtesy of GENERAL MOTORS CORP.
  1. Remove the left side cargo box rail. Refer to Cargo Box Rail Replacement .
  2. Remove the left rear cargo box protector. Refer to Cargo Box Side Rail Protector Replacement .
  3. Remove the left rear luggage carrier side end cap. Refer to Luggage Carrier Side Rear Rail Cap Replacement .
  4. Remove the screw securing the left outer sail panel to the rear header garnish molding.
  5. Remove the rear door sealing strip from the pinch-weld flange.
  6. Remove the screw under the left rear quarter opera window.
    7. Fig 2: Outer Sail Panel Molding
    GM1428008Courtesy of GENERAL MOTORS CORP.
  7. Release the adhesive tape securing the forward edge of the outer sail panel molding (2) to the body.
  8. Remove the rear door sealing strip from the pinch-weld flange.
  9. Remove the screw under the left rear quarter opera window.

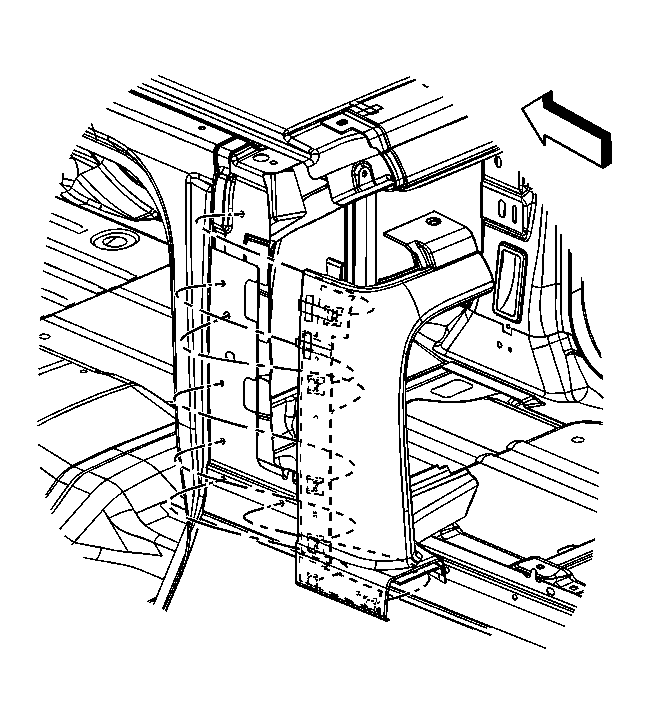

    10. Fig 3: Sail Panel
    GM1412537Courtesy of GENERAL MOTORS CORP.
  10. Release the vertical row of retainers securing the sail panel to the body.
  11. Remove the left outer sail panel from the vehicle.
