Rocker Panel Molding Replacement (w/WS2, BVX)

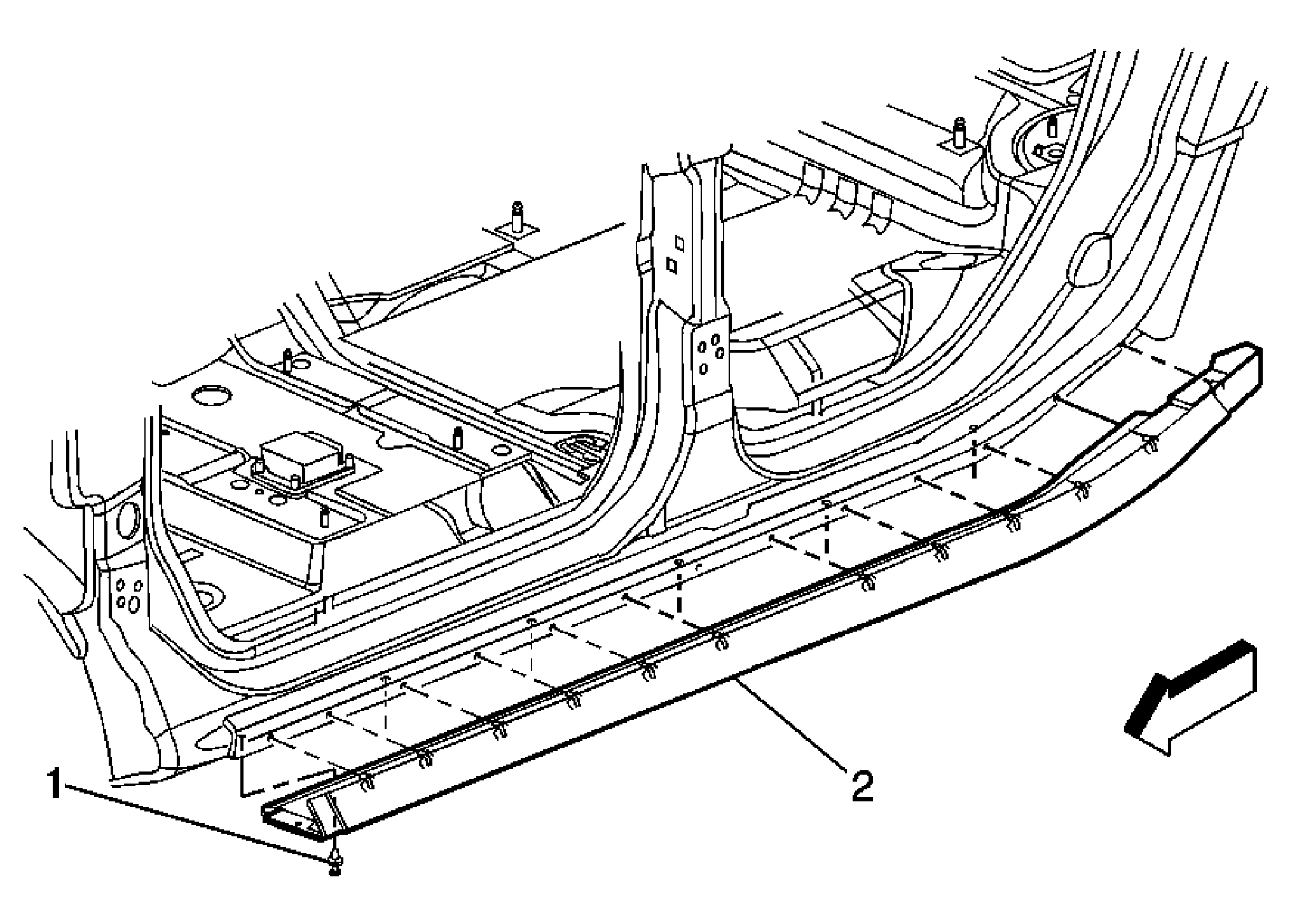

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Open both doors on the side of the vehicle the lower rocker molding is being installed on. |
|
| 1 | Rocker Molding Push Pin Tip: Install the push pin after all of the clips have been secured to the body. |
| 2 | Lower Rocker Molding Tip: Align molding clips to the holes in the rocker and press the molding onto the vehicle. |
