Removal Procedure

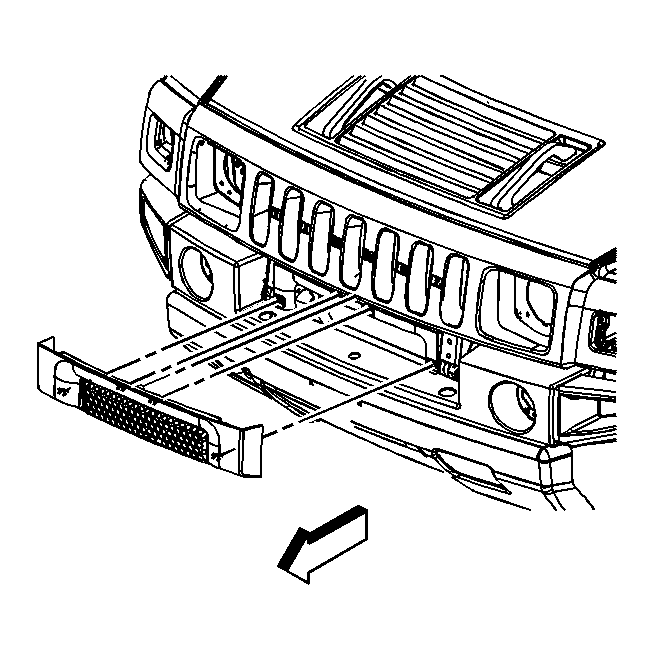

    Fig 1: Lower Hood Grille
    GM826346Courtesy of GENERAL MOTORS CORP.
  1. Apply outward pressure to the grille to disengage the retaining clips.
  2. Remove the lower grille from the vehicle.
