Grille Guard/Brush Guard Replacement (WS2, V3M)

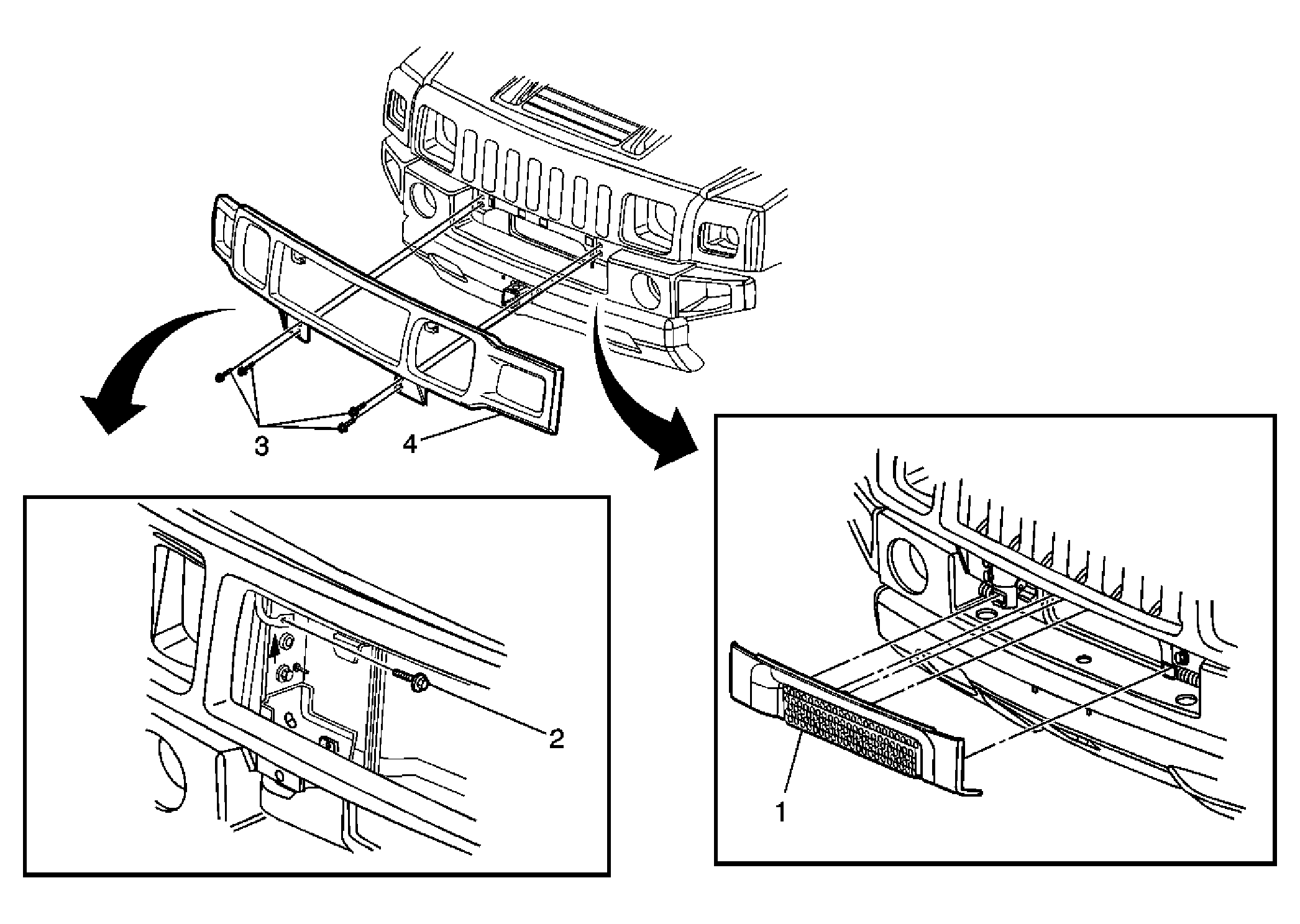

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Open the hood in order to access the lower grille retainers. |
|
| 1 | Lower Grille Tip: Apply outward pressure to the inner grille surface in order to release the inner retaining clips. |
| 2 | Pencil Brace Bolt (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 18 N.m (13.3 lb ft) |
| 3 | Grille/Brush Guard Bolt (Qty: 4) Tighten: 50 N.m (37 lb ft) |
| 4 | Grille/Brush Guard Tip: Use an assistant when installing the grille/brush guard. |
