Front Wheel Opening Flare Replacement (WS2, BVX, Upper)

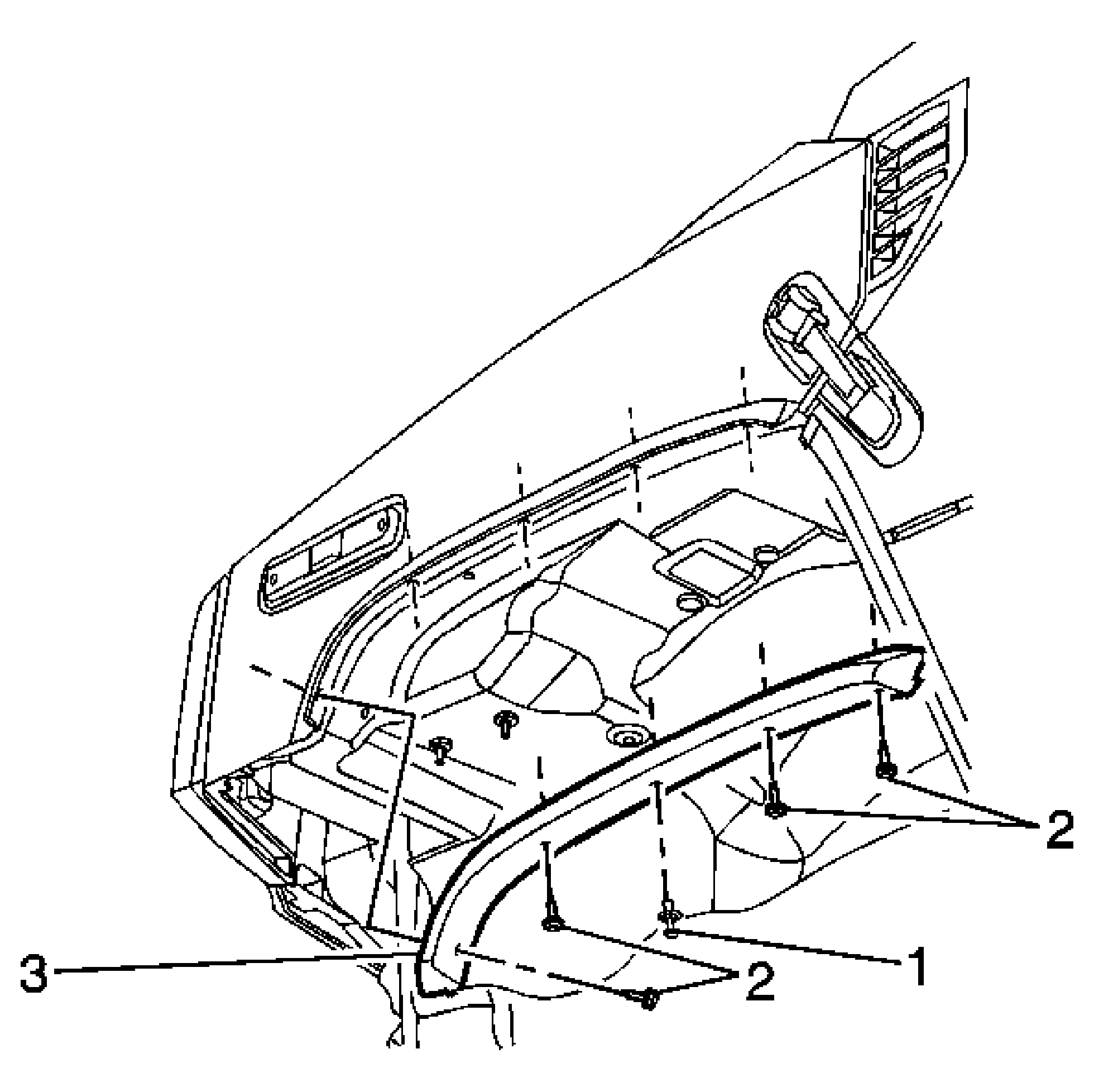

Fig 1: Front Wheel Opening Flare Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open and support the hood for upper wheel flare molding installation. Insert the u-nuts onto the fender retaining holes except for the middle hole.
1	Push Pin Retainer Tip: Position the flare molding to the wheelhouse and install the push pin retainer in order to hold the flare to the wheelhouse.
2	Front Fender Flare Assembly Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tip: Install the screws and finger tighten only. Release the adhesive tape backing from the flare assembly. Using hand pressure, push the flare assembly into the body and secure the screws. Tighten: 1.8 N.m (16 lb in)
3	Front Fender Flare Assembly Tip: Check to ensure the wheel liner does not pucker when securing the screws.
