Front Wheel Opening Flare Replacement (WS2, BVX, Lower)

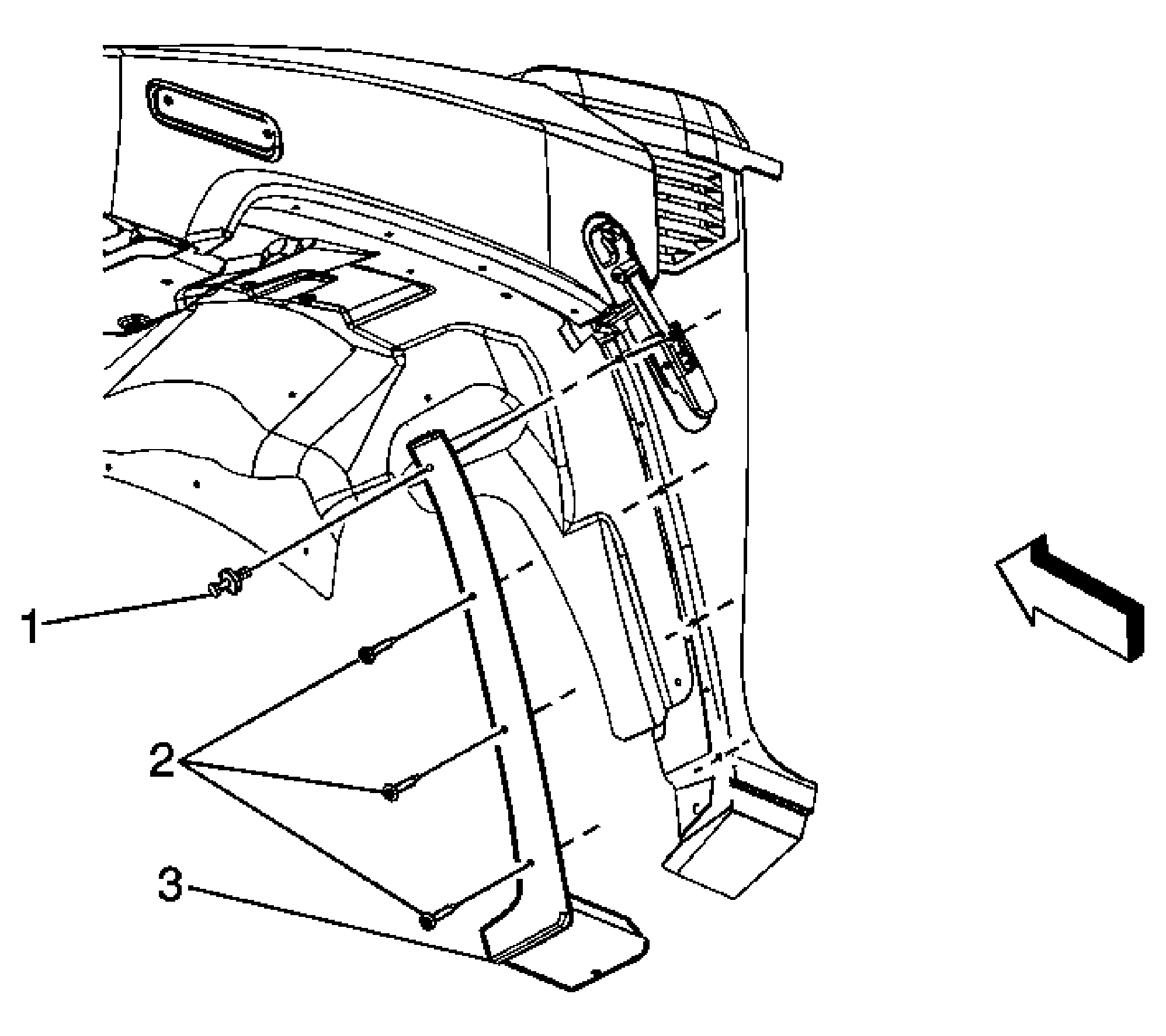

Fig 1: Front Wheel Opening Flare Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fender Lower Flare Assembly Retainer Tip: Install the retainer in order to hold the lower flare assembly into position prior to the screw installation.
2	Front Fender Lower Flare Assembly Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tip: Install the screws and finger tighten only. Release the adhesive tape backing from the lower flare assembly. Using hand pressure, push the lower flare assembly into the body and secure the screws. Tighten: 1.8 N.m (16 lb in)
3	Front Fender Lower Flare Assembly Tip: Install the push pin in the lower flare where it overlaps the front edge of the lower rocker molding and secure.

Callout

Component Name

Front Fender Lower Flare Assembly Retainer
Tip: Install the retainer in order to hold the lower flare assembly into position prior to the screw installation.

Front Fender Lower Flare Assembly Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tip:

Install the screws and finger tighten only.
Release the adhesive tape backing from the lower flare assembly.
Using hand pressure, push the lower flare assembly into the body and secure the screws.

Tighten: 1.8 N.m (16 lb in)

Front Fender Lower Flare Assembly
Tip: Install the push pin in the lower flare where it overlaps the front edge of the lower rocker molding and secure.
