Removal Procedure

  1. Open the spare tire carrier.
  2. Open the endgate.
  3. Cycle the midgate window to the full down/open position.
  4. Open the midgate.
  5. Release the midgate weatherstrip from the front edge of the cargo floor liner.

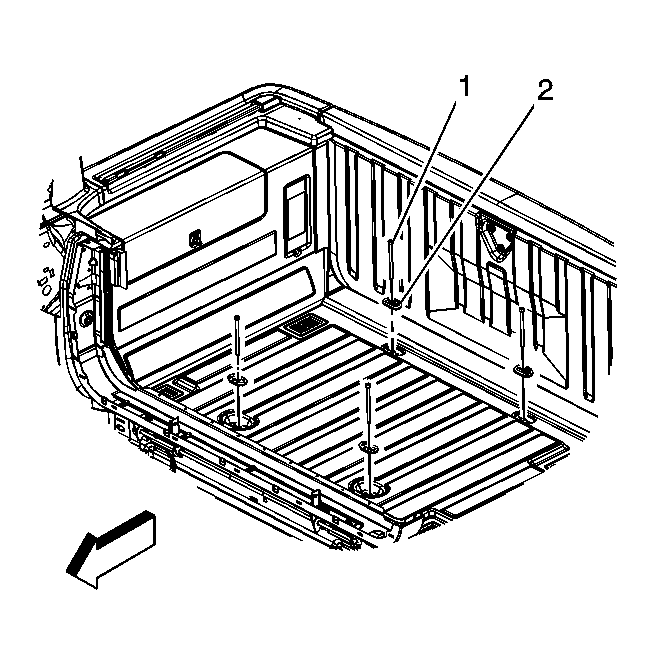

    6. Fig 1: Floor Liner Cargo Tie Down Loops
    GM1412532Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts (1) securing the cargo box loops and liner to the floor.
  7. Remove the cargo liner from the vehicle.
  8. Invert the cargo floor liner.
    9. Fig 2: Floor Liner, Push-In Retainers, Bracket
    GM1427854Courtesy of GENERAL MOTORS CORP.
  9. Remove the push-in retainers (2) from the bracket (3) and discard.
  10. Remove the bracket (3) from the floor liner (1).
