Door Lock/Indicator Schematics

Fig 1: Door Lock Controls and Front Door Locks

GM1961688

Courtesy of GENERAL MOTORS CORP.

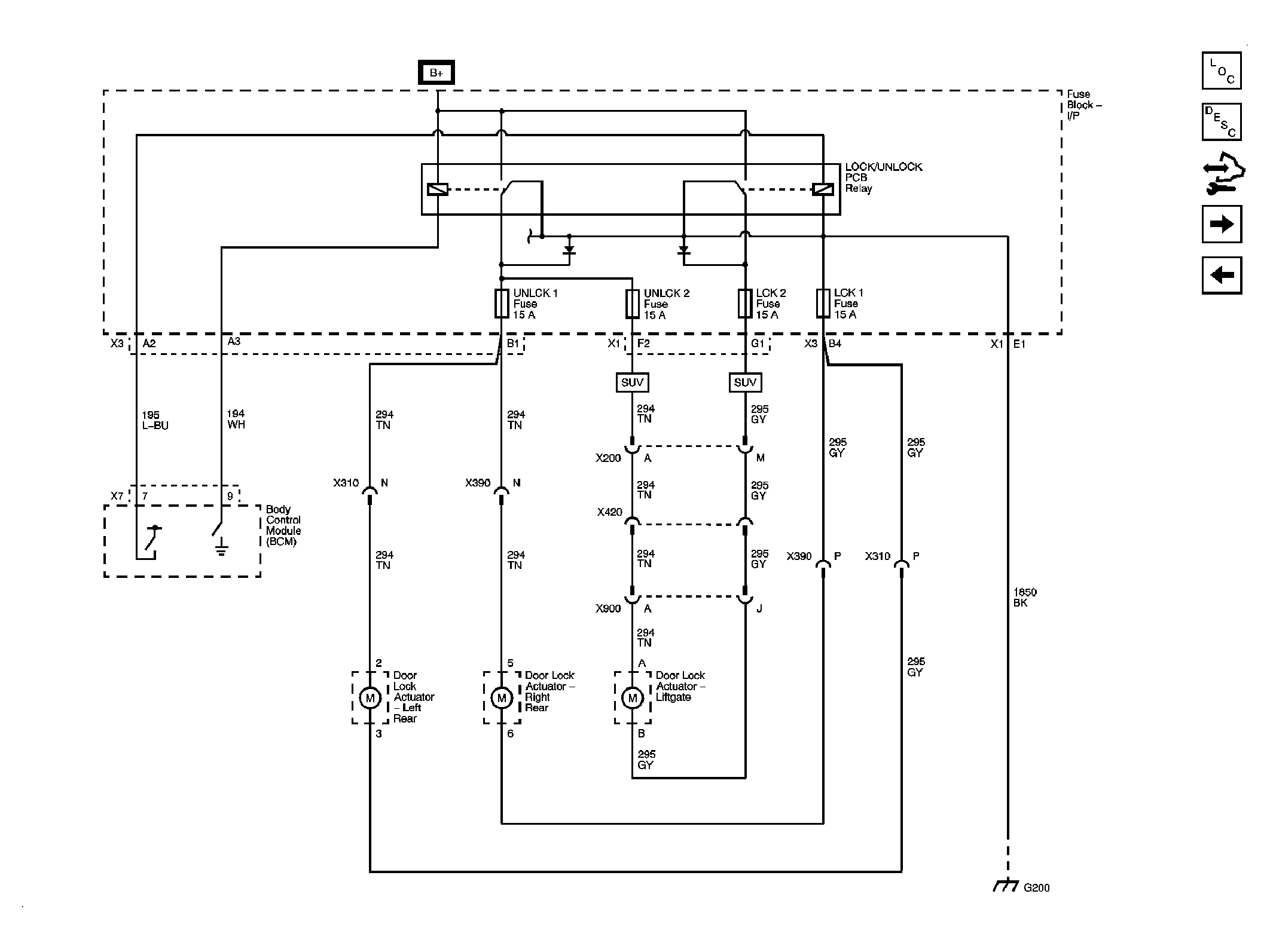

Fig 2: Rear Door and Liftgate Locks

GM1961690

Courtesy of GENERAL MOTORS CORP.
