Door Lock and Side Window Switch Replacement - Passenger Side

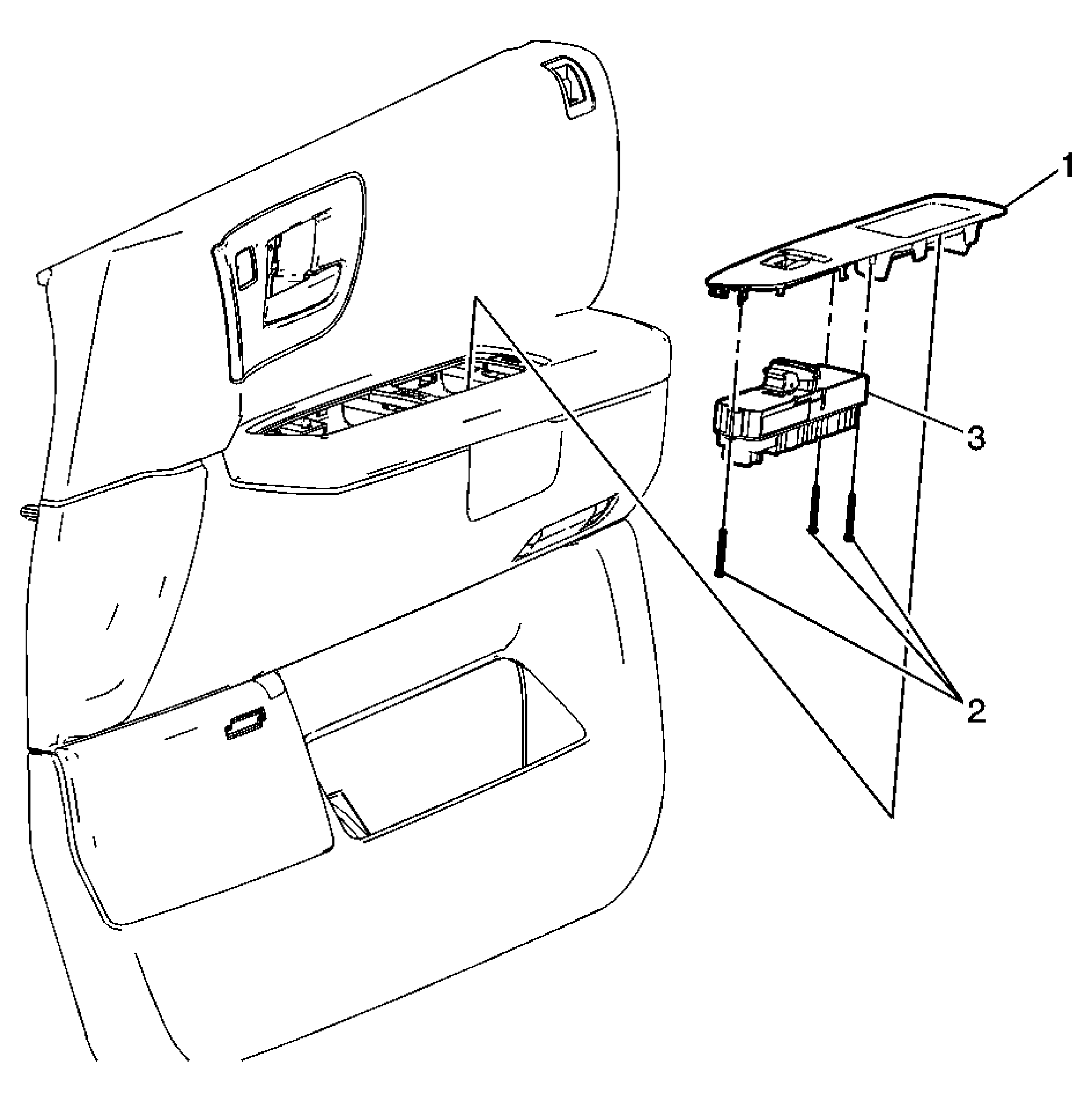

Fig 1: Door Lock and Side Window Switch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door Switch Bezel Procedure Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel. Disconnect the electrical connector. If replacing the switch bezel transfer the switch to the new bezel.
2	Passenger Door Switch Bezel Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Passenger Door Lock and Power Window Switch

Callout

Component Name

Passenger Door Switch Bezel

Procedure

Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel.
Disconnect the electrical connector.
If replacing the switch bezel transfer the switch to the new bezel.

Passenger Door Switch Bezel Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Passenger Door Lock and Power Window Switch
