Door Lock and Side Window Switch Replacement - Driver Side

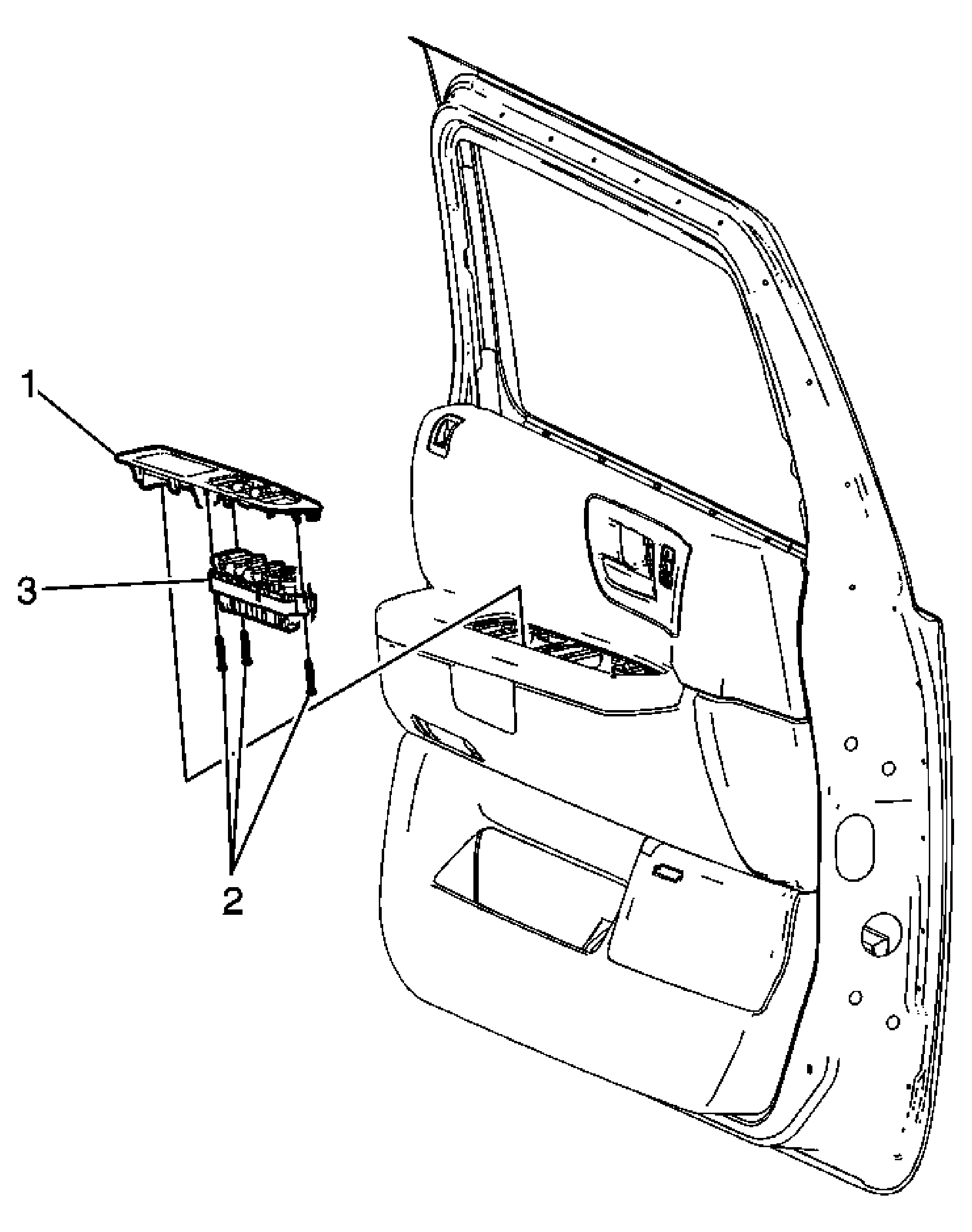

Fig 1: Door Lock and Side Window Switch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door Switch Bezel Procedure Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel. Disconnect the electrical connector. If replacing the switch bezel transfer the switch to the new bezel.
2	Driver Door Switch Bezel Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Driver Door Lock and Power Window Switch

Callout

Component Name

Driver Door Switch Bezel

Procedure

Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel.
Disconnect the electrical connector.
If replacing the switch bezel transfer the switch to the new bezel.

Driver Door Switch Bezel Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Driver Door Lock and Power Window Switch
