Wiper/Washer Schematics

Fig 1: Wiper Controls
GM1961671Courtesy of GENERAL MOTORS CORP.

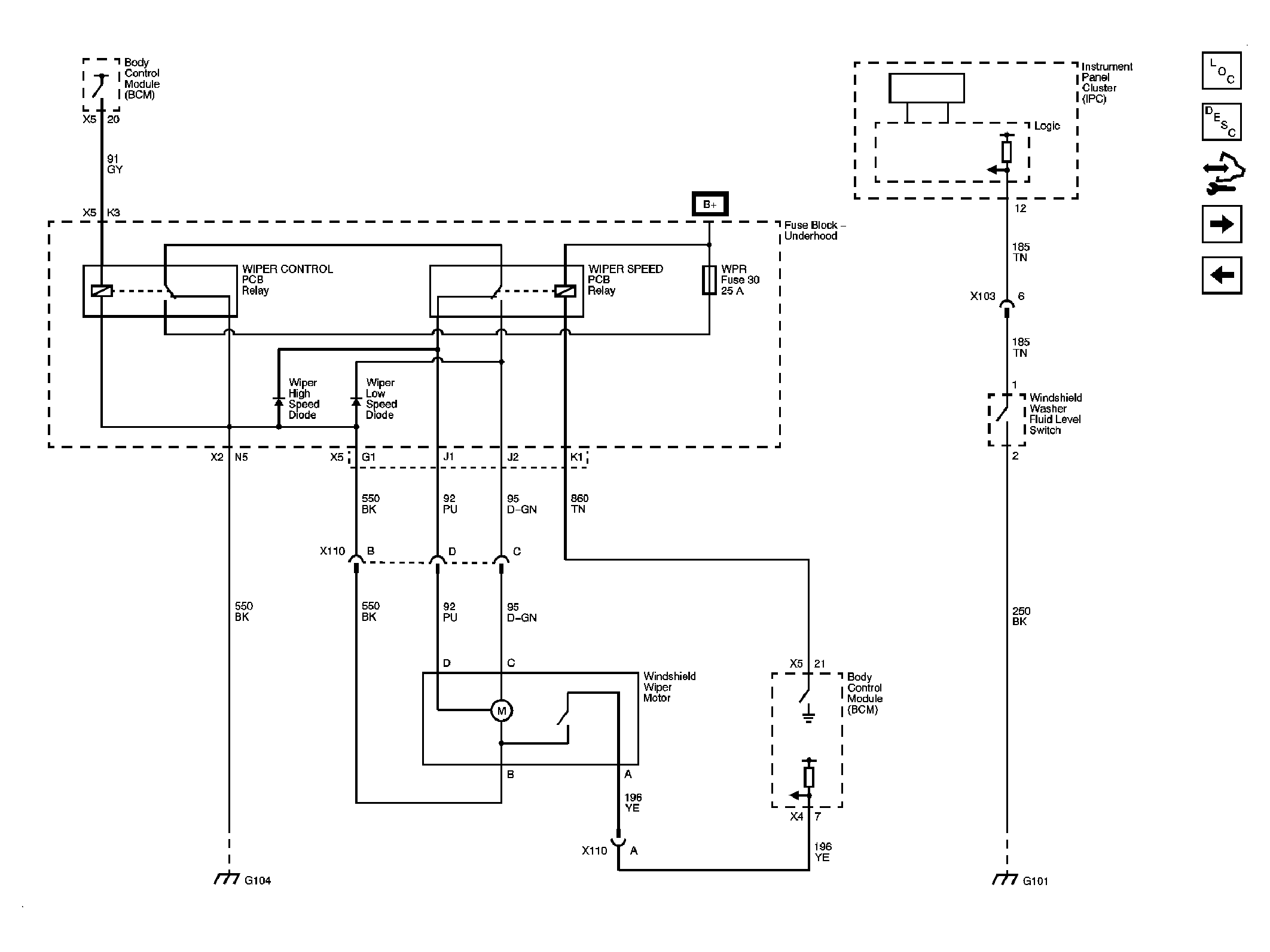

Fig 2: Wiper and Washer Motor Control
GM1961675Courtesy of GENERAL MOTORS CORP.

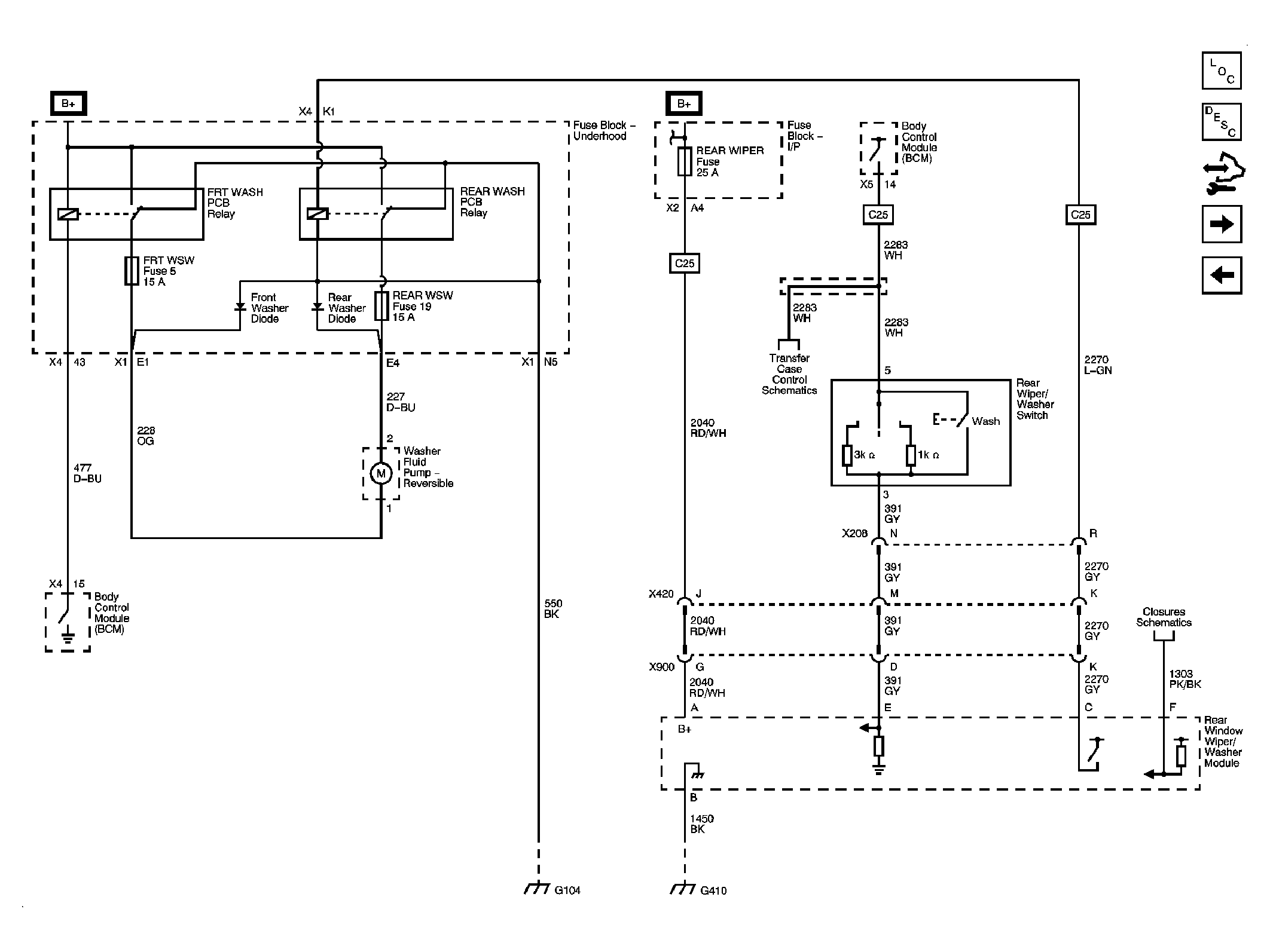

Fig 3: Rear Wiper and Washer
GM1961678Courtesy of GENERAL MOTORS CORP.
Fig 4: Heated Washer
GM1961682Courtesy of GENERAL MOTORS CORP.
