Windshield Wiper Motor Cover Replacement - Front

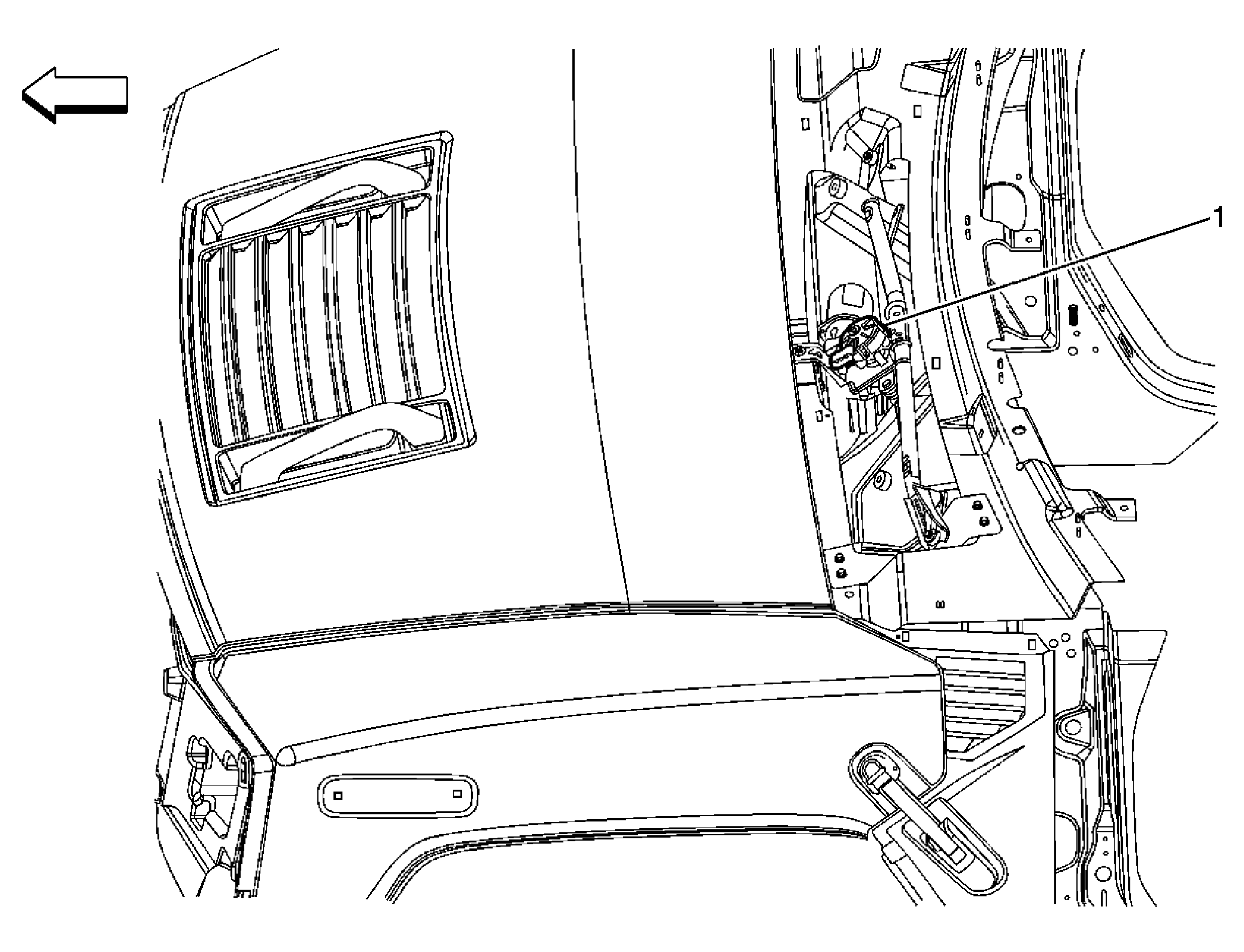

Fig 1: Windshield Wiper Motor Cover Replacement - Front

GM1702780

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Remove the wiper arms. Refer to Windshield Wiper Arm Replacement .
Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement .

1

Windshield Wiper System Module Cover Assembly
Tip:

Disconnect the electrical connector from the cover.
Use a flat bladed tool and release the five retainers that retain the module cover to the motor.
For installation align the tang on the motor and push down to secure the retainers.
