Home >> Hummer >> 2008 >> H2 4D Utility Wagon >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Wipers And Washers >> Repair Instructions >> Rear Window Washer Pump Hose Replacement - Liftgate (Liftgate) >> Installation Procedure

Installation Procedure

    Fig 1: Rear Wiper Motor
    GM1453829Courtesy of GENERAL MOTORS CORP.
  1. Position the washer hose (1) to the liftgate (2).
  2. Secure the washer hose to the washer nozzle (5).

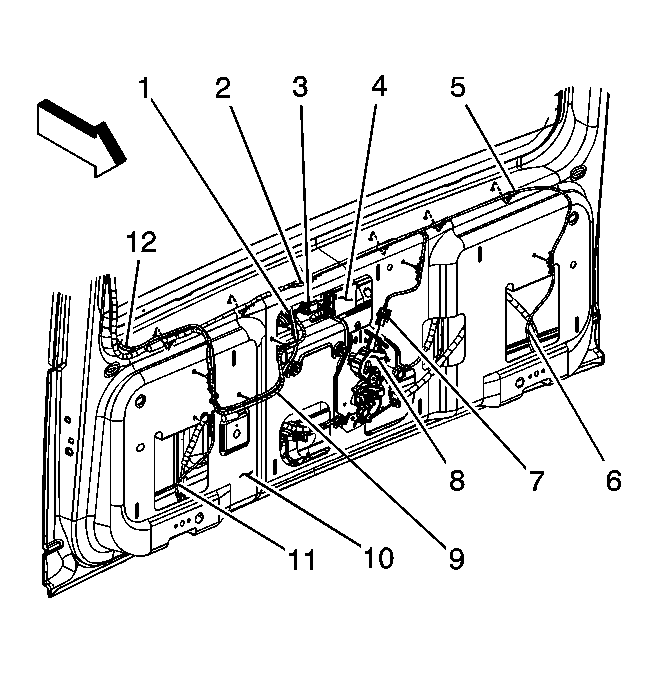

    3. Fig 2: Identifying Liftgate Components
    GM1453836Courtesy of GENERAL MOTORS CORP.
  3. Secure the washer hose to the electrical harness (9).
  4. At the right side of the liftgate, secure the washer hose (12) to the washer nozzle hose (1).
    5. Fig 3: Liftgate Trim Panel
    GM833482Courtesy of GENERAL MOTORS CORP.
  5. Install the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (SUV) .
