Removal Procedure

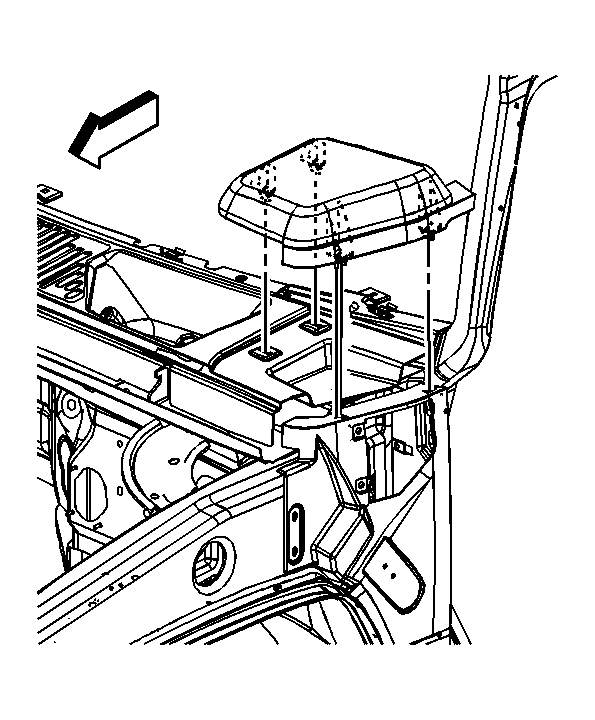

    Fig 1: Air Inlet Grille Panel
    GM825299Courtesy of GENERAL MOTORS CORP.
  1. Release the retainer clips on the air inlet grill panel from the vehicle by applying upward pressure to the panel.
  2. Remove the air inlet grille panel from the vehicle.
