Interior Lights Schematics

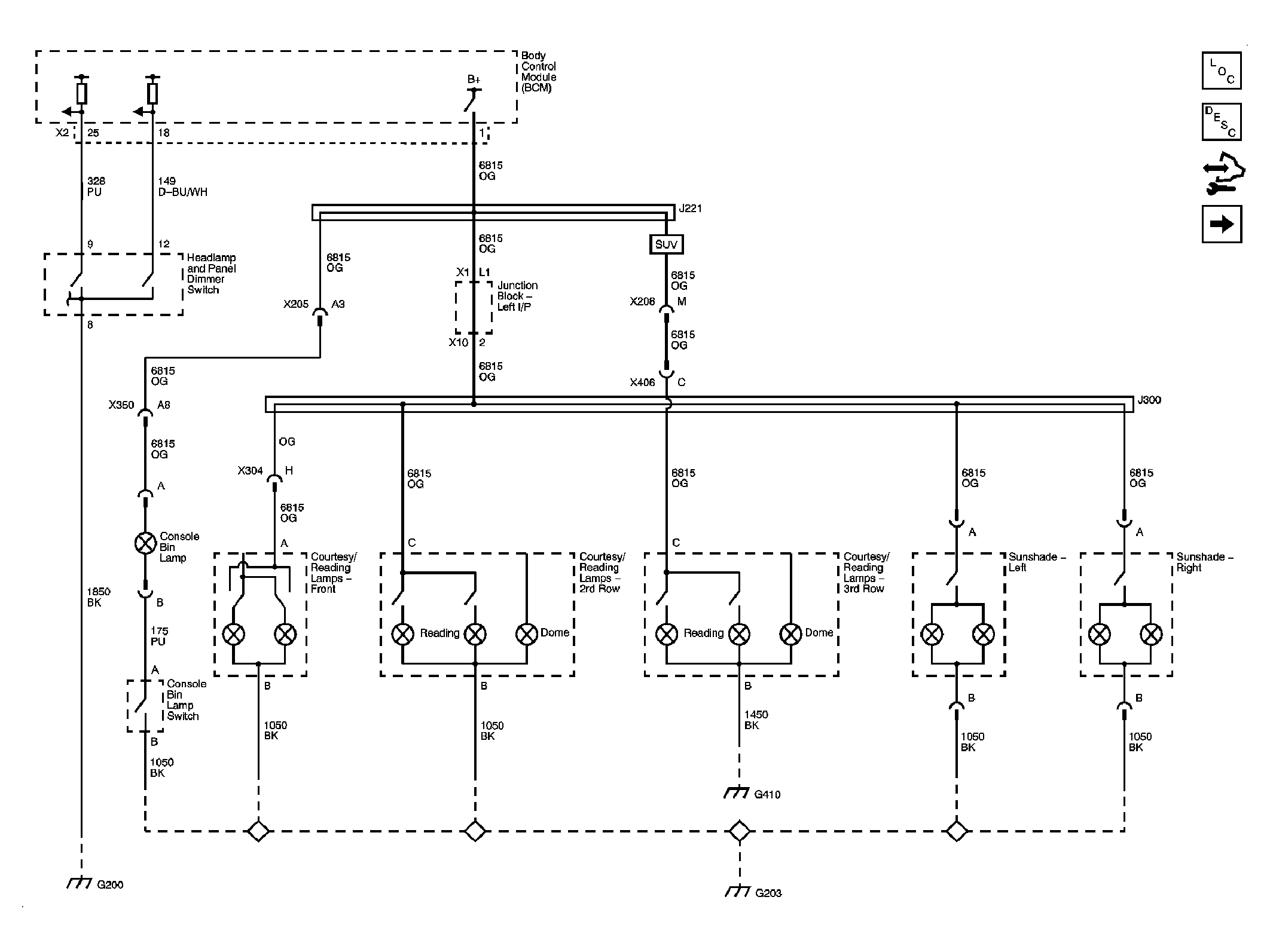

Fig 1: Inadvertent Lamp Control
GM1961332Courtesy of GENERAL MOTORS CORP.

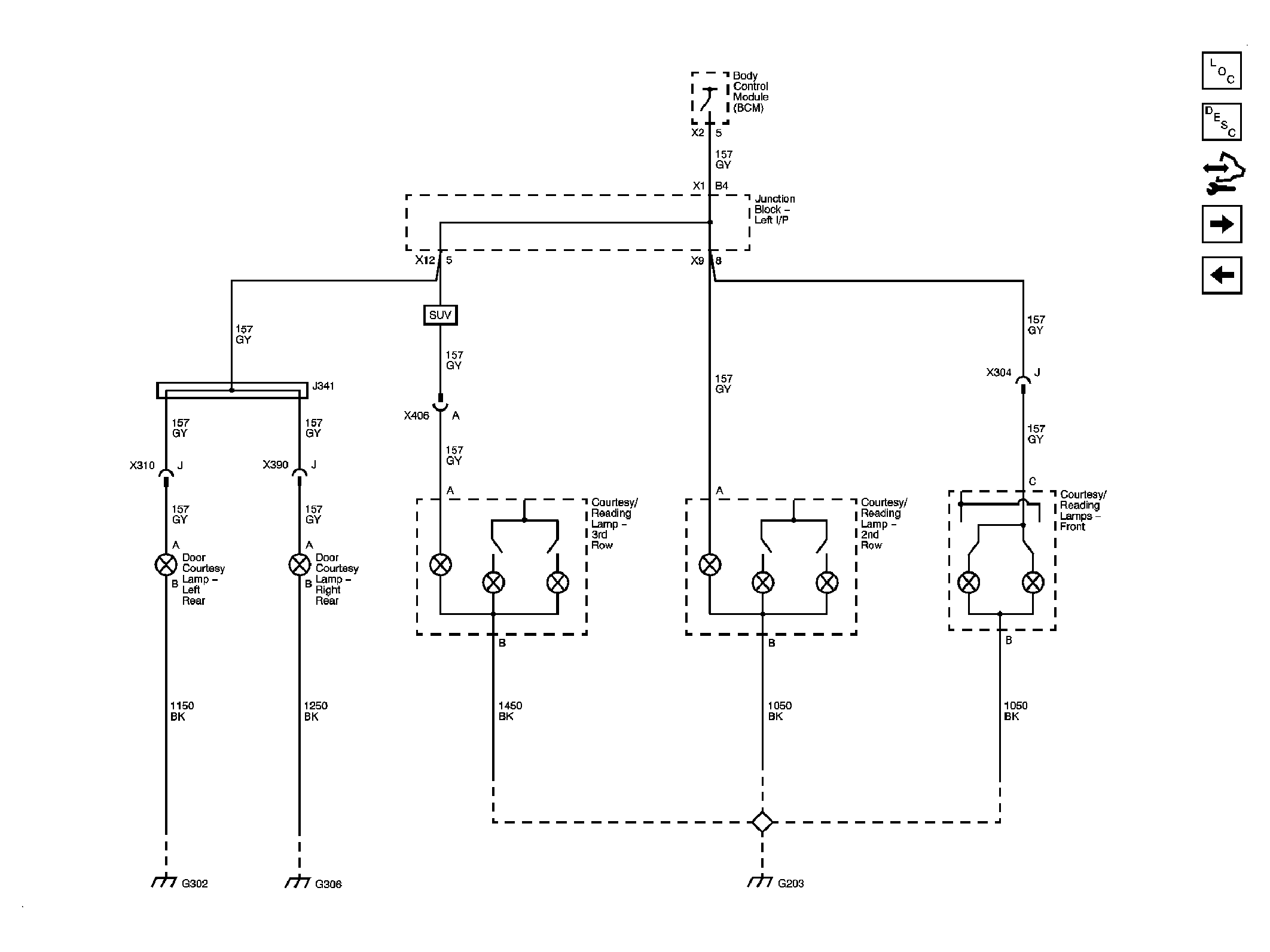

Fig 2: Courtesy Lamp Control
GM1961338Courtesy of GENERAL MOTORS CORP.

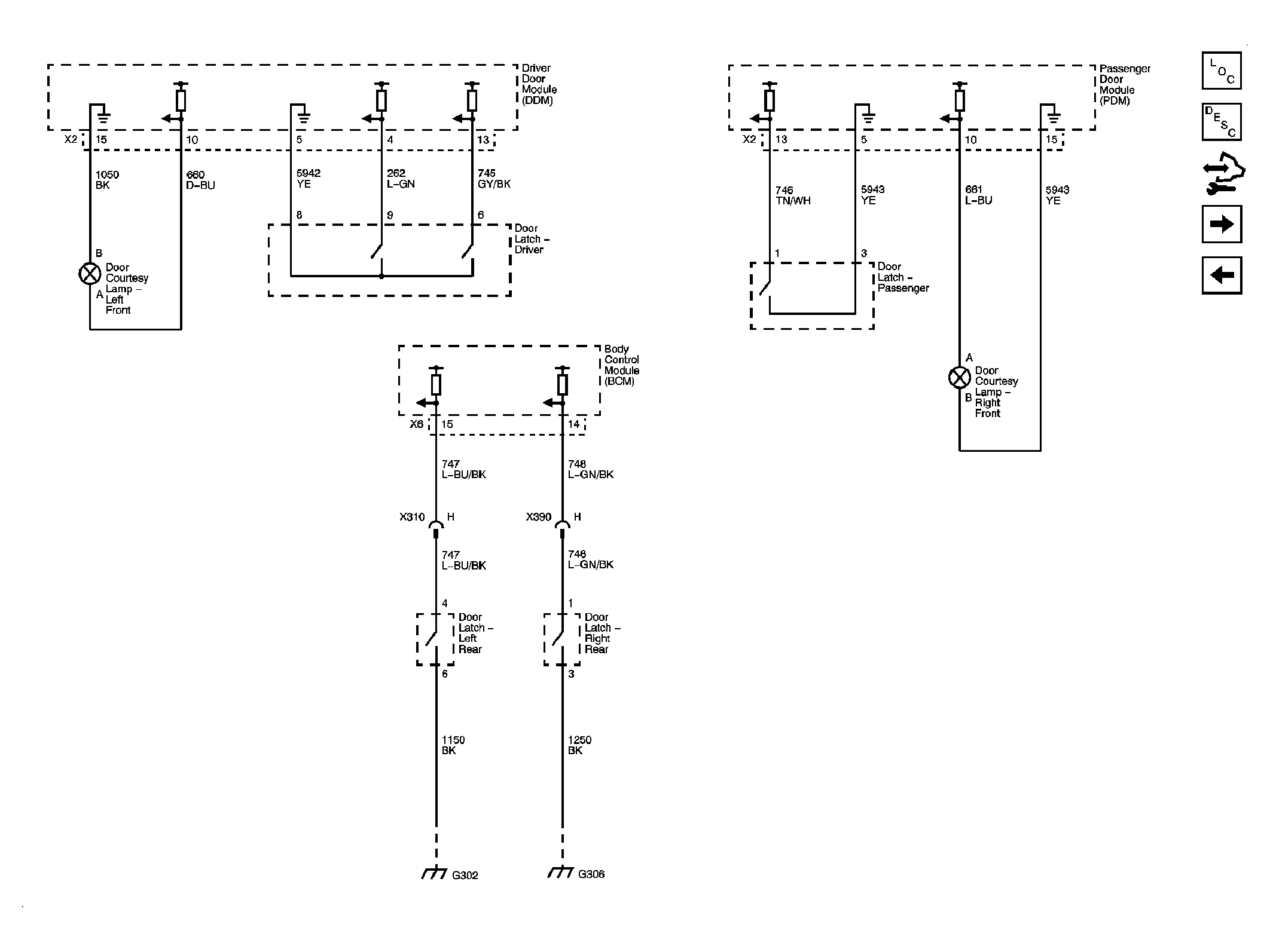

Fig 3: Door Jamb Switches
GM1961342Courtesy of GENERAL MOTORS CORP.
